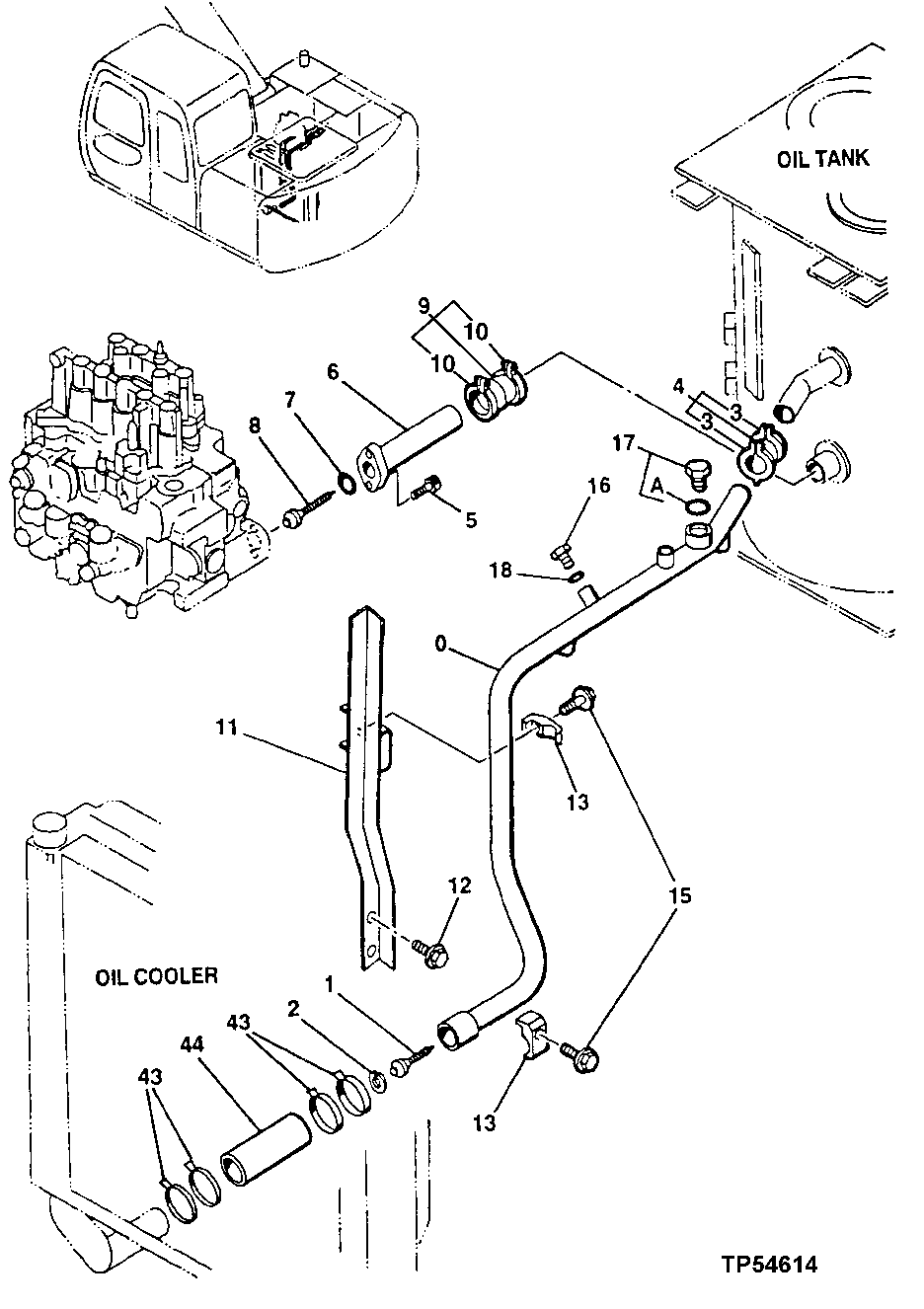

Запчасти John Deere 20 307 - RETURN PIPINGS 3360 HYDRAULIC SYSTEM

0

AP33430

Pipe

1шт.

1

4276584

Flow Control Hyd. Valve

SUB FOR AT154331

1шт.

2

40M7225

Snap Ring

1шт.

3

4071213

Coupling

SUB FOR TH106965 4196258 AND FXV00000005

2шт.

4

4071213

Coupling

SUB FOR TH101923 AND FXV00000005

1шт.

5

L159272

Screw

SUB FOR AT213615 OR L159272

2шт.

6

8064356

Line

SUB FOR AP33538

1шт.

7

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") SUB FOR TH102992

1шт.

8

4266481

Flow Control Hyd. Valve

SUB FOR AT154301

1шт.

9

4069801

Coupling

SUB FOR TH101915, 4712341 AND 4196259

1шт.

10

4196259

Seal

NLA, ORDER 4069801) (SUB FOR TH106966

2шт.

11

AP34524

Support

1шт.

12

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

13

4190127

Clamp

SUB FOR TH108313

2шт.

15

19M7753

Cap Screw

M12 X 70

2шт.

12H301

Lock Washer

1/2"

2шт.

16

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

1шт.

17

4174542

Drain Plug

SUB FOR TH110478

1шт.

17A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

18

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

43

AT54837

Clamp

4шт.

44

P60796

Hose

1шт.
