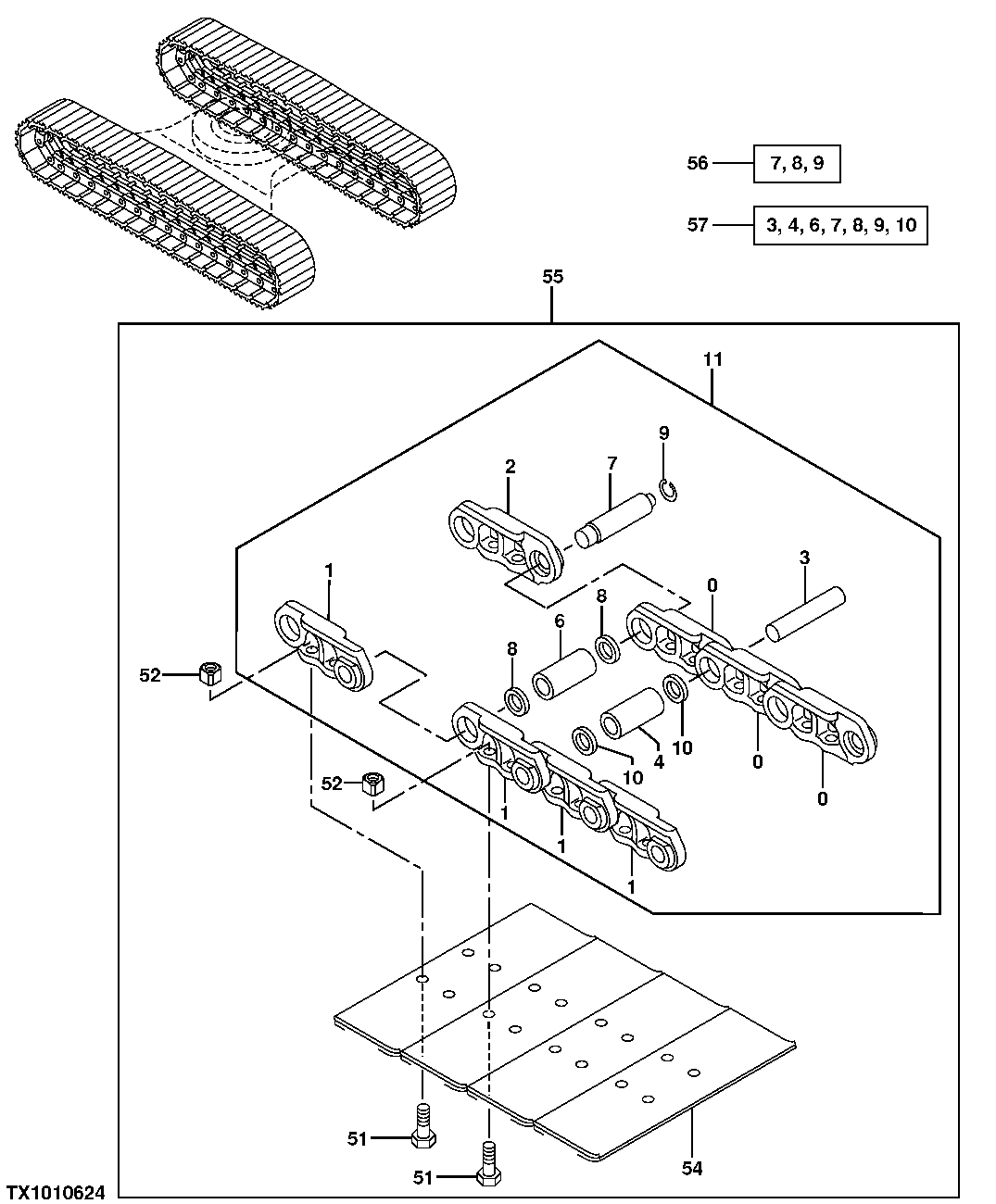

Запчасти John Deere 20 18 - REPLACEMENT TRACK CHAIN ASSEMBLY AND SHOES 0130 Track Systems

0

T212009

Strutted LINK-RH

43шт.

1

T212015

Track Link

44шт.

2

T212029

Master Track LINK-RH

1шт.

3

T212040

Track Pin

43шт.

4

T212042

Track Bushing

43шт.

6

T212043

Master Track Bushing

1шт.

7

T212044

Master Track Pin

1шт.

8

T212045

Spacer

2шт.

9

T212046

Snap Ring

1шт.

10

T212048

Seal

86шт.

11

AT316036

Track Chain W/O Shoes

1шт.

51

T212050

Track Bolt

176шт.

52

T212051

Nut

176шт.

54

T212011

Open Center 3 Bar Shoe

(600 MM)

44шт.

T212012

Open Center 3 Bar Shoe

(700 MM)

44шт.

4405321

Flat Shoe

(500 MM RUBBER PADS)

44шт.

2034772

Single Bar Shoe

(610 MM)

44шт.

55

Track Assembly With Shoes

AT316037 NLA, (600 MM SHOES) (WHOLEGOODS)

1шт.

56

Kit

( AT185795 NO LONGER AVAILABLE)

1шт.

57

AT324665

Pin & Bushing Kit

(PIN KIT FOR 41 LINK CHAIN) (ALSO ORDER (3) T212040, (3) T212042 AND (6) T212048)

1шт.
