Запчасти John Deere 20 292 - Pilot Valve 3315 Control Linkage

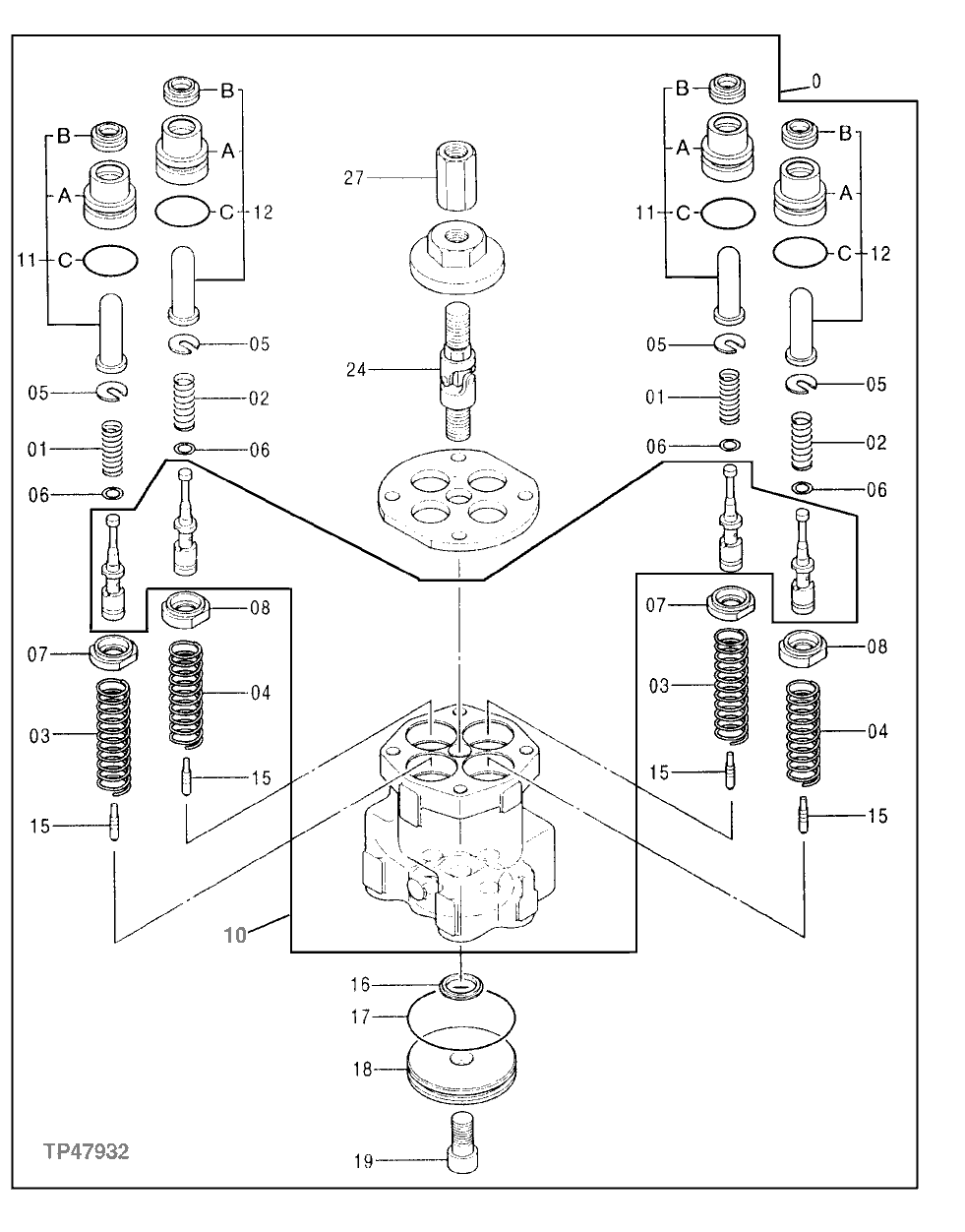

Схема запчастей John Deere 20 - 292 - Pilot Valve 3315 Control Linkage

Артикул

Название

Примечание

Количество

0

9156582

Valve

NLA (ORDER 9156582EX)

1шт.

9156582EX

Hyd/Pilot Cntl Valve Reman

(USE AT214396 IF AVAILABLE) (FRONT AND SWING) (REMAN FOR 9156582) (SU B FOR AT214396 ) (SUB FOR AT189844)

2шт.

1

4201915

Spring

(SUB FOR TH109212)

2шт.

2

4166686

Compression Spring

(SUB FOR TH109213)

2шт.

3

4195421

Compression Spring

(SUB FOR TH109214)

2шт.

4

4379022

Compression Spring

(SUB FOR AT215558)

2шт.

5

4177777

Spacer

(SUB FOR AT154411 ) (SUB FOR TH109216)

4шт.

6

4173208

Shim

(SUB FOR TH109217)

20шт.

7

4177896

Guide

(SUB FOR TH109218)

2шт.

8

4179257

Guide

(SUB FOR AT154412 ) (SUB FOR TH109219)

2шт.

10

Housing

(SUB FOR AT214342)( 7031409 NLA)

1шт.

11

9101513

Cap

(SUB FOR AT154538)

2шт.

11A

Bushing

(NOT AVAILABLE FOR SERVICE)

1шт.

11B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

11C

U46166

O-Ring

24.400 X 3.100 mm (0.961" X 0.122")

1шт.

12

9108066

Cap

(SUB FOR AT154540)

2шт.

12A

Bushing

(NOT AVAILABLE FOR SERVICE)

1шт.

12B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

12C

U46166

O-Ring

24.400 X 3.100 mm (0.961" X 0.122")

1шт.

15

4184929

Piston

(SUB FOR TH109228)

4шт.

16

4286874

Sealing Washer

(SUB FOR AT155701)

1шт.

17

CH11571

Packing

1шт.

18

4184954

Plate

(SUB FOR TH109229)

1шт.

19

19M8168

Screw

M12 X 25

1шт.

24

4285209

Universal Joint

(SUB FOR TH109230)

1шт.

27

4182067

Jointer

(SUB FOR TH109232)

1шт.

Выбрано товаров: 26
