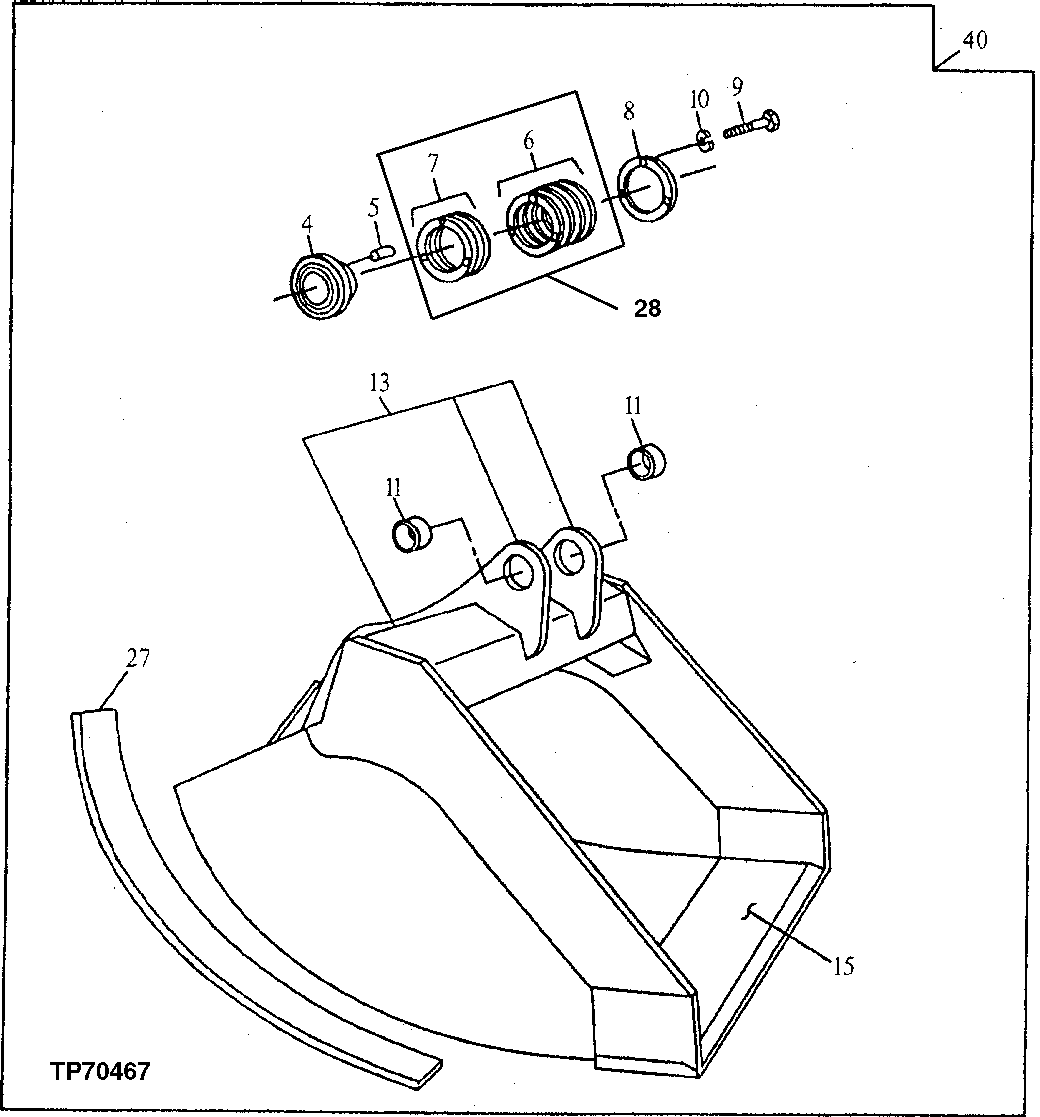

Запчасти John Deere 20 283 - Bucket (Ditch Cleaning) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

3028363

Bushing

(SUB FOR TH100346)

1шт.

5

4179109

Pin

(SUB FOR TH103619)

1шт.

6

Washer

(SUB AT146242)(K2) ( TH10 0348 NO LONGER AVAILABLE)

7шт.

7

Shim

(SUB AT146242)(K2) ( TH10 0349 NO LONGER AVAILABLE)

3шт.

8

Spacer

( TH100347 NLA)

1шт.

9

19M7404

Cap Screw

M14 X 40

3шт.

10

12H317

Lock Washer

9/16"

3шт.

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131089 BULK MATERIAL)

1шт.

27

300292

Bar

(F) (WEAR STRIP)

4шт.

28

AT146242

Shim Kit

INCLUDES ALL (K2) PARTS

1шт.

40

Excavator Bucket

(F) ( AT131360 NLA) (4 8 INCH - .67 CUBIC YARD)

1шт.

Excavator Bucket

(F) (SUB AT332665)( AT131361 NLA) (60 INCH - .90 CUBIC YARD)

1шт.
