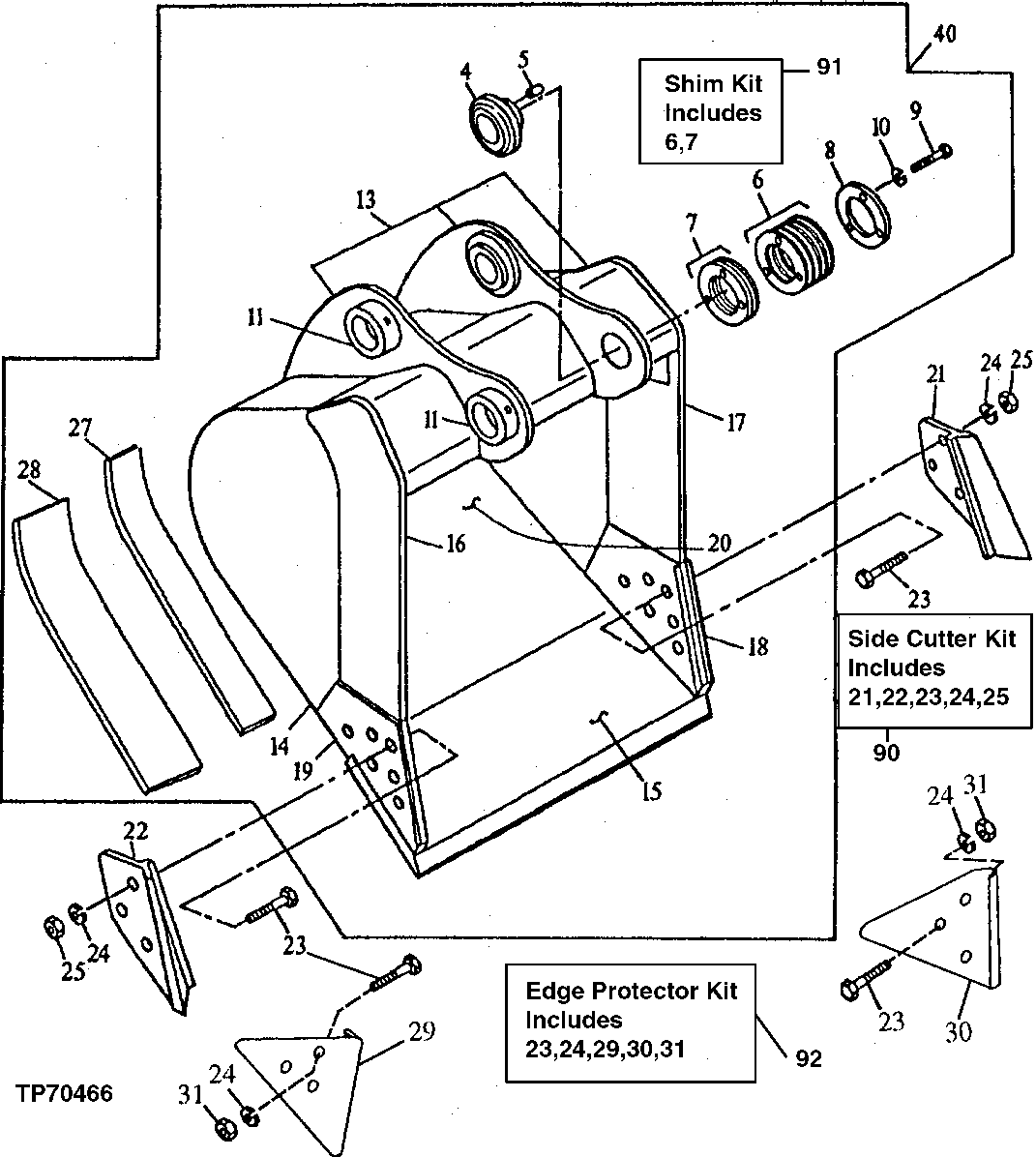

Запчасти John Deere 20 277 - Bucket (General Purpose) (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

21

Cutting Edge

(K) (SUB AT131080)

1шт.

22

Cutting Edge

(K) (SUB AT131080)

1шт.

23

09H1770

Bolt

(K) 7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

(K) 7/8"

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

304966

Bar

(F) (INNER WEAR)

1шт.

28

306618

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(SUB AT167874)(K3) (WEAR SHROUD)

1шт.

30

Shroud

(SUB AT167874)(K3) (WEAR SHROUD)

1шт.

31

14H1044

Nut

7/8" (K3)

6шт.

40

Excavator Bucket

( AT163568 NLA) (18 INCH - .34 CUBIC YARD) ( AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332657)( AT163569 NLA) (24 INCH - .50 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )

1шт.

Excavator Bucket

(SUB AT332658)( AT163570 NLA) (30 INCH - .64 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )

1шт.

Excavator Bucket

(SUB AT332659)( AT163571 NLA) (36 INCH - .78 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )

1шт.

Excavator Bucket

( AT163573 NLA) WHOLEGOODS (42 I NCH - .79 CUBIC YARD) (AVAILABLE T OOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332660)( AT163574 NLA) (42 INCH - .92 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE )

1шт.

Excavator Bucket

( AT163575 NLA) (48 INCH - 1.06 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

90

Kit

INCLUDES ALL (K1) PARTS ( AT131080 NLA)

1шт.

91

AT146242

Shim Kit

INCLUDES ALL (K2) PARTS

1шт.

92

Kit

( AT167874 NLA) INCLUDES ALL ( K3) PARTS (EDGE PROTECTOR KIT)

1шт.
