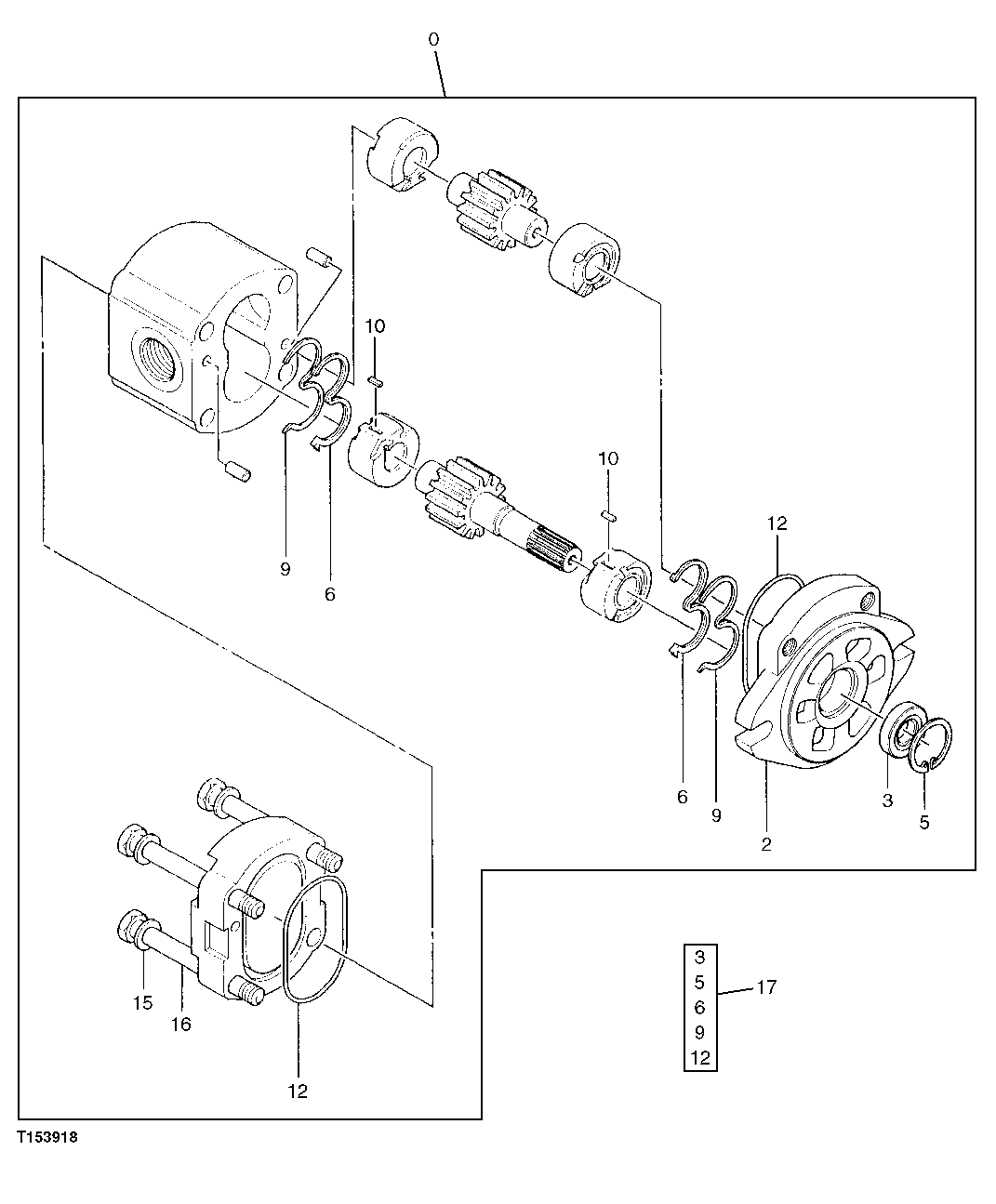

Запчасти John Deere 20 271 - PUMP GEAR 2160 Vehicle Hydraulics

0

4276918

Pump

SUB FOR AT202122

1шт.

2

Flange

SUB FOR AT203653, 2050209 NLA

1шт.

3

0408202

Seal

(A) SUB FOR AT153880

1шт.

5

Snap Ring

(A) AT153833 NOT AVAILABL E AS INDIVIDUAL SERVICE PART

1шт.

6

Seal

(A) AT153881 NOT AVAILABL E AS INDIVIDUAL SERVICE PART

2шт.

9

Back-Up Ring

(A) AT153834 NOT AVAILABL E AS INDIVIDUAL SERVICE PART

2шт.

10

4484119

Key

SUB FOR AT153838

2шт.

12

4488720

O-Ring

(A) SUB FOR 4206163, TH10 9922, 0354608 OR TH0354608

2шт.

15

AT153837

Washer

10.400 X 18 X 2 mm (0. 409" X 0.709" X 0.079")

4шт.

16

19M7668

Cap Screw

M10 X 100 SUB FOR AT153882, SUB FOR 0408204

4шт.

17

0408207

Seal Kit

INCLUDES ALL PARTS MARK ED (A) SUB FOR AT153885

1шт.
