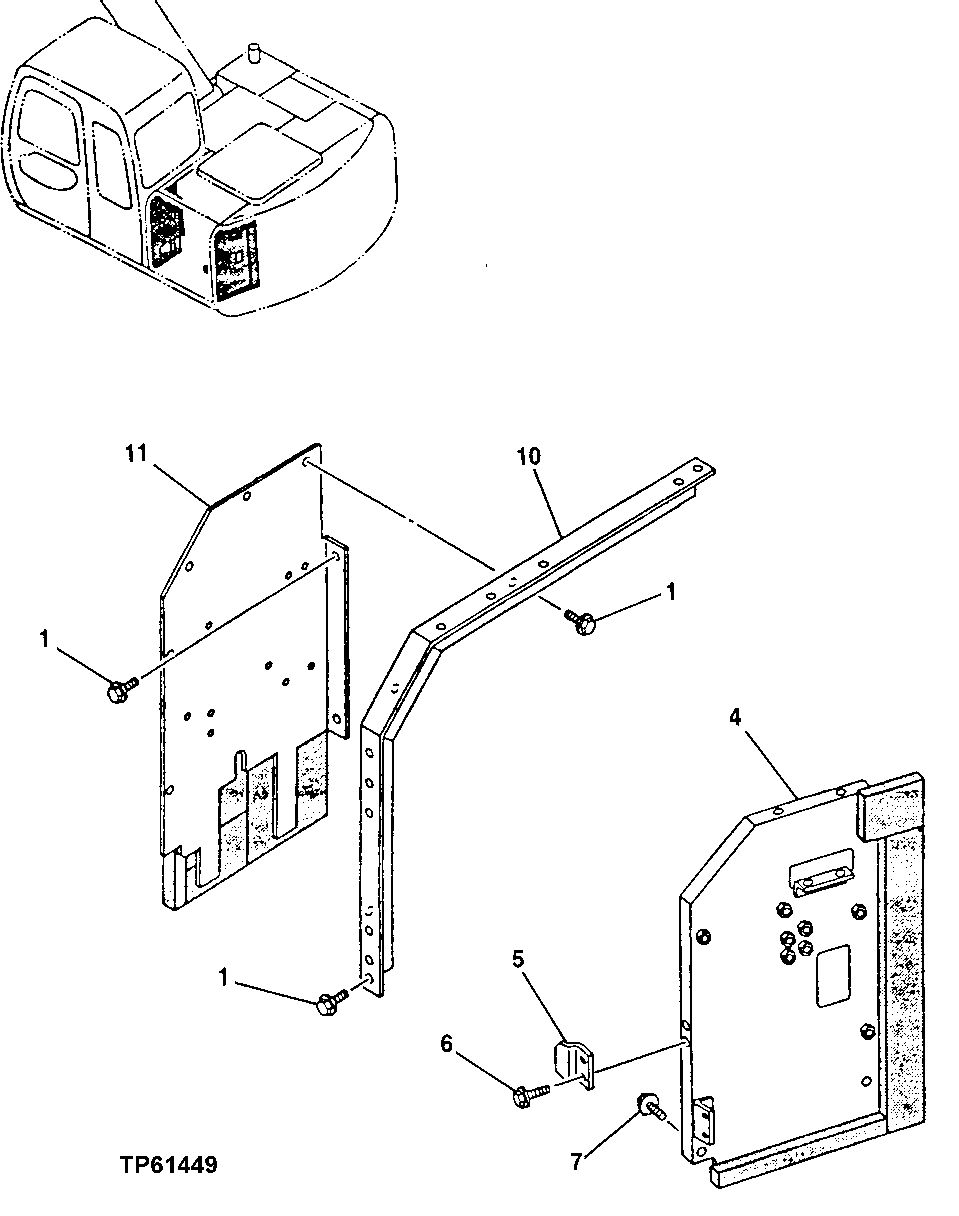

Запчасти John Deere 20 254 - Cover 1910 Hood Or Engine Enclosure

1

19M7402

Cap Screw

M10 X 25

9шт.

24M7028

Washer

10.500 X 20 X 2 mm

9шт.

12M7066

Lock Washer

10 mm

9шт.

4

AP34531

Cover

(SUB FOR AP34866)

1шт.

5

4259298

Stop

(SUB FOR AT154936)

1шт.

6

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7101

Washer

11 X 34 X 3 mm

2шт.

7

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

TH7031042

Support

(SUB FOR AP33516)

1шт.

11

TH7031045

Cover

(SUB FOR AP34867)

1шт.
