Запчасти John Deere 20 243 - Cab Heater 1830 HEATING AND AIR CONDITIONING

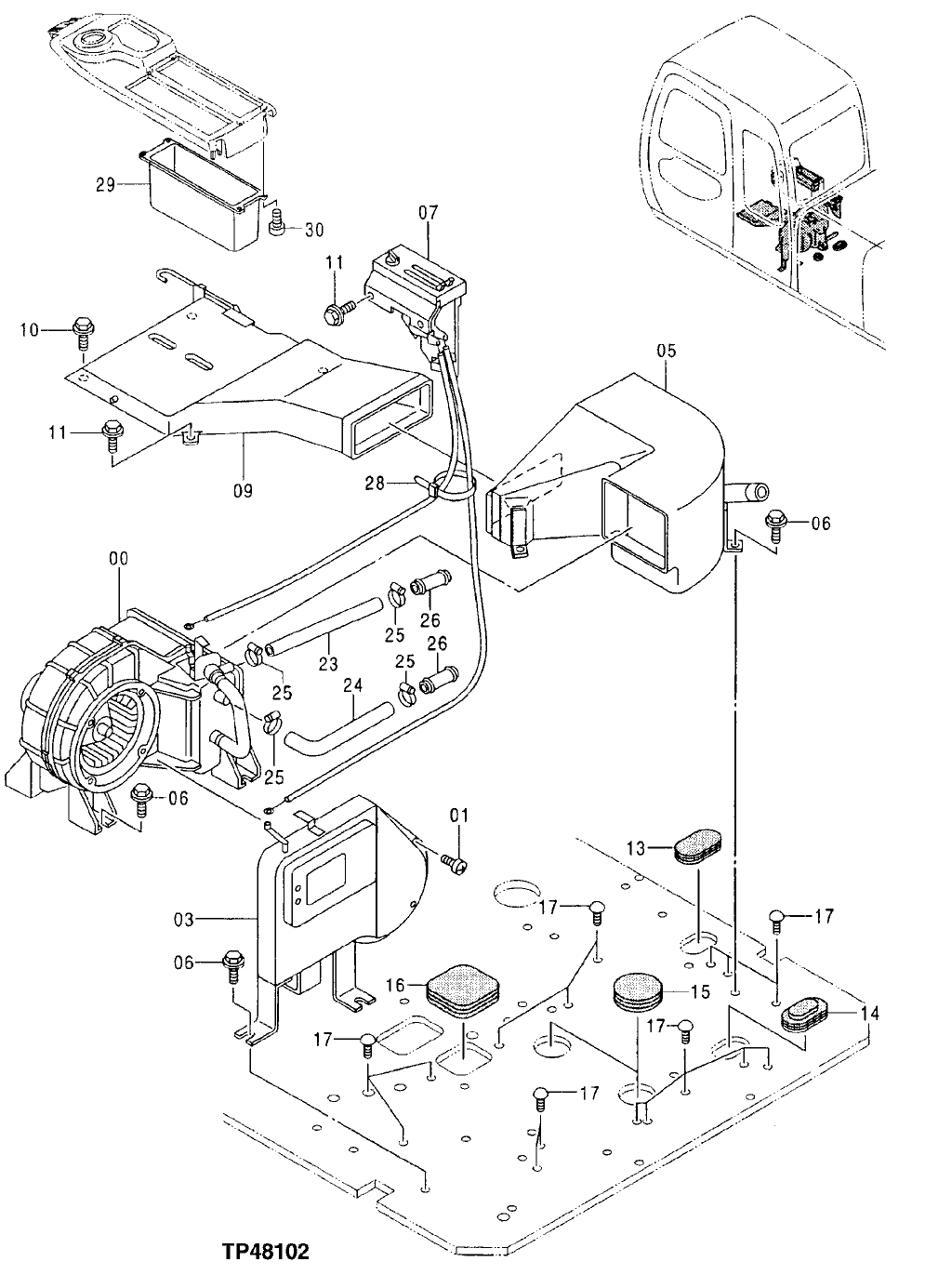

Схема запчастей John Deere 20 - 243 - Cab Heater 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

0

Heater

4358348 NLA, SUB FOR AT213979

1шт.

1

4350265

Screw

SUB FOR AT213944

3шт.

3

4365968

Support

SUB FOR AT214025

1шт.

5

4377275

Air Duct

SUB FOR AT215104

1шт.

6

19M7402

Cap Screw

M10 X 25

10шт.

12M7066

Lock Washer

10 mm

10шт.

24M7028

Washer

10.500 X 20 X 2 mm

10шт.

7

4358972

Control

SUB FOR AT213983

1шт.

9

4367138

Air Duct

SUB FOR AT214035

1шт.

10

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20, ALONG WITH 24M7036 AND 12M7065

2шт.

24M7036

Washer

9 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

11

Washer

12M7065 NLA

4шт.

19M7139

Cap Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

13

4276794

Grommet

SUB FOR AT154344

1шт.

14

9738084

Plug

SUB FOR AT214398

1шт.

15

4361148

Plug

SUB FOR AT214003

2шт.

16

4361119

Grommet

SUB FOR AT214001

1шт.

17

4280359

Plug

SUB FOR AT154351

16шт.

23

Bulk Hose

SUB FOR AT214174; 4369785 NO LONGER AVAILABLE FOR SERVICE; FURNISH TY2232 8 BULK MATERIAL CUT TO 230 MM LENGTH

1шт.

24

4344638

Hose

SUB FOR AT213898

1шт.

25

WZ2141223

Hose Clamp

SUB FOR AA34965

4шт.

26

4341800

Tube

SUB FOR AT213885

2шт.

28

H77698

Tie Band

3шт.

29

3072700

Tray

SUB FOR AT213782

1шт.

30

4361800

Screw

SUB FOR AT214011

4шт.

Выбрано товаров: 27
