Запчасти John Deere 20 238 - SECONDARY EXIT WINDOW KIT 1810 Operator Enclosure

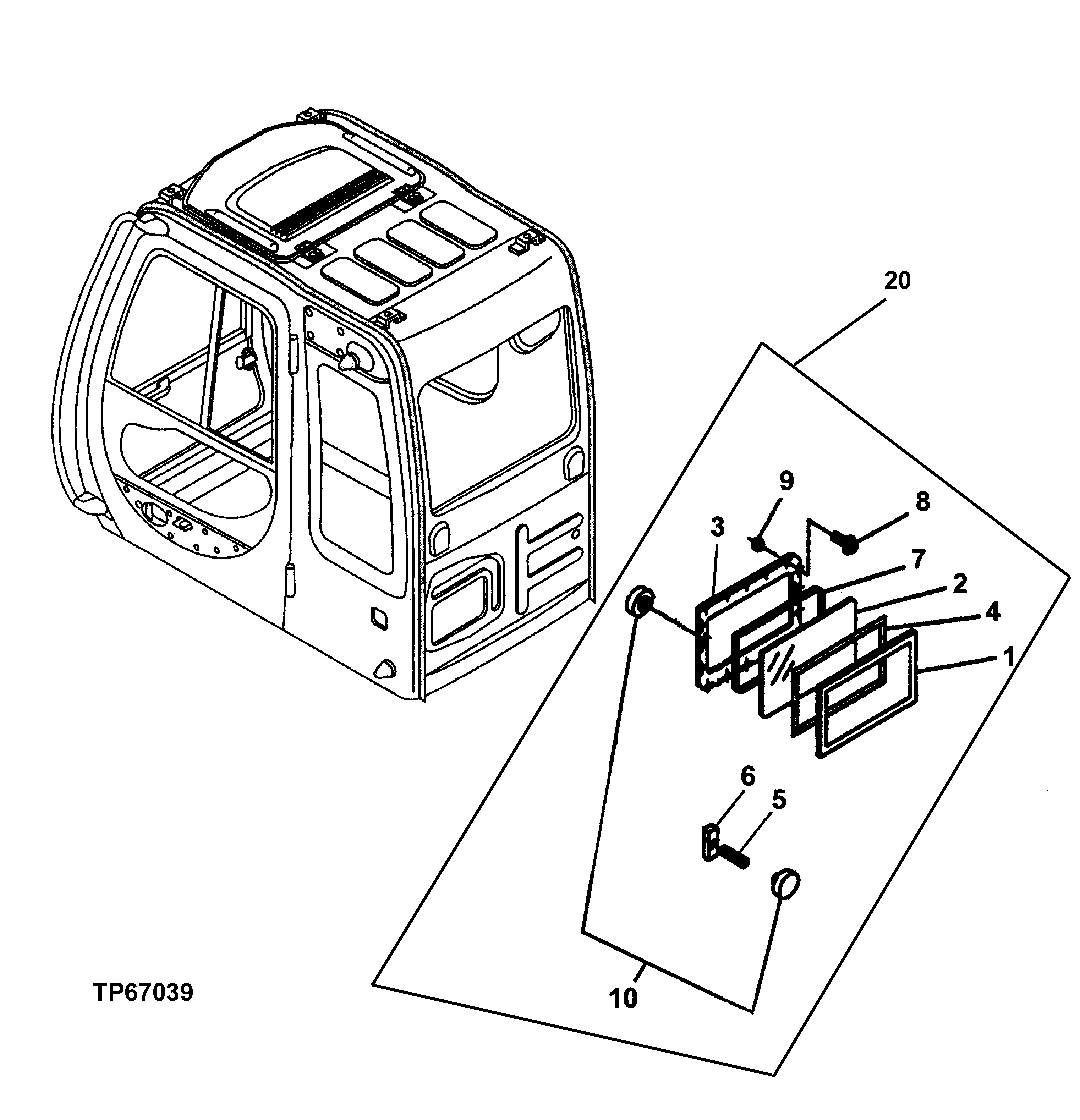

Схема запчастей John Deere 20 - 238 - SECONDARY EXIT WINDOW KIT 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

1

FFSB103019

Frame

1шт.

2

FFSB103020

Windowpane

1шт.

3

Frame

( FFSB103021 NO LONGER AVAILABLE FOR SERVICE)

1шт.

4

FFSB103022

Weatherstrip

1шт.

5

FFSB103023

Rod

2шт.

6

FFSB103024

Block Clamp

2шт.

7

Weatherstrip

( FFSB103025 NOT AVAILABLE FOR SERVICE) (FURNISH FFSB107987 BUL K MATERIAL CUT TO 2300 MM LENGTH )

1шт.

8

19H2924

Screw

1/4" X 3/4"

16шт.

9

K40001

Lock Nut

( FFSB102853 NO LONGER AVAILABLE)

16шт.

10

FFSB103031

Knob

(ASSEMBLY CONTAINS FOUR PIECES)

4шт.

20

FFSB104490

Kit

WHOLEGOODS (REAR SECONDARY EXIT WINDOW)

1шт.

Выбрано товаров: 11
