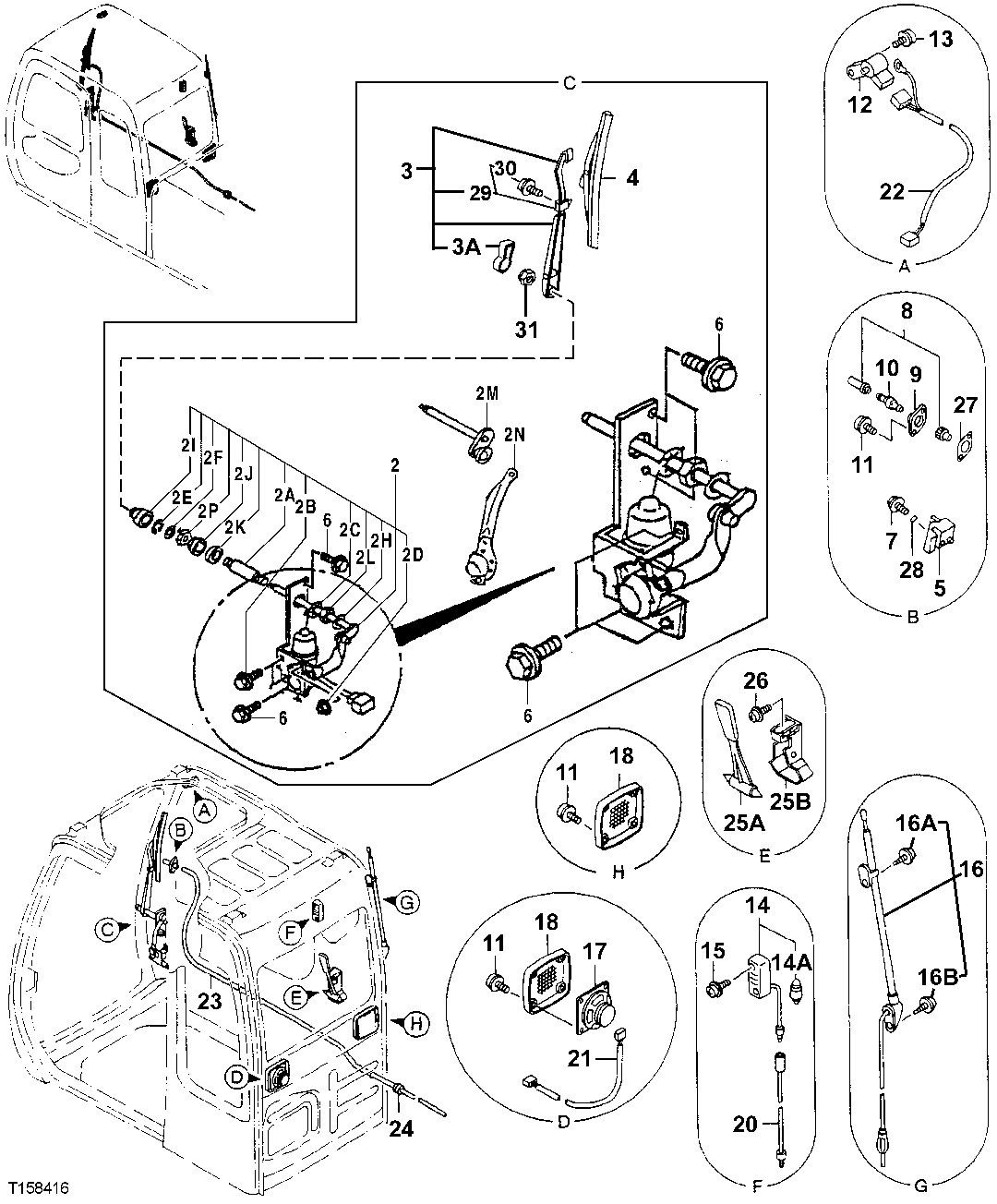

Запчасти John Deere 20 220 - Cab Components 1810 Operator Enclosure

0

4383439

Cab

SUB FOR AT215570; CONTAINS ALL PART S LISTED ON THIS PAGE - ADDITIONAL C OMPONENTS LISTED ON FOLLOWING PAGES

1шт.

2

4369540

Wiper Motor

SUB FOR AT214054

1шт.

2A

4431848

Spacer

1шт.

2B

4456238

Bolt

1шт.

2D

4431851

Nut

1шт.

2E

4431852

Snap Ring

1шт.

2F

4431853

Washer

1шт.

2I

4431856

Cap

1шт.

2J

4431857

Lock Washer

1шт.

2L

4431859

Nut

1шт.

2M

4469479

Link

1шт.

2N

4467360

Link

1шт.

2P

4431859

Nut

1шт.

3

4369541

Wiper Arm

SUB FOR AT214055; COMPLETE ARM ASSEMBLY

1шт.

3A

4399597

Cover

SUB FOR AT183331

1шт.

4

4369542

Wiper Blade

SUB FOR AT214056

1шт.

5

4369543

Retainer

SUB FOR AT214057

1шт.

6

Washer

12M7065 NLA

4шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

4шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

4шт.

7

4372218

Screw With Washer

SUB FOR AT214304

1шт.

8

4367485

Nozzle

SUB FOR AT214042

1шт.

9

4367486

Adapter Fitting

SUB FOR AT214043

1шт.

10

4367481

Flow Control Hyd. Valve

SUB FOR AT214041

1шт.

11

4372608

Screw

SUB FOR AT214316

10шт.

12

4387837

Switch

SUB FOR 4369548; ALSO ORDE R 4402476; SUB FOR AT182625

1шт.

13

19M7700

Cap Screw

M5 X 10

1шт.

24M7348

Washer

5.500 X 10 X 1 mm

1шт.

12M7064

Lock Washer

5 mm

1шт.

14

4187082

Lamp

SUB FOR TH108567

1шт.

14A

4187083

Bulb

SUB FOR TH108568

1шт.

15

21M7265

Screw

M5 X 12

2шт.

16

4280527

Antenna

SUB FOR AT154352

1шт.

16A

4210412

Screw

SUB FOR AT131864

1шт.

16B

4210413

Screw

SUB FOR AT131865

1шт.

17

4361302

Speaker

SUB FOR AT214007

1шт.

18

4364504

Grille

SUB FOR AT214017

2шт.

20

4260369

Wiring Harness

SUB FOR AT214060; SUB FOR AT154278

1шт.

21

4369547

Wiring Harness

SUB FOR AT214061

1шт.

22

4402476

Wiring Harness

SUB FOR AT214062; ALSO ORDE R 4387837; SUB FOR AT182626

1шт.

23

Bulk Hose

SUB FOR AT214063; 4369549 NO LONGER AVAILABLE FOR SERVICE; FURNISH TY2513 9 BULK MATERIAL CUT TO 1530 MM LENGTH

1шт.

24

4287903

Grommet

SUB FOR AT154413

2шт.

25A

4362700

Hammer

SUB FOR T158020

1шт.

25B

2038764

Bracket

SUB FOR T158021

1шт.

26

19M7372

Cap Screw

M5 X 16

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

12M7064

Lock Washer

5 mm

2шт.

27

4369544

Gasket

SUB FOR AT214058

1шт.

28

4092111

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") SUB FOR AT154150

1шт.

29

4370903

Bracket

SUB FOR AT214277

1шт.

30

4382863

Bolt

SUB FOR AT218189

1шт.

31

14M7273

Nut

M8

1шт.
