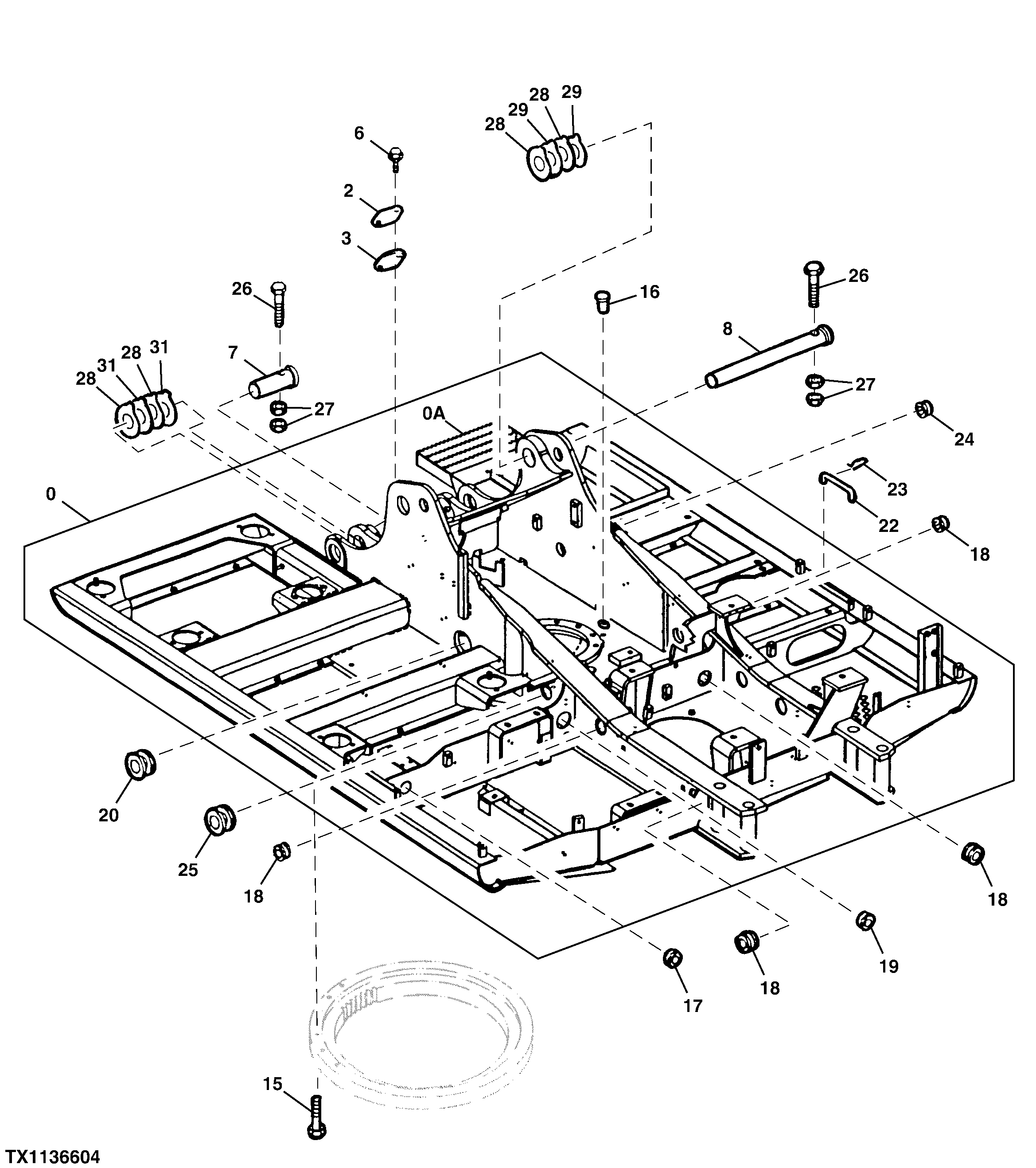

Запчасти John Deere 20 214 - Main Frame 1740 Frame Installation

0

Main Frame

CA, AP33266 NLA

1шт.

0A

8060798

Step

1шт.

2

4604209

Cover

(SUB FOR AT154929 OR 4255799)

1шт.

3

4161735

Gasket

(SUB FOR P60451, THIS APPLI CATION ) (SUB FOR AT130379)

1шт.

6

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

7

AT154899

Pin

2шт.

8

3081004

Pin Fastener

(SUB FOR AT154896)

1шт.

15

J921890

Bolt

(SUB FOR P61970)

30шт.

16

P60466

Cotter Pin

(NO LONGER REQUIRED)

3шт.

17

4201995

Grommet

(SUB FOR TH109396)

1шт.

18

4509404

Grommet

(SUB FOR TH100553)

7шт.

19

4509404

Grommet

(SUB FOR TH100553)

1шт.

20

4190960

Grommet

(SUB FOR AT126283)

1шт.

22

4341788

Rod

(SUB FOR P60465, THIS APPLICATION ) ( SUB FOR AT213884 ) (SUB FOR 4341788J)

2шт.

23

H132922

Cotter Pin

2шт.

24

4221018

Bushing

(SUB FOR AT203980)

1шт.

25

4221019

Bushing

(SUB FOR P60453)

1шт.

26

19M8503

Cap Screw

M20 X 160 (SUB FOR P61796)

3шт.

27

14M7277

Nut

M20

6шт.

28

P61821

Plate

6шт.

29

P61822

Plate

2шт.

31

P61822

Plate

4шт.
