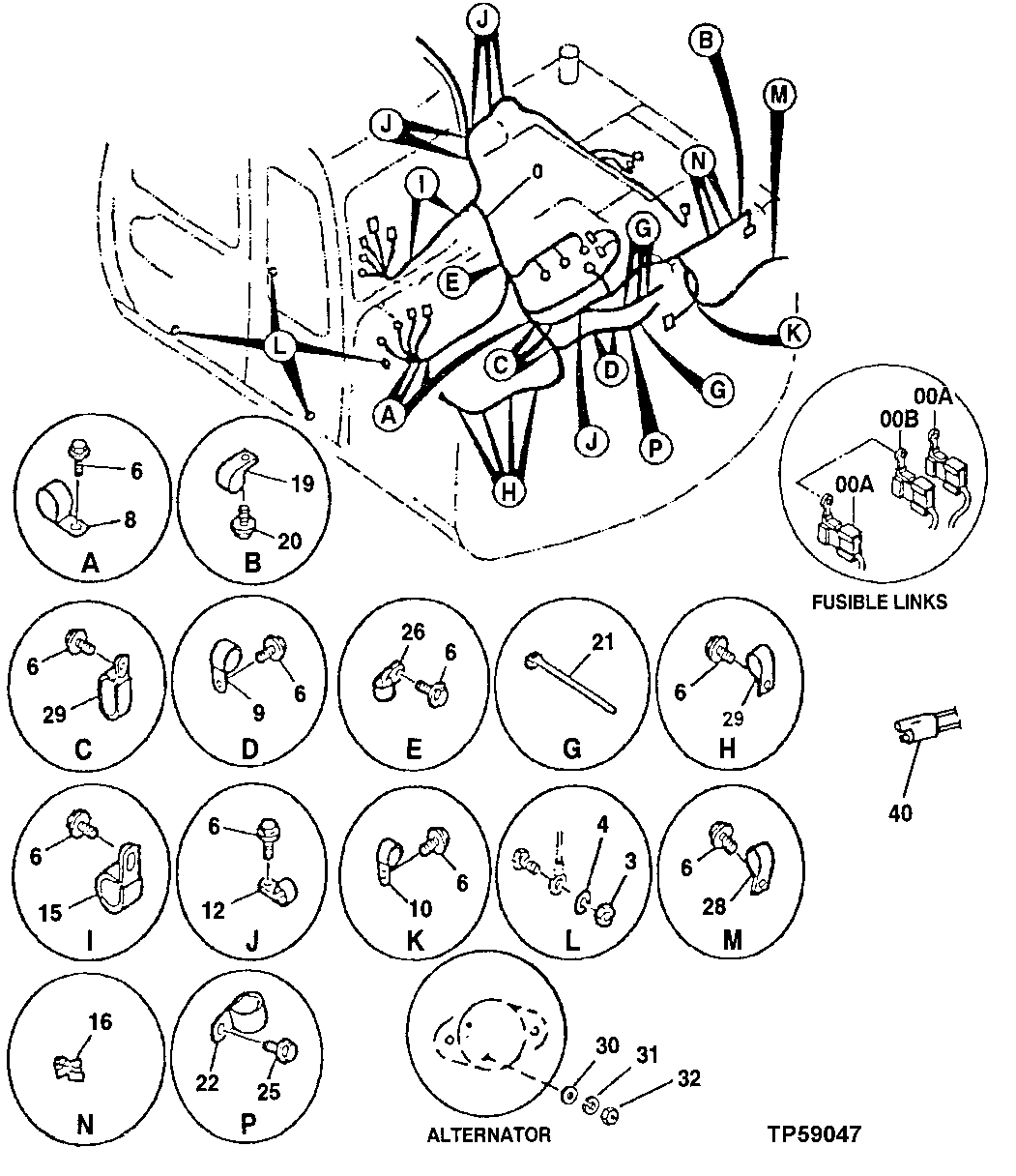

Запчасти John Deere 20 203 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

AP34074

Wiring Harness

(SEE DTAC SOLUTION FOR REPAIR KIT AND

1шт.

AT167165

Wiring Harness

(AUXILIARY SOLENOID CONTROL VALVE)

2шт.

0A

4270554

Fuse

(SUB FOR AT160982)(FUSIB LE LINK - 40 AMP - GREEN)

2шт.

0B

4287670

Fuse

(SUB FOR AT200499)(FUSIBL E LINK - 60 AMP - YELLOW)

1шт.

0C

4374532

Diode

(SUB FOR AT179476)(NOT ILLUSTRATED) (COMPO NENT OF MAIN WIRE HARNESS) (PLASTIC CONNECT OR CONTAINS 5 DIODES) (1-KEYSWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1- FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT )

1шт.

3

14M7274

Nut

M10

5шт.

4

12M7066

Lock Washer

10 mm

5шт.

6

19M7938

Cap Screw

M10 X 20

26шт.

12M7066

Lock Washer

10 mm

21шт.

8

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

3шт.

9

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

ARшт.

10

4190275

Clamp

(SUB FOR TH108598)

1шт.

11

T32854

Clamp

5шт.

12

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

7шт.

15

AT121321

Hose Clamp

2шт.

16

4336420

Clip

(SUB FOR P61786)

3шт.

19

4000860

Clamp

(SUB FOR AT154911)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

21

H77698

Tie Band

9шт.

22

T153974

Clamp

(SUB FOR AT122384, THIS APPLICATION)

1шт.

23

12H317

Lock Washer

9/16"

1шт.

24

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

25

19M7877

Cap Screw

M14 X 30 (SUB FOR P64278)

1шт.

26

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

1шт.

28

4190261

Clip

(SUB FOR TH108600, THIS APPL ICATION ) (SUB FOR TH109649)

1шт.

29

4190266

Clip

(SUB FOR TH108793)

ARшт.

30

12M7064

Lock Washer

5 mm

1шт.

31

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

32

14M7297

Nut

M5

1шт.

40

AT172578

Wiring Harness

(DIODE) (USED TO PROTECT AGAINST VOLTAGE SPIKES)

1шт.
