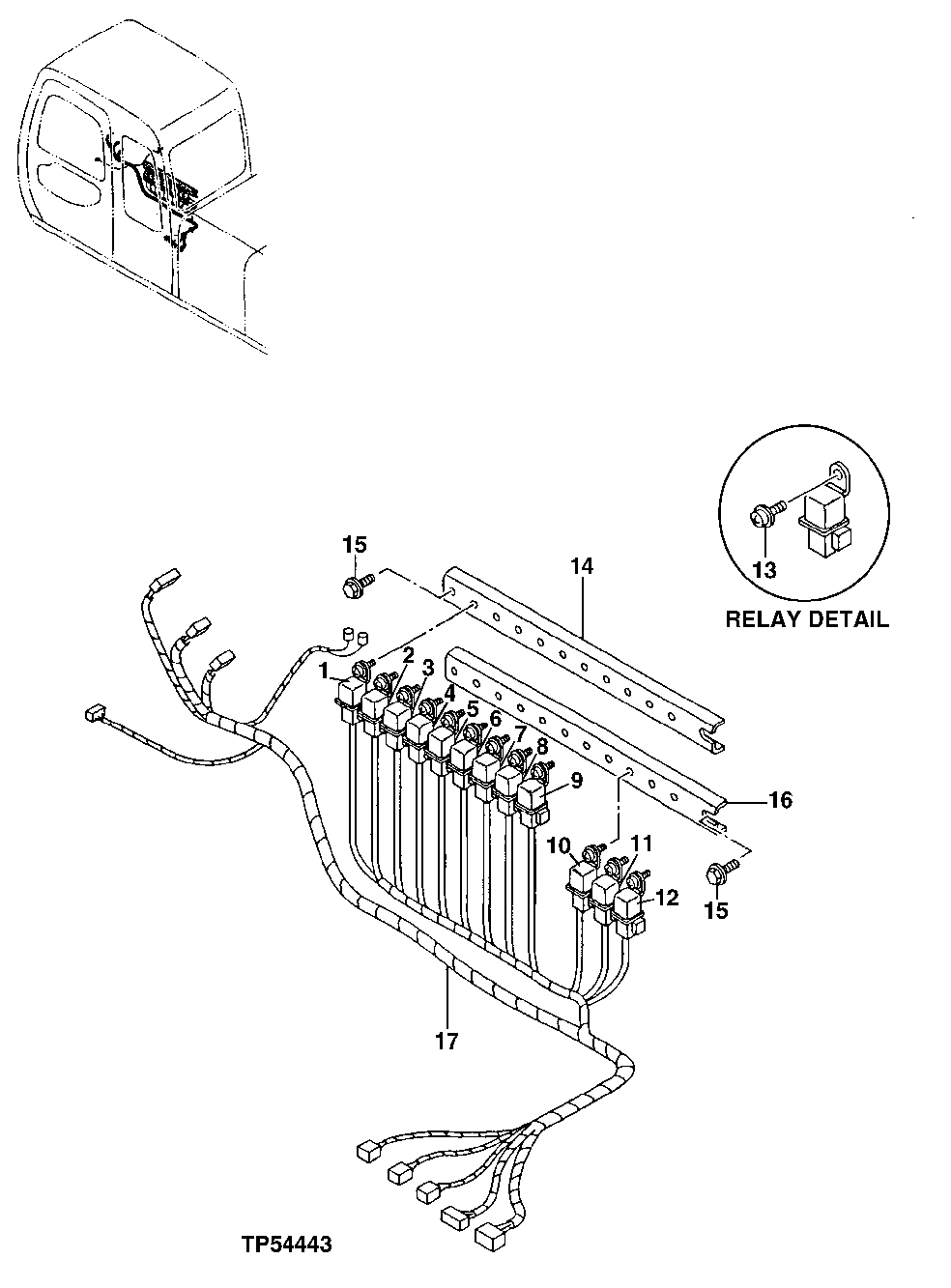

Запчасти John Deere 20 200 - ELECTRIC PARTS 1674 Wiring Harness And Switches

1

4251588

Relay

SUB FOR AT154924; WIPER

1шт.

2

4251588

Relay

SUB FOR AT154924; WIPER

1шт.

3

4251588

Relay

SUB FOR AT154924; WIPER

1шт.

4

4251588

Relay

SUB FOR AT154924; WIPER

1шт.

5

4251588

Relay

SUB FOR AT154924; HORN

1шт.

6

4251588

Relay

SUB FOR AT154924; WORK LIGHT

1шт.

7

4251588

Relay

SUB FOR AT154924; WORK LIGHT

1шт.

8

4251588

Relay

SUB FOR AT154924; WINDSHIELD WASHER

1шт.

9

4251588

Relay

SUB FOR AT154924; LOAD DUMP

1шт.

10

4251588

Relay

SUB FOR AT154924; TRAVEL ALARM

1шт.

11

4251588

Relay

SUB FOR AT154924; SAFETY

1шт.

12

4251588

Relay

SUB FOR AT154924; START AID

1шт.

13

J900614

Bolt

SUB FOR TH104056

12шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

12шт.

12M7006

Lock Washer

6 mm

12шт.

14

8073968

Bracket

SUB FOR AT214362

1шт.

15

Washer

12M7065 NLA

4шт.

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

4шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

4шт.

16

8073968

Bracket

SUB FOR AT214372; SUB FOR AT214362

1шт.

17

0002290

Wiring Harness

SUB FOR AT215083

1шт.
