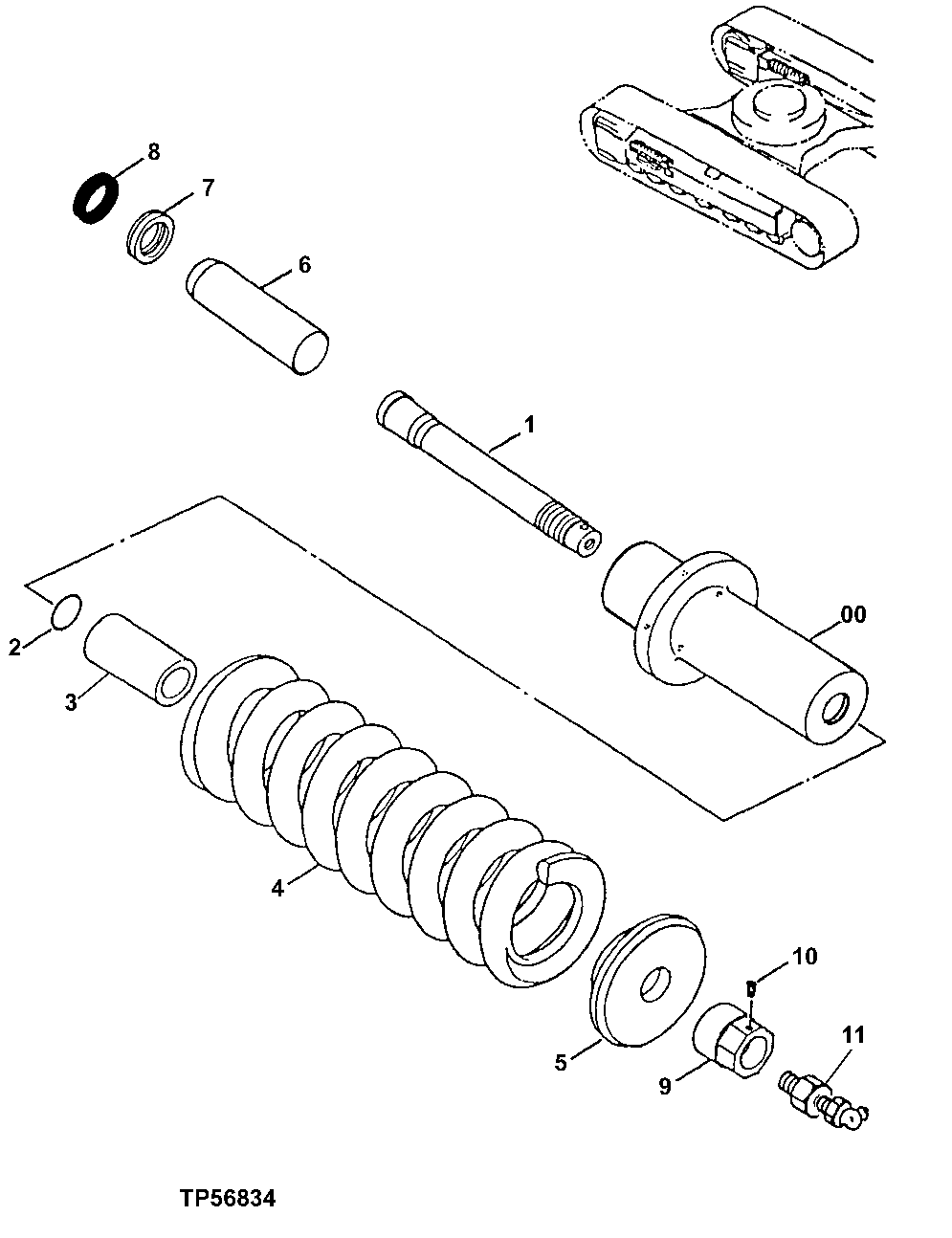

Запчасти John Deere 20 6 - ADJUSTER (STEEL TRACK) (031438 - ) 0130 Track Systems

0

AT186637

Cylinder

(NLA) (SUB AT382247) (ALSO ORDER AT180454)

1шт.

AT382247

Cylinder

(NLA) (SUB 9273271R)

1шт.

9273271R

Cylinder

ALSO ORDER 4665328R AND 4665330R

1шт.

4665328R

Seal

USE WITH 9273271R Not Illustrated

1шт.

4665330R

Seal

USE WITH 9273271R Not Illustrated

1шт.

1

AT180385

Hydraulic Cylinder Rod

1шт.

2

AT180387

O-Ring

1шт.

3

AT180388

Bushing

1шт.

4

AT180391

Spring

1шт.

AT180454

Spring

(USE WITH AT382247)

1шт.

5

AT180389

Bushing

1шт.

6

AT186635

Rod

1шт.

7

AT186636

Packing

1шт.

8

AT180397

Packing

1шт.

9

AT180392

Nut

1шт.

10

AT180393

Fitting Plug

1шт.

11

4255055

Valve

(SUB FOR AT154223)

1шт.
