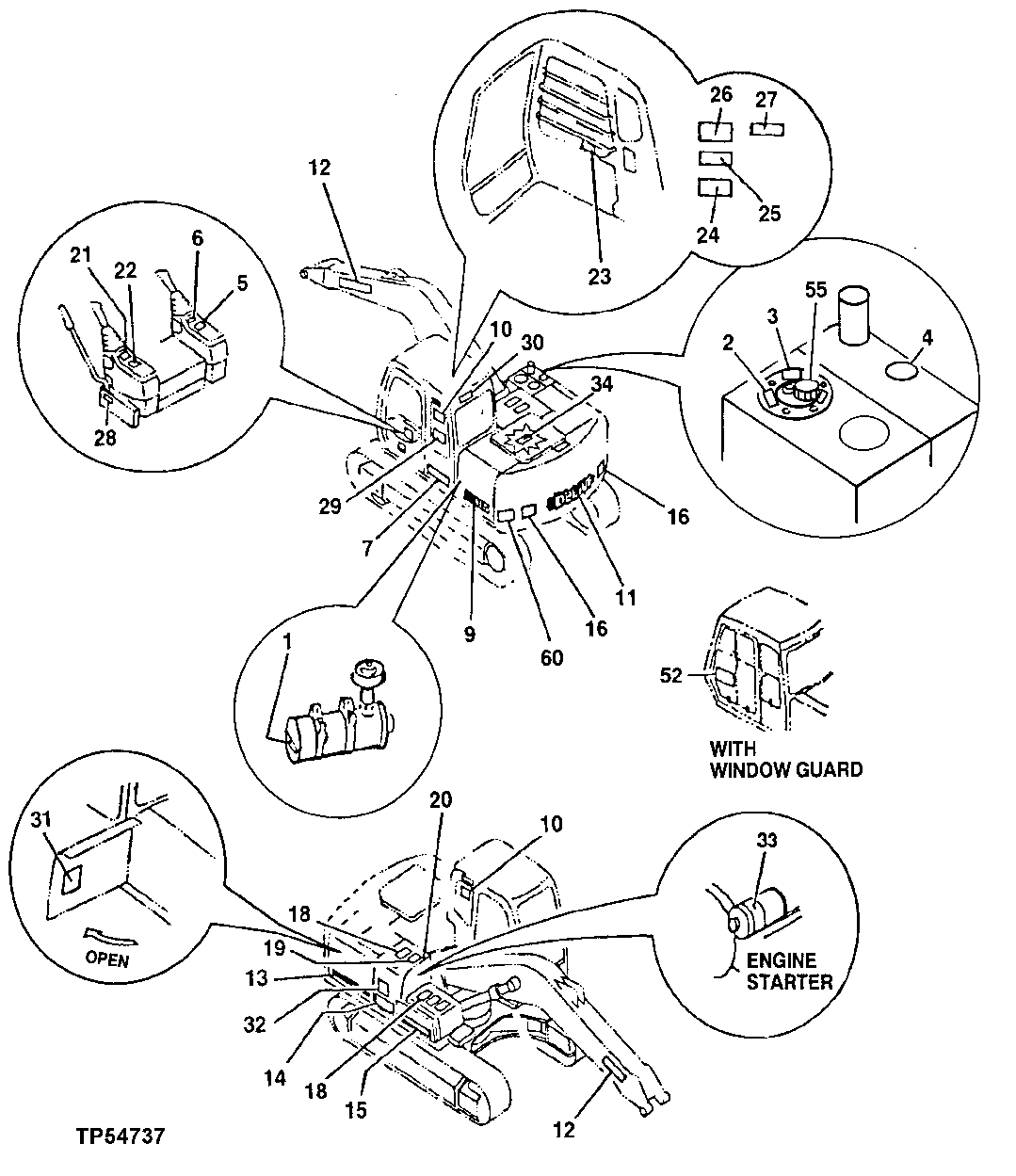

Запчасти John Deere 20 188 - Labels and Decals 1320 Vehicle Finish and Trim

1

R56902

Label

(DRY AIR CLEANER)

1шт.

2

P63448

Label

(SUB FOR AT155733)(PUMP BLEED INFORMATION)

1шт.

3

T101942

Label

(HYDRAULIC OIL)

1шт.

4

T79632

Label

(DIESEL ONLY)

1шт.

5

4264805

Label

(SUB FOR AT155730)(IGNITION KEY SWITCH)

1шт.

6

T159842

Label

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

Label

(RIGHT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

7

T161536

Label

(STRIPE LEFT SIDE)

1шт.

9

T161532

Label

(120 LEFT SIDE)

1шт.

10

T160538

Label

(TRANSPARENT LEAPING DEER)

2шт.

11

T160684

Label

(DEERE)

1шт.

12

T160685

Label

(SUB FOR T158455)(DEERE)

2шт.

13

T161533

Label

(120 RIGHT SIDE)

1шт.

14

T161534

Label

(STRIPE - RIGHT SIDE)

1шт.

15

T161535

Label

(STRIPE - TOOL BOX - RIGHT SIDE)

1шт.

16

JD5909

Reflector

(RED REFLECTOR TAPE) (CUT TO LEN GTH FROM JD5909 BULK MATERIAL) ( T160910 NOT AVAILABLE FOR SERVICE )

2шт.

18

H21259

Mat

7шт.

19

Mat

(ANTI-SKID) T161537 NO LONG ER AVAILABLE, (SUB H21259)

1шт.

20

H21259

Mat

1шт.

21

T159841

Label

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

Label

(LEFT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

22

4288971

Label

(SUB FOR AT155729)(ETH ER AID - MOTION CANCEL)

1шт.

23

T159888

Label

ENGLISH (OPERATIONAL - START STOP)

1шт.

T163615

Label

SPANISH (OPERATIONAL - START STOP)

1шт.

T163598

Label

FRENCH (OPERATIONAL - START STOP)

1шт.

24

T159887

Safety Sign

ENGLISH (CAUTION)

1шт.

T162754

Label

SPANISH (CAUTION)

1шт.

T162774

Label

FRENCH (CAUTION)

1шт.

25

T146668

Safety Sign

(WARNING - AVOID CRUSHING)

1шт.

26

T146667

Safety Sign

(DANGER - ELECTROCUTION)

1шт.

27

T190393

Label

(SUB FOR T157809)(IMPORTANT - B REAK WINDOW FOR SECONDARY EXIT)

1шт.

28

4299059

Label

(SUB FOR T138886)(HYDRAULIC LOCKOUT)

1шт.

29

T160491

Label

ENGLISH (LIFT CAPACITY)

1шт.

T163612

Label

SPANISH (LIFT CAPACITY)

1шт.

T163600

Label

FRENCH (LIFT CAPACITY)

1шт.

30

T146664

Safety Sign

(CAUTION WINDOW LOCK - INSIDE CAB)

1шт.

31

T159847

Label

ENGLISH (PERIODIC MAINTENANCE)

1шт.

T163623

Label

SPANISH (PERIODIC MAINTENANCE)

1шт.

T163607

Label

FRENCH (PERIODIC MAINTENANCE)

1шт.

T163497

Label

ENGLISH (PERIODIC MAINTENANCE)

1шт.

T163625

Label

SPANISH (PERIODIC MAINTENANCE)

1шт.

T163627

Label

FRENCH (PERIODIC MAINTENANCE)

1шт.

32

T149983

Label

(IMPORTANT - OIL LEVEL) (IN SIDE RIGHT PUMP COMPARTMENT)

1шт.

33

T146102

Label

(SUB FOR T146103)(BYPASS START)

1шт.

34

T152657

Safety Sign

(IMPORTANT - RADIATOR)

1шт.

52

T161729

Label

(VANDAL PROTECTION COVER LOCATIONS)

1шт.

55

T147009

Label

(CAUTION - RESERVOIR COVER)

1шт.

60

T145893

Safety Sign

(WARNING - STAY CLEAR)

2шт.
