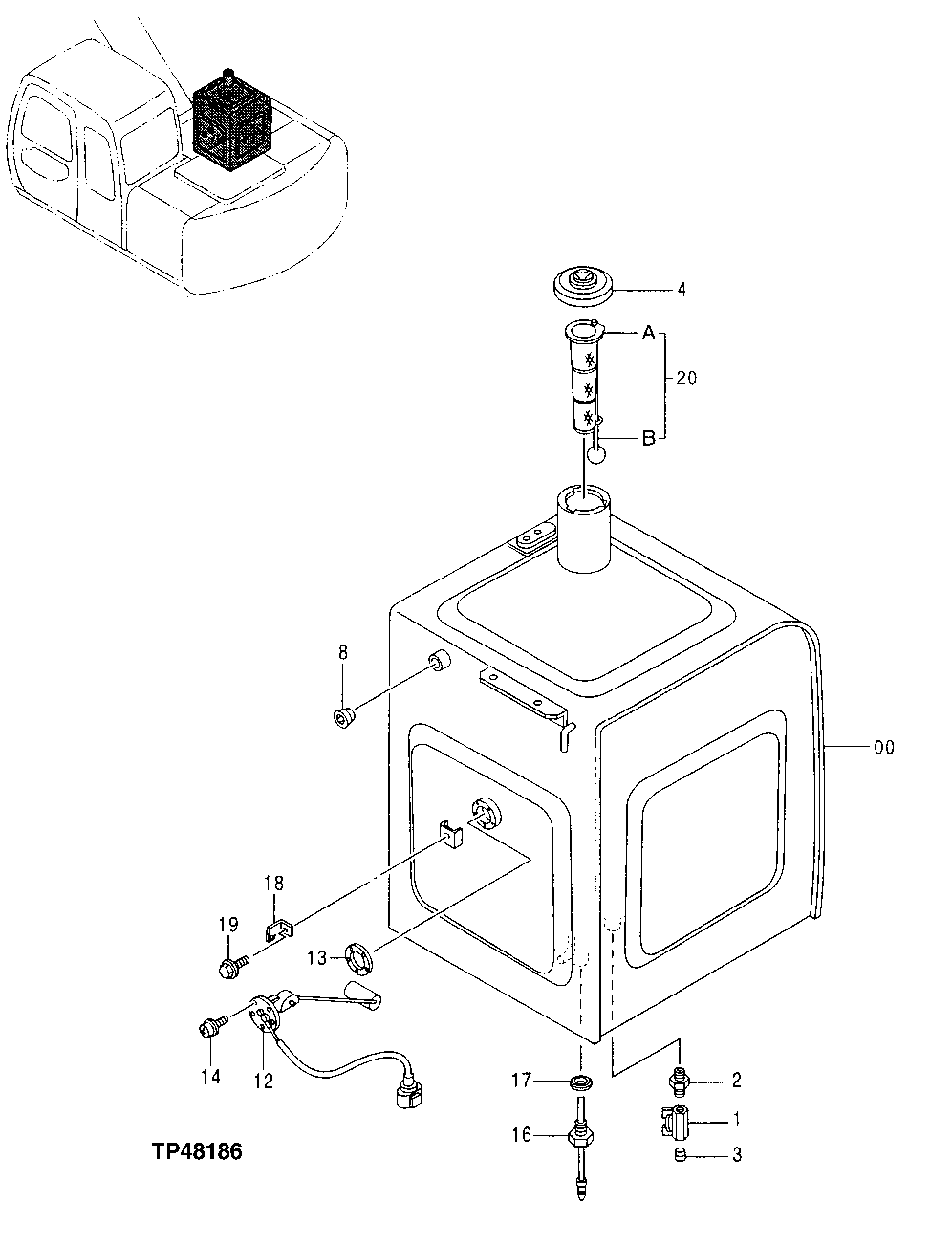

Запчасти John Deere 20 185 - Fuel Tank 0560 External Fuel Supply Systems

0

AP35861

Fuel Tank

SUB FOR AP33505

1шт.

1

4374265

Drain Valve

SUB FOR AT177419

1шт.

2

T116057

Fitting

1шт.

3

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

4

4361638

Cap

SUB FOR AT175989, KEY LOCK ABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

SUB FOR AT147803, H800, NOT ILLUSTRATED

1шт.

AT323462

Filler Cap

SUB FOR 4361638, CAN BE LOCKED W ITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

8

94-2013

Fitting Plug

SUB FOR TH100648

1шт.

12

4660782

Float

SUB FOR AT154239 OR 4257128

1шт.

13

T211051

Gasket

SUB FOR U42323

1шт.

14

21M7278

Screw

M5 X 10

5шт.

16

4259788

Switch

SUB FOR AT154272

1шт.

17

4157648

Sealing Washer

SUB FOR TH108583

1шт.

18

4257159

Bracket

SUB FOR AT154243

1шт.

19

19M8324

Cap Screw

M10 X 16

1шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

20

4353560

Strainer

SUB FOR AT213970

1шт.

20A

Strainer

1шт.

20B

Float

1шт.
