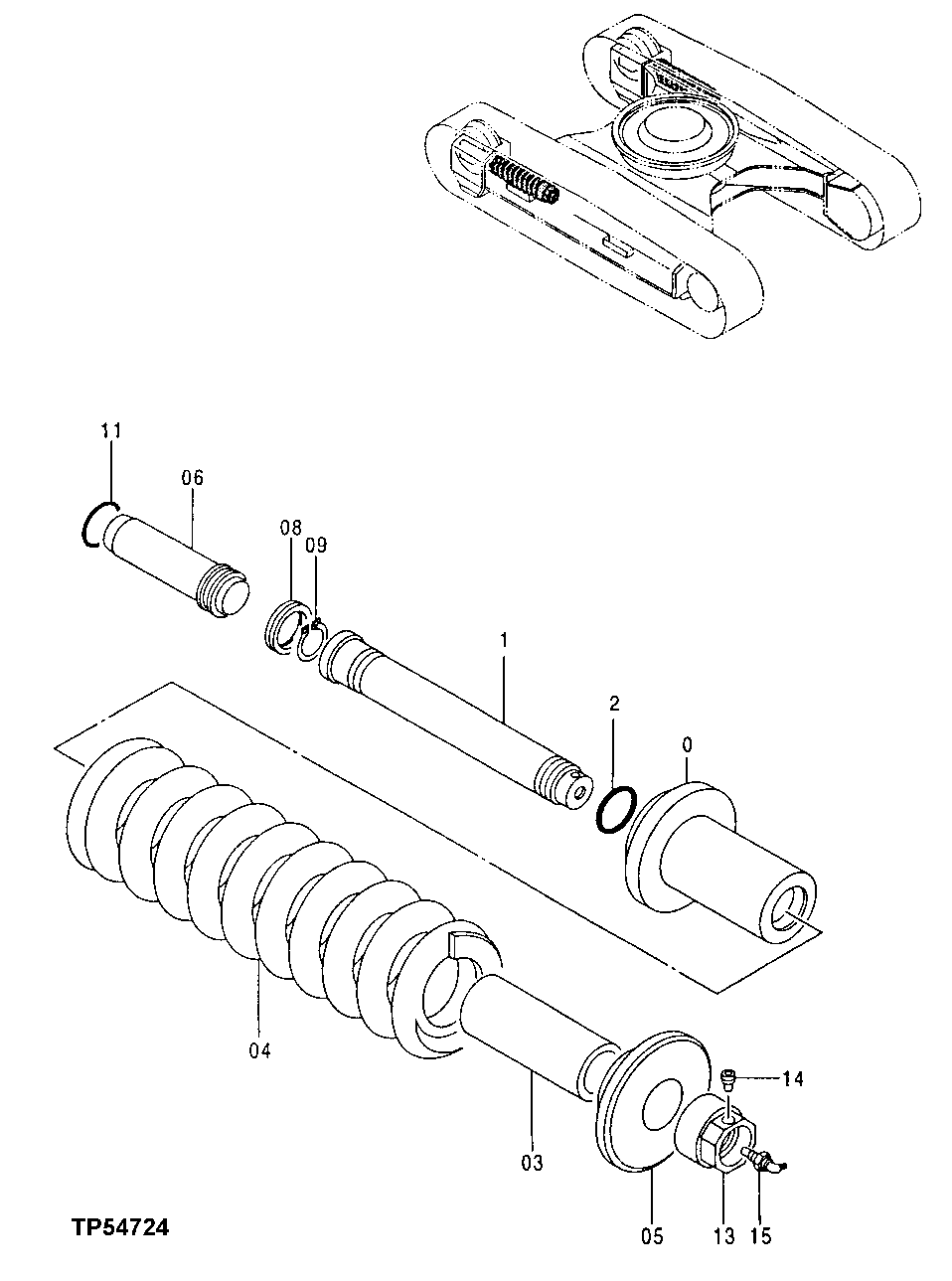

Запчасти John Deere 20 5 - ADJUSTER (STEEL TRACK) (030067 - 031437) 0130 Track Systems

0

AT186637

Cylinder

(ALSO ORDER AT186636) (SUB FOR AT180384)

1шт.

1

AT180385

Hydraulic Cylinder Rod

1шт.

2

AT180387

O-Ring

1шт.

3

AT180388

Bushing

1шт.

4

AT180391

Spring

1шт.

5

AT180389

Bushing

1шт.

6

AT186635

Rod

(SUB FOR AT180396 ) (SUB AT186635)

1шт.

8

AT180394

Packing

(SUB AT186636)

1шт.

9

AT180395

Snap Ring

1шт.

11

AT180397

Packing

1шт.

13

AT180392

Nut

1шт.

14

AT180393

Fitting Plug

1шт.

15

4255055

Valve

(SUB FOR AT154223)

1шт.
