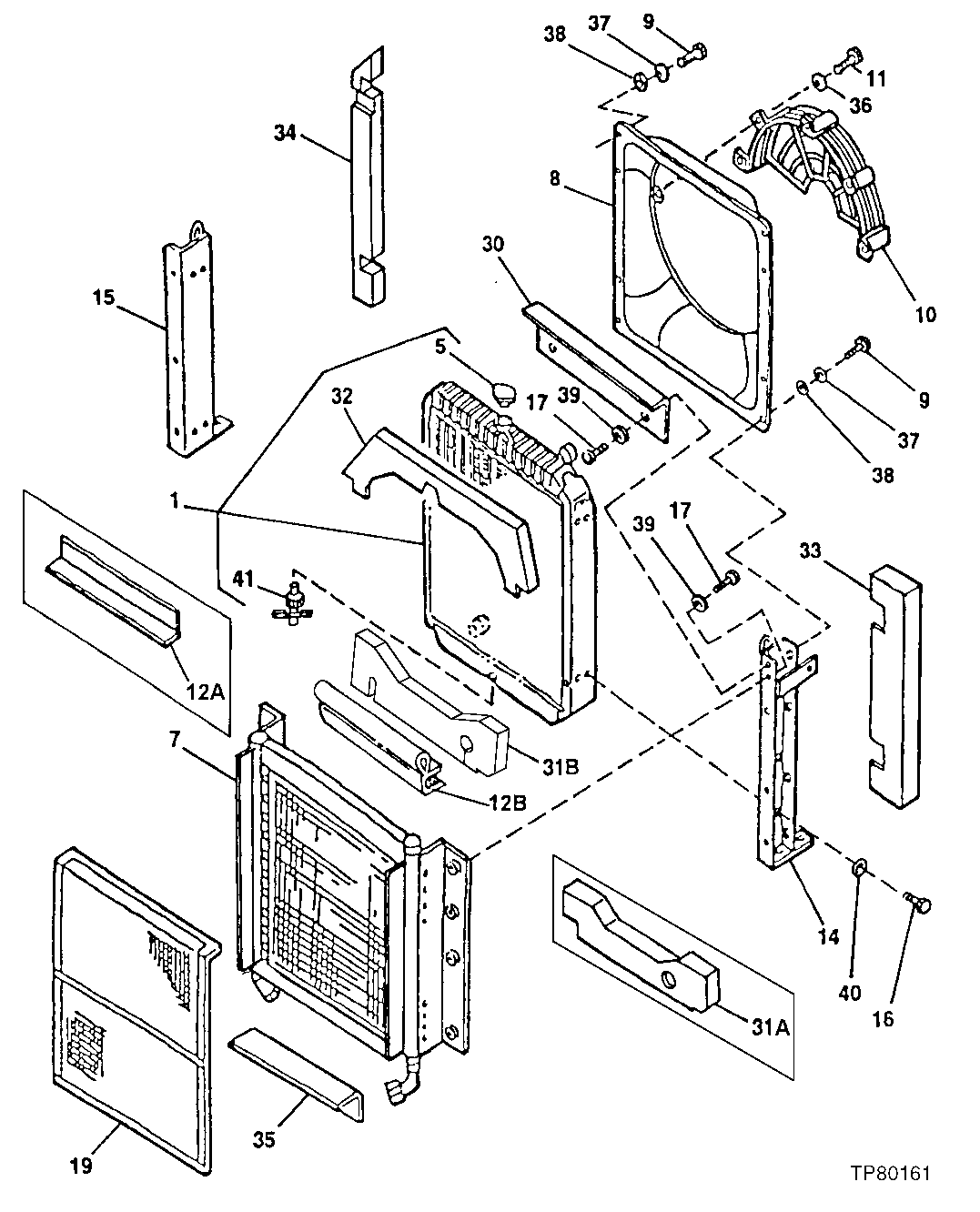

Запчасти John Deere 20 176 - Radiator 0510 Engine Cooling Systems

1

AP33359

Radiator

(SUB FOR AP33231)

1шт.

5

AT173610

Filler Cap

1шт.

7

AP35242

Oil Cooler

(SUB FOR AP33288)

1шт.

8

AP33234

Shroud

1шт.

9

19M7785

Screw

M10 X 25

8шт.

10

AP33235

Guard

1шт.

11

19M7867

Screw

M8 X 25

5шт.

12A

P60637

Pad

1шт.

12B

P66231

Isolator

1шт.

14

AP33237

Support

1шт.

15

AP33236

Support

1шт.

16

19M7783

Screw

M10 X 16

16шт.

17

19M7784

Screw

M10 X 20

2шт.

19

AP33233

Screen

1шт.

30

P60630

Angle

1шт.

31A

P60636

Pad

(USE UNTIL EXHAUSTED)

1шт.

31B

P60636

Pad

1шт.

32

P60633

Pad

1шт.

33

P66267

Pad

(SUB FOR P60634)

1шт.

34

P60635

Pad

1шт.

35

P60676

Pad

1шт.

36

24M7298

Washer

8.400 X 25 X 2 mm

5шт.

37

24M7296

Washer

10.500 X 30 X 2.500 mm

8шт.

38

24H1330

Washer

15/32" X 1-3/8" X 7/64"

8шт.

39

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

40

24M7296

Washer

10.500 X 30 X 2.500 mm

16шт.

41

AT13740

Drain Valve

1шт.
