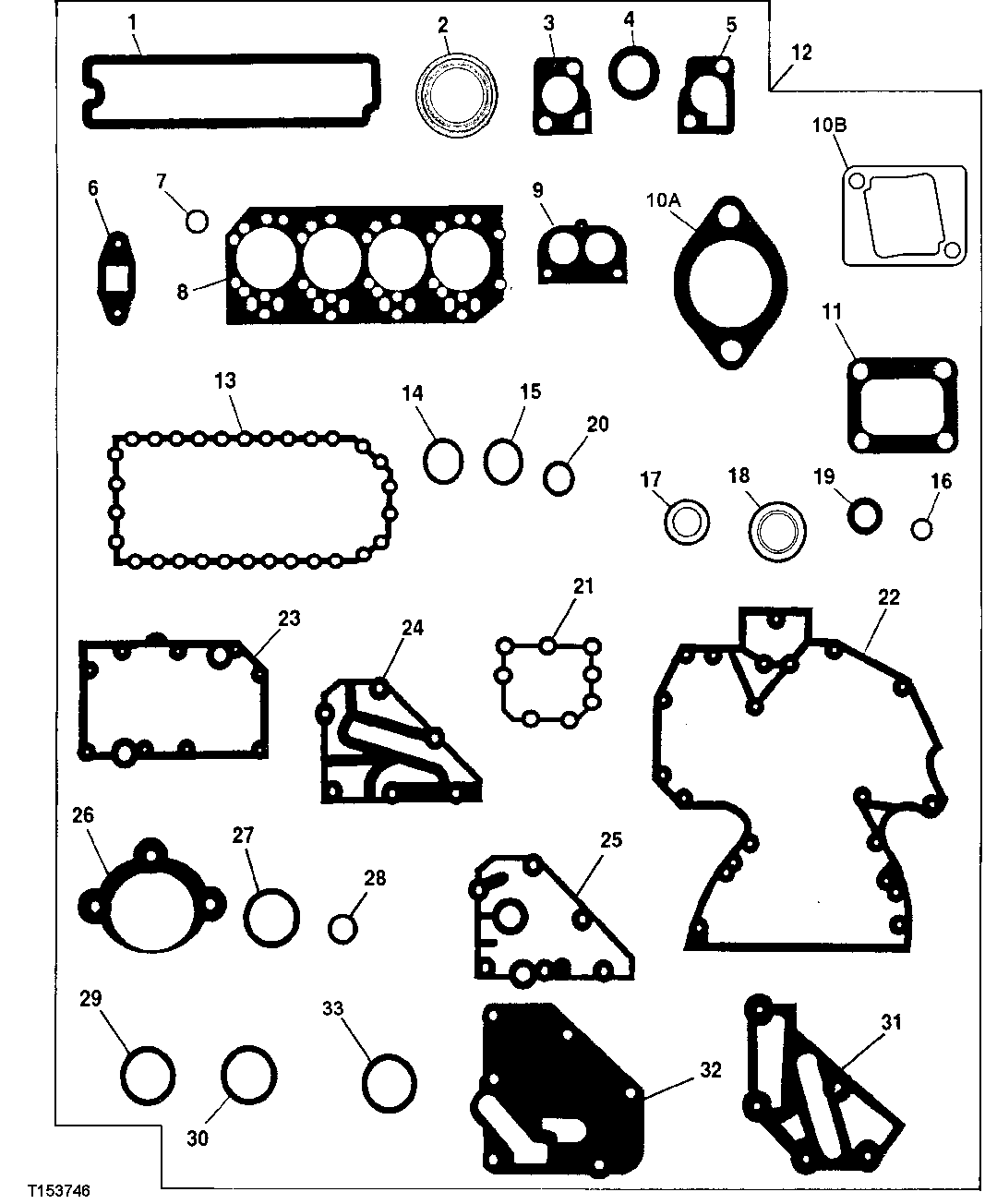

Запчасти John Deere 20 171 - ENGINE OVERHAUL KIT / GASKET KIT PE4045TP051 (ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

1

R123542

Gasket

ROCKER ARM COVER

1шт.

RE520539

Gasket Kit

(HIGH TEMPERATURE GASKET)

ARшт.

2

R90658

Gasket

EXHAUST MANIFOLD

4шт.

3

R121416

Gasket

THERMOSTAT COVER

1шт.

4

R123226

Seal

WATER BY-PASS TUBE

2шт.

5

R123345

Gasket

THERMOSTAT HOUSING

1шт.

6

R123570

Gasket

(PE4045TP051) TURBOCHARGER OIL OUTLET TUBE

1шт.

R503891

Gasket

TURBOCHARGER OIL OUTLET TUBE (PE4045HP050)

NAшт.

7

R123575

O-Ring

ROCKER ARM COVER HOLD DOWN STUD

4шт.

8

R116515

Engine Cylinder Head Gasket

CYLINDER HEAD

1шт.

9

R501373

Gasket

(SUB FOR R54638)THERMOSTAT COVER

1шт.

10A

R81275

Gasket

AIR INLET

1шт.

10B

R133893

Gasket

AIR INLET

1шт.

11

R92097

Gasket

TURBOCHARGER TO EXHAUST MANIFOLD

1шт.

12

RE501455

Gasket Kit

(SUB FOR RE66086)MAJOR OVERHAUL

1шт.

RE515748

Engine Overhaul Kit

(SUB FOR RE66094 (ORDER ONE K IT PER ENGINE)) (PE4045TP051)

1шт.

RE508083

Engine Overhaul Kit

(ORDER ONE KIT PER ENGINE) (PE4045HP050)

NAшт.

13

R123352

Gasket

ENGINE OIL PAN

1шт.

14

R75892

O-Ring

OIL PUMP TUBE CONNECTOR

1шт.

15

R97185

O-Ring

OIL PUMP OUTLET TUBE TO COVER

1шт.

16

R61871

O-Ring

OIL PUMP INTAKE TUBE

1шт.

17

A4827R

Washer

OIL PRESSURE REGULATOR PLUG

1шт.

18

RE44574

Seal

REAR OIL SEAL

1шт.

19

RE516340

Seal

(MARKED RE52346 OR RE505515 ) (SUB FOR RE59810)FRONT OIL SEAL

1шт.

20

R112316

Valve

FUEL TRANSFER PUMP

1шт.

21

R123417

Gasket

WATER PUMP

1шт.

22

R136516

Gasket

TIMING GEAR COVER

1шт.

23

R123501

Gasket

OIL COOLER HOUSING

1шт.

24

R123504

Gasket

REMOTE OIL FILTER ADAPTER

1шт.

25

R123525

Gasket

OIL FILTER HEADER

ARшт.

26

R53108

Gasket

STARTING MOTOR

1шт.

27

R72328

O-Ring

OIL FILTER TUBES

4шт.

28

R89944

O-Ring

WATER PUMP INLET

1шт.

29

R61105

O-Ring

CONNECTOR TUBE TO TIMING GEAR COVER

2шт.

30

T122075

O-Ring

OIL COOLER TO HOUSING

2шт.

31

R501428

Gasket

(SUB FOR R123502)COOLANT PASSAGE ADAPTER

1шт.

32

R500374

Gasket

OIL FILTER HEADER

1шт.

33

R123273

O-Ring

FUEL TRANSFER PUMP (PE4045HP050)

NAшт.
