169 - ENGINE FLYWHEEL HOUSING PE4045TP051 (ESN.026620-151708) (026620 - 151708)

Запчасти John Deere 20 169 - ENGINE FLYWHEEL HOUSING PE4045TP051 (ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

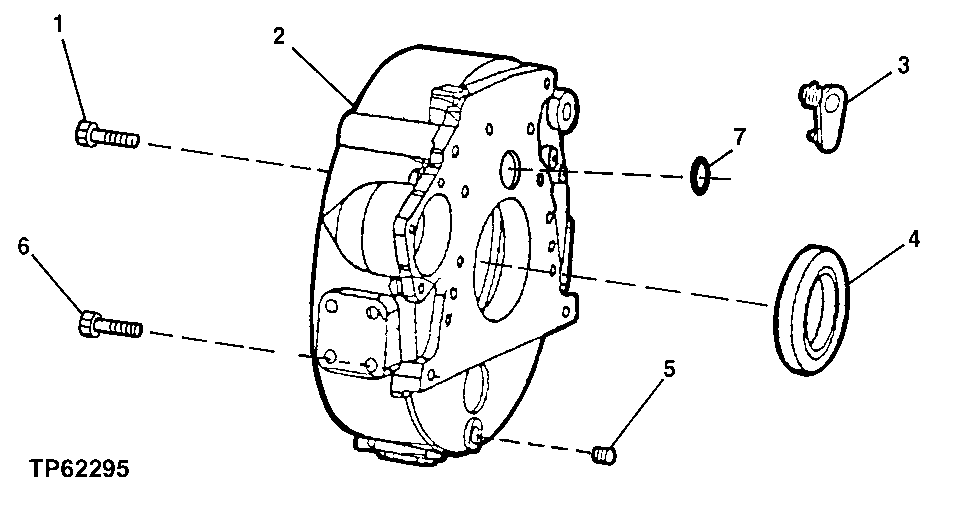

Схема запчастей John Deere 20 - 169 - ENGINE FLYWHEEL HOUSING PE4045TP051 (ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R135918

Bolt

8шт.

2

R123208

Housing

(SUB R503444 AND R61467)

1шт.

R503444

Housing

1шт.

3

R131768

Plug

1шт.

4

RE44574

Seal

1шт.

5

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

6

19M8306

Screw

M12 X 50

4шт.

7

R61467

O-Ring

1шт.

Выбрано товаров: 8
