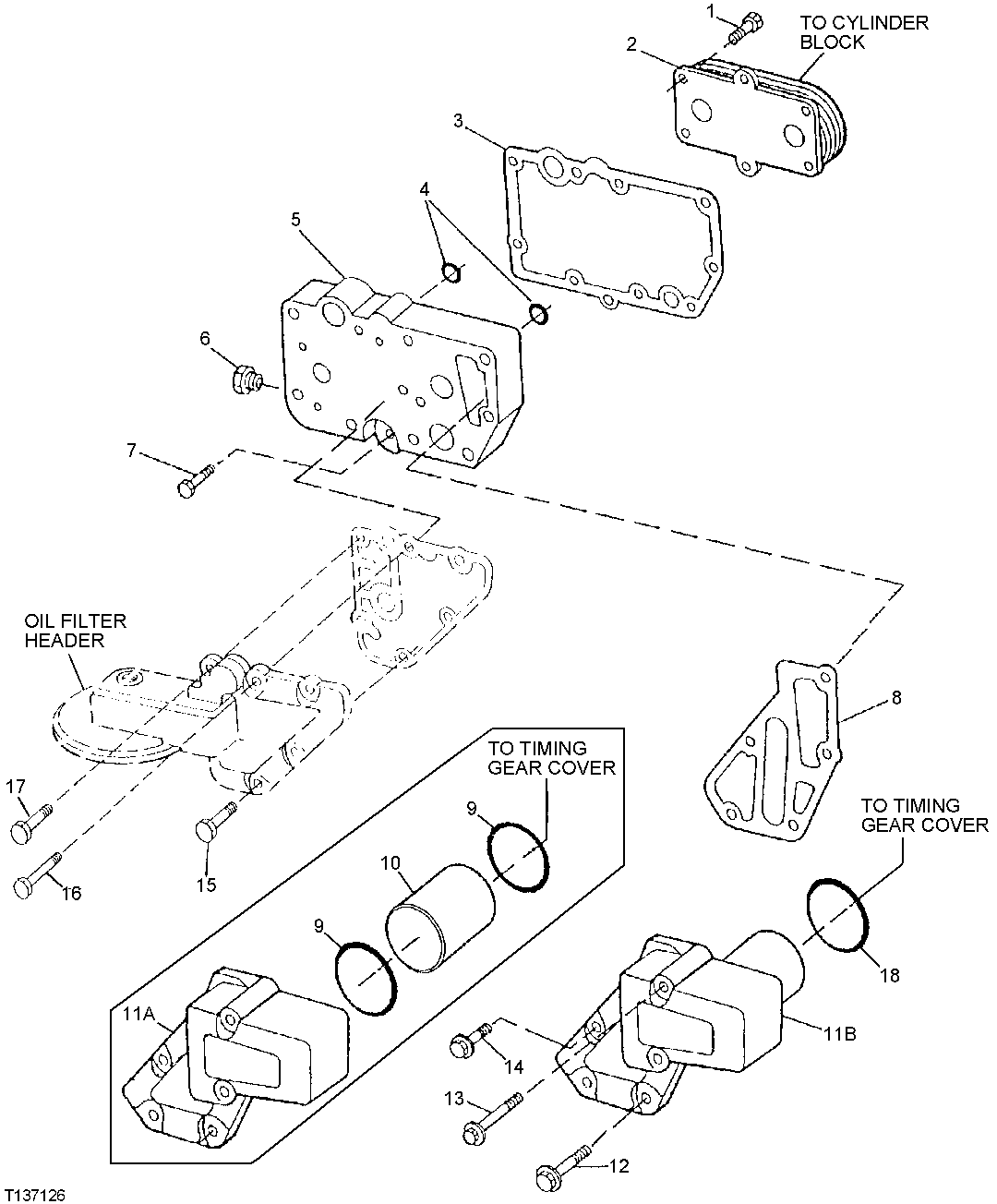

Запчасти John Deere 20 159 - ENGINE OIL COOLER PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

1

RE67231

Screw

(A)

6шт.

2

RE560753

Oil Cooler

(B) SUB FOR RE59296

1шт.

RE522820

Oil Cooler

TESTED OIL COOLER ASSEMBLY

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46686

Fitting

(M12 X 1.5)

1шт.

RE56323

Fitting Plug

SAE

ARшт.

7

RE46685

Fitting Plug

1шт.

8

R501428

Gasket

SUB FOR R123502

1шт.

9

R61105

O-Ring

ENDING SERIAL NUMBER

2шт.

10

R115252

Bushing

ENDING SERIAL NUMBER

1шт.

11A

R135177

Adapter Fitting

SUB R502811; ENDING SERIAL NUMBER

1шт.

11B

R502811

Adapter Fitting

BEGINNING SERIAL NUMBER

1шт.

12

19M7802

Screw

M8 X 65

2шт.

13

19M7970

Screw

M8 X 100

2шт.

14

RE67238

Screw

(A)

1шт.

15

19M7802

Screw

M8 X 65

4шт.

16

19M7970

Screw

M8 X 100

1шт.

17

RE67238

Screw

1шт.

18

R504734

O-Ring

BEGINNING SERIAL NUMBER

1шт.
