Запчасти John Deere 20 158 - REPLACEMENT WATER PUMP PE4045TP051(ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

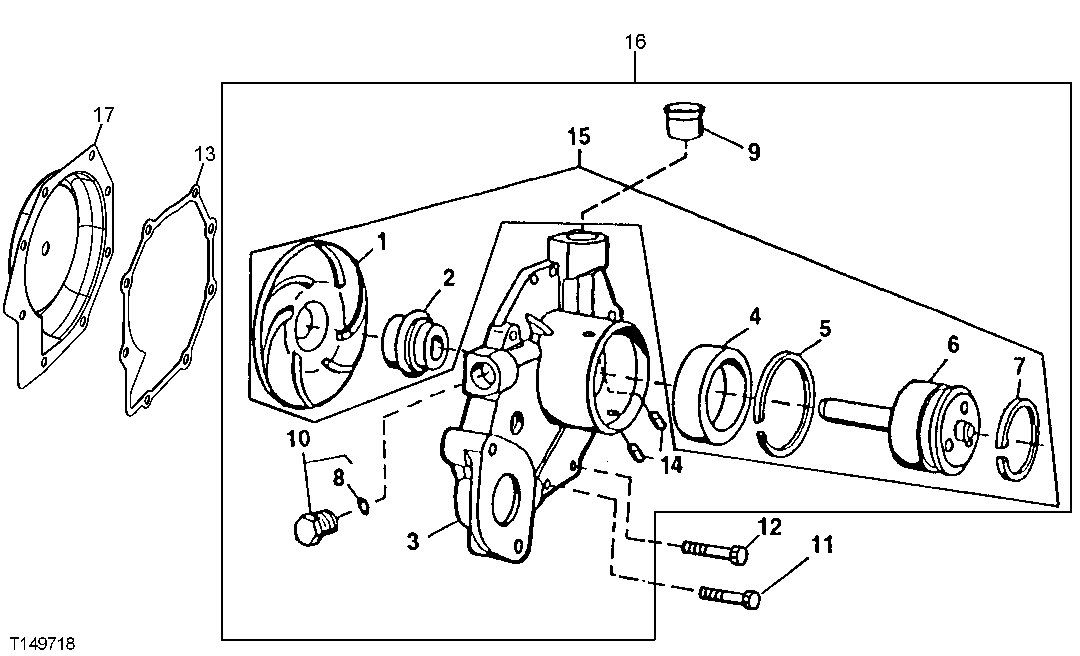

Схема запчастей John Deere 20 - 158 - REPLACEMENT WATER PUMP PE4045TP051(ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

Артикул

Название

Примечание

Количество

1

Impeller

(MARKED R123395)

1шт.

2

Seal

1шт.

3

Housing

1шт.

4

Ball Bearing

1шт.

5

Ring

1шт.

6

Shaft

1шт.

7

A364R

Snap Ring

1шт.

8

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

9

R123226

Seal

1шт.

10

RE46685

Fitting Plug

1шт.

11

19M7863

Screw

M6 X 25

5шт.

12

19M7796

Screw

M6 X 30

3шт.

13

R123417

Gasket

1шт.

14

R100369

Filter

2шт.

15

RE70962

Engine Kit

1шт.

16

RE505980

Water Pump

(MARKED R503509)

1шт.

SE501609

Water Pump Reman

(REMAN FOR RE505980)

1шт.

17

RE508566

Insert

(WATER PUMP INSERT REPAIR)

1шт.

Выбрано товаров: 18
