156 - WATER PUMP PULLEY AND INLET PE4045TP051(ESN 026620-151708) (026620 - 151708)

Запчасти John Deere 20 156 - WATER PUMP PULLEY AND INLET PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

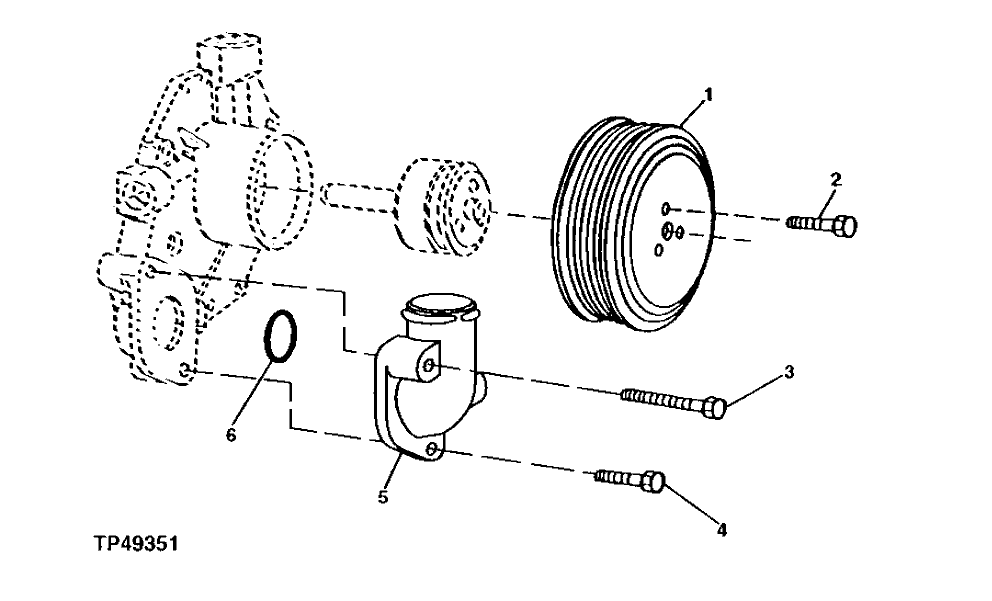

Схема запчастей John Deere 20 - 156 - WATER PUMP PULLEY AND INLET PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R115250

Pulley

PE4045TP051

1шт.

R128662

Pulley

PE4045HP050

NAшт.

2

19M7774

Screw

M6 X 12

3шт.

3

19M7802

Screw

M8 X 65

1шт.

4

19M7867

Screw

M8 X 25

1шт.

5

R121635

Elbow Fitting

1шт.

6

R89944

O-Ring

50.394 X 3.531 mm (1-63/64" X 0.139")

1шт.

Выбрано товаров: 7
