Запчасти John Deere 20 147 - FUEL INJECTION PUMP DRIVE GEAR, LUBRICATION LINE PE4045TP051(ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

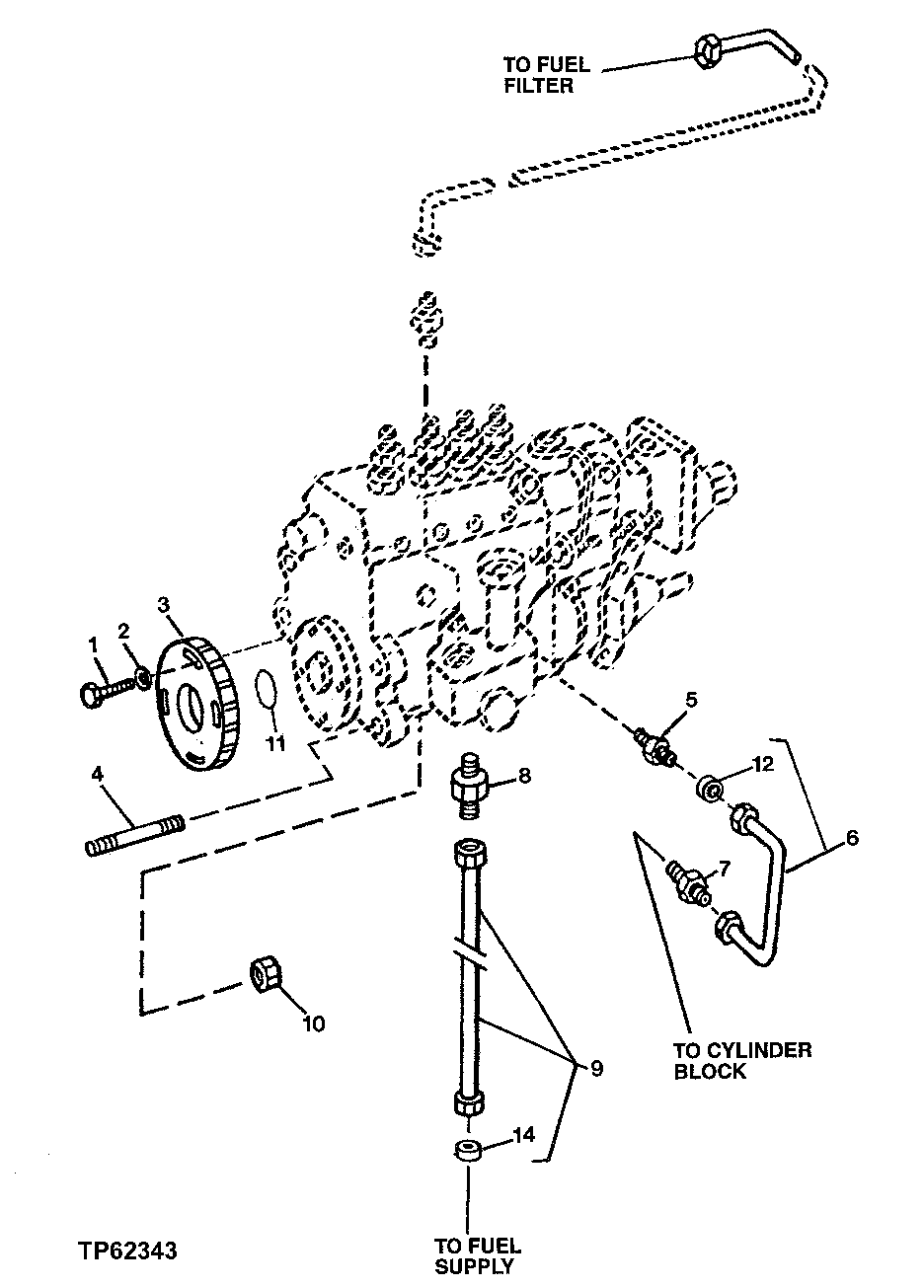

Схема запчастей John Deere 20 - 147 - FUEL INJECTION PUMP DRIVE GEAR, LUBRICATION LINE PE4045TP051(ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

Артикул

Название

Примечание

Количество

1

19H3336

Screw

3/8" X 7/8"

4шт.

2

R63845

Washer

4шт.

3

R500084

Gear

(60 TEETH)

1шт.

4

R116386

Stud

3шт.

5

RE60028

Fitting

1шт.

6

RE60063

Fuel Line

1шт.

7

R63604

Fitting

1шт.

8

RE60031

Fitting

1шт.

9

RE44843

Fuel Line

1шт.

10

14M7296

Flange Nut

M10

4шт.

11

R73864

O-Ring

1шт.

12

R51936

Sealing Washer

2шт.

13

R67092

Sealing Washer

2шт.

Выбрано товаров: 13
