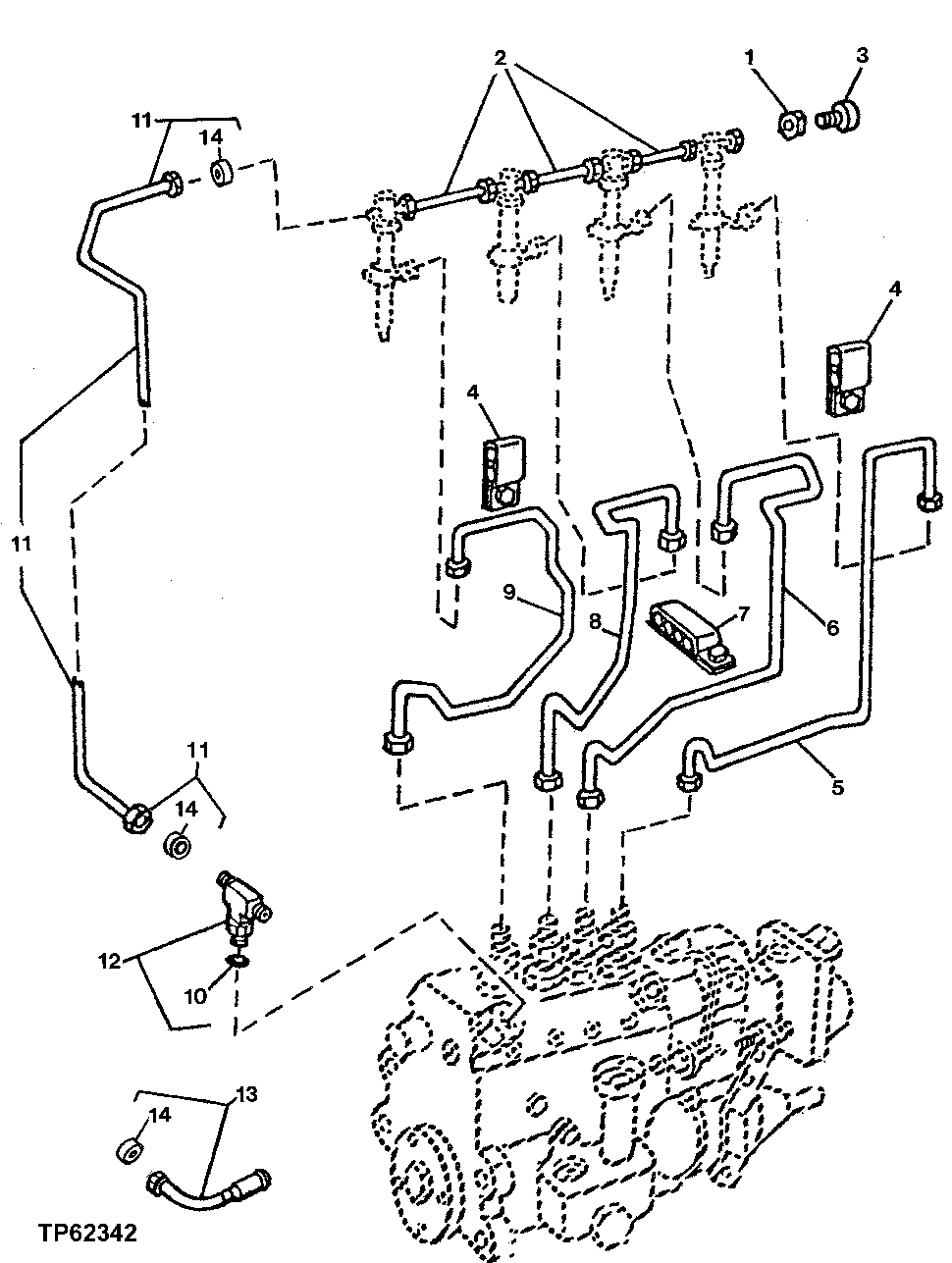

Запчасти John Deere 20 146 - FUEL INJECTION SYSTEM PE4045TP051(ESN.026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

1

R123593

Tube Nut

LEAK-OFF

1шт.

2

RE68748

Tube

3шт.

3

AR85519

Plug

1шт.

4

RE19797

Clamp

2шт.

5

RE500088

Fuel Line

(SUB FOR RE60184) NO. 4

1шт.

6

RE500087

Fuel Line

(SUB FOR RE60183) NO. 3

1шт.

7

RE19799

Clamp

1шт.

8

RE500086

Fuel Line

(SUB FOR RE60182) NO. 2

1шт.

9

RE500085

Fuel Line

(SUB FOR RE60181) NO. 1

1шт.

10

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

11

RE517282

Fuel Line

(SUB FOR RE504548)LEAK-OFF

1шт.

12

RE502175

Fitting

1шт.

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

13

RE67050

Fuel Line

LEAK-OFF

1шт.

14

R51936

Sealing Washer

3шт.
