Запчасти John Deere 20 143 - CYLINDER HEAD, VALVES, GASKET PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

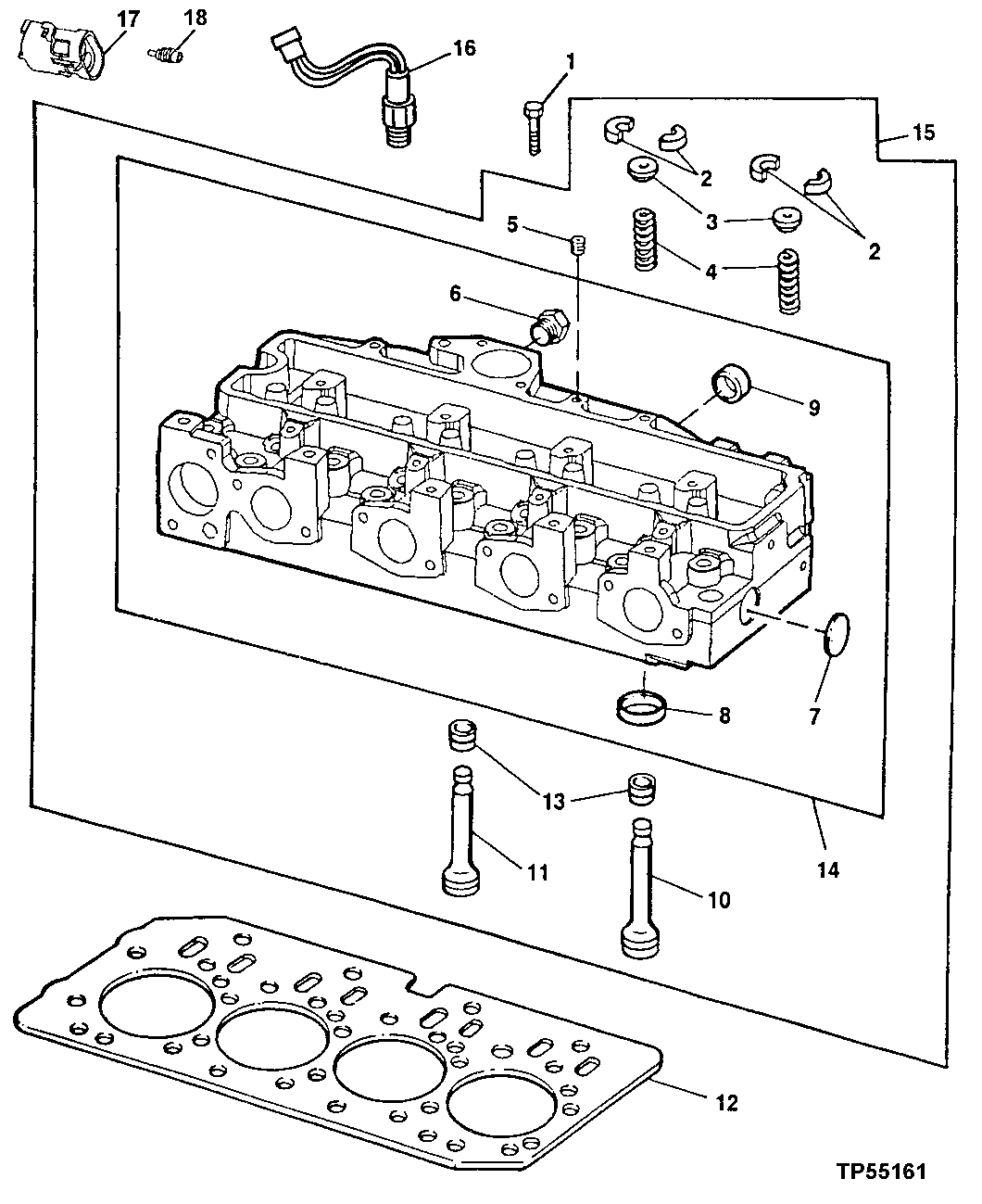

Схема запчастей John Deere 20 - 143 - CYLINDER HEAD, VALVES, GASKET PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

Артикул

Название

Примечание

Количество

1

R85363

Cap Screw

18шт.

2

R91889

Retainer

16шт.

3

RE60005

Rotator

8шт.

4

R26125

Spring

8шт.

5

R104592

Pipe Plug

1шт.

6

T58477

Fitting Plug

1шт.

R26906

O-Ring

1шт.

7

CD16284

Plug

1шт.

8

R98063

Valve Seat Insert

INTAKE VALVE

4шт.

R98335

Valve Seat Insert

OVERSIZE INTAKE VALVE

4шт.

R85687

Valve Seat Insert

EXHAUST VALVE

4шт.

R93910

Valve Seat Insert

OVERSIZE EXHAUST VALVE

4шт.

9

R43409

Plug

2шт.

10

R90692

Exhaust Valve

STD

6шт.

R97492

Exhaust Valve

OD +0.381MM

ARшт.

R97493

Exhaust Valve

OD +0.762MM

ARшт.

11

R98062

Intake Valve

STD

6шт.

R97490

Intake Valve

OD +0.381MM

ARшт.

R97491

Intake Valve

OD +0.762MM

ARшт.

12

R116515

Engine Cylinder Head Gasket

1шт.

13

RE31617

Seal

8шт.

14

Cylinder Head

(MARKED R121402)

1шт.

15

RE57234

Cylinder Head

(MARKED R121402)

1шт.

SE501579

Cylinder Head Reman

(REMAN FOR RE57234)

1шт.

16

AT174989

Switch

ENGINE COOLANT TEMPERATURE

1шт.

17

R78053

Electrical Connector Assy

1шт.

18

R78064

Elec. Connector Cavity Plug

1шт.

Выбрано товаров: 27
