135 - ENGINE OIL DIPSTICK PE4045TP051(ESN 026620-151708) (026620 - 151708)

Запчасти John Deere 20 135 - ENGINE OIL DIPSTICK PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

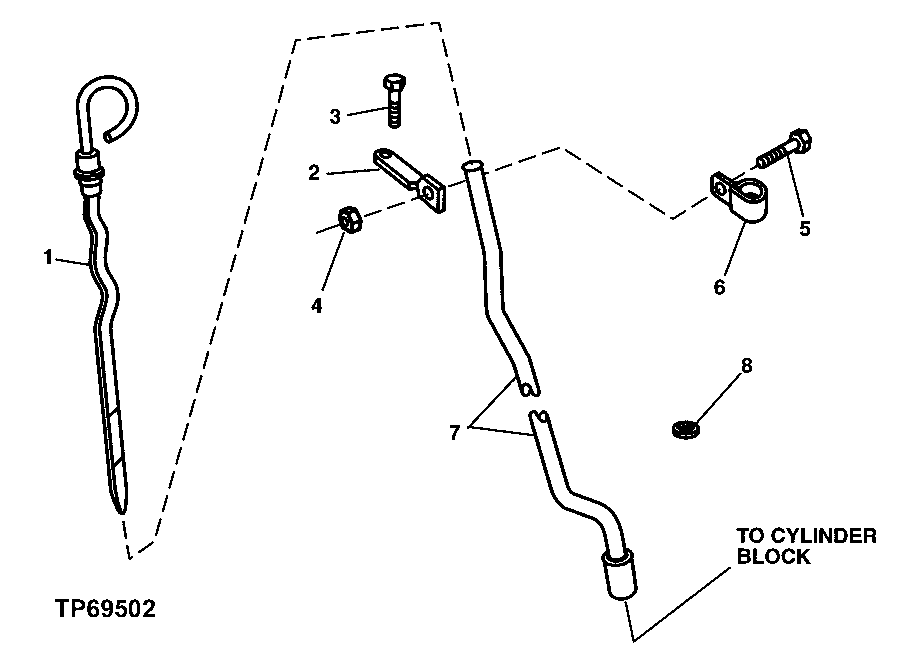

Схема запчастей John Deere 20 - 135 - ENGINE OIL DIPSTICK PE4045TP051(ESN 026620-151708) (026620 - 151708) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

RE66178

Dipstick

1шт.

2

R134552

Bracket

1шт.

3

19M7784

Eyebolt

1шт.

4

14M7298

Flange Nut

M8

1шт.

5

19M7866

Screw

M8 X 20

1шт.

6

T28862

Clamp

1шт.

7

R502465

Dipstick Tube

1шт.

8

R502725

Plug

L.H.DIPSTICK HOLE

1шт.

Выбрано товаров: 8
