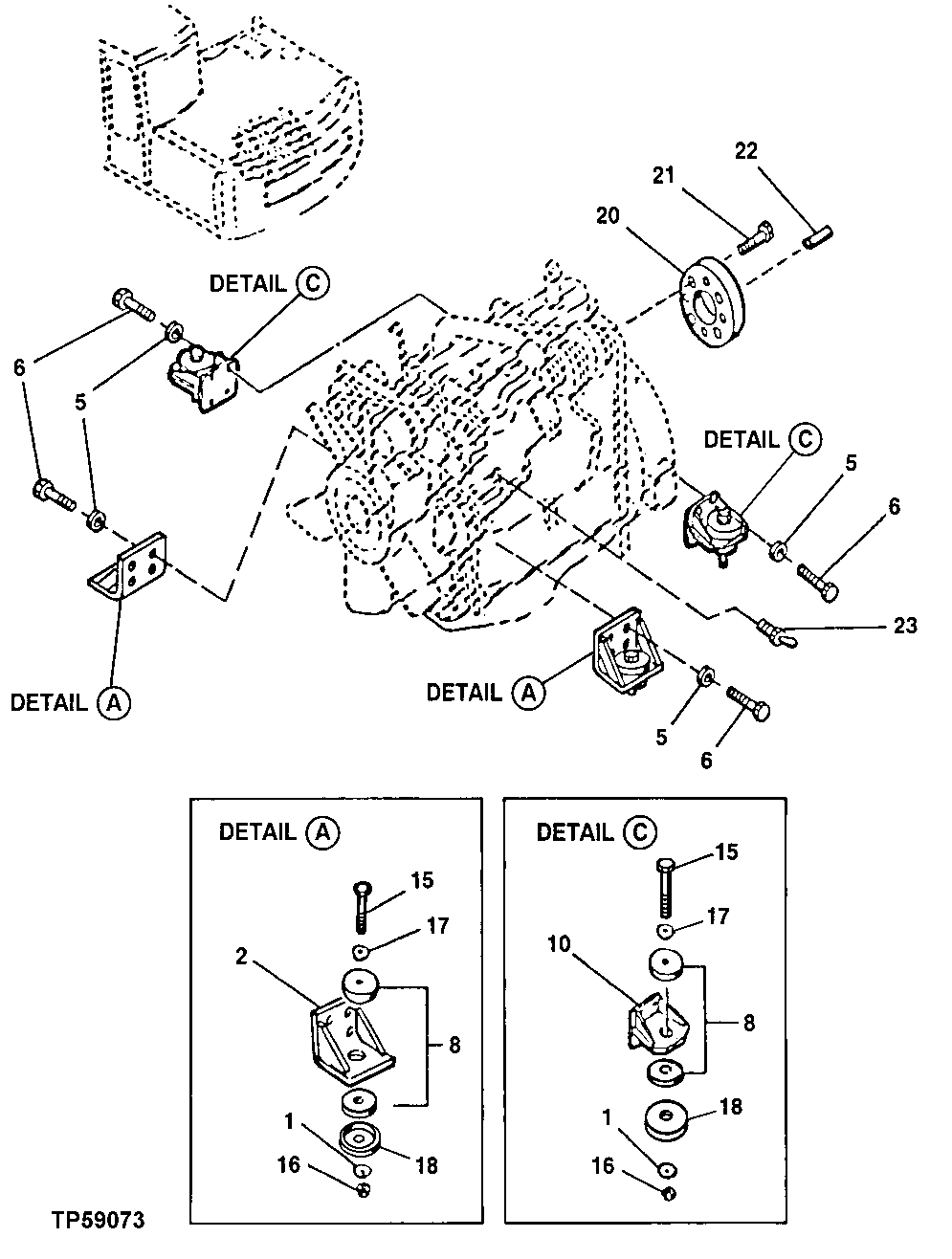

Запчасти John Deere 20 124 - ENGINE MOUNTING PARTS (PE4045TP051) (ESN 030570- ) (030570 - ) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

1

24M7241

Washer

17 X 34 X 4 mm

4шт.

2

AP35226

Support

2шт.

5

T29342

Washer

13.487 X 31.750 X 4.572 mm (17/32" X 1-1/4" X 0.180")

ARшт.

6

19M7790

Screw

M12 X 35

ARшт.

8

AP35246

Isolator

4шт.

10

AP35227

Support

2шт.

15

19M8610

Screw

M16 X 110

4шт.

16

14M7328

Lock Nut

M16

4шт.

17

R111207

Washer

(USE WITH RE60721)(ORIGINAL MOUNTS)

4шт.

18

R111207

Washer

4шт.

P61093

Retainer

4шт.

20

P64258

Spacer

1шт.

21

T108085

Cap Screw

4шт.

22

34M7117

Spring Pin

5 X 10 mm

2шт.

23

4374306

Sensor

(SUB FOR AT215102)(TEMPERATURE)

1шт.
