Запчасти John Deere 20 123 - ENGINE MOUNTING PARTS (ESN.026620-030569) PE4045TP051 (026620 - 030569) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

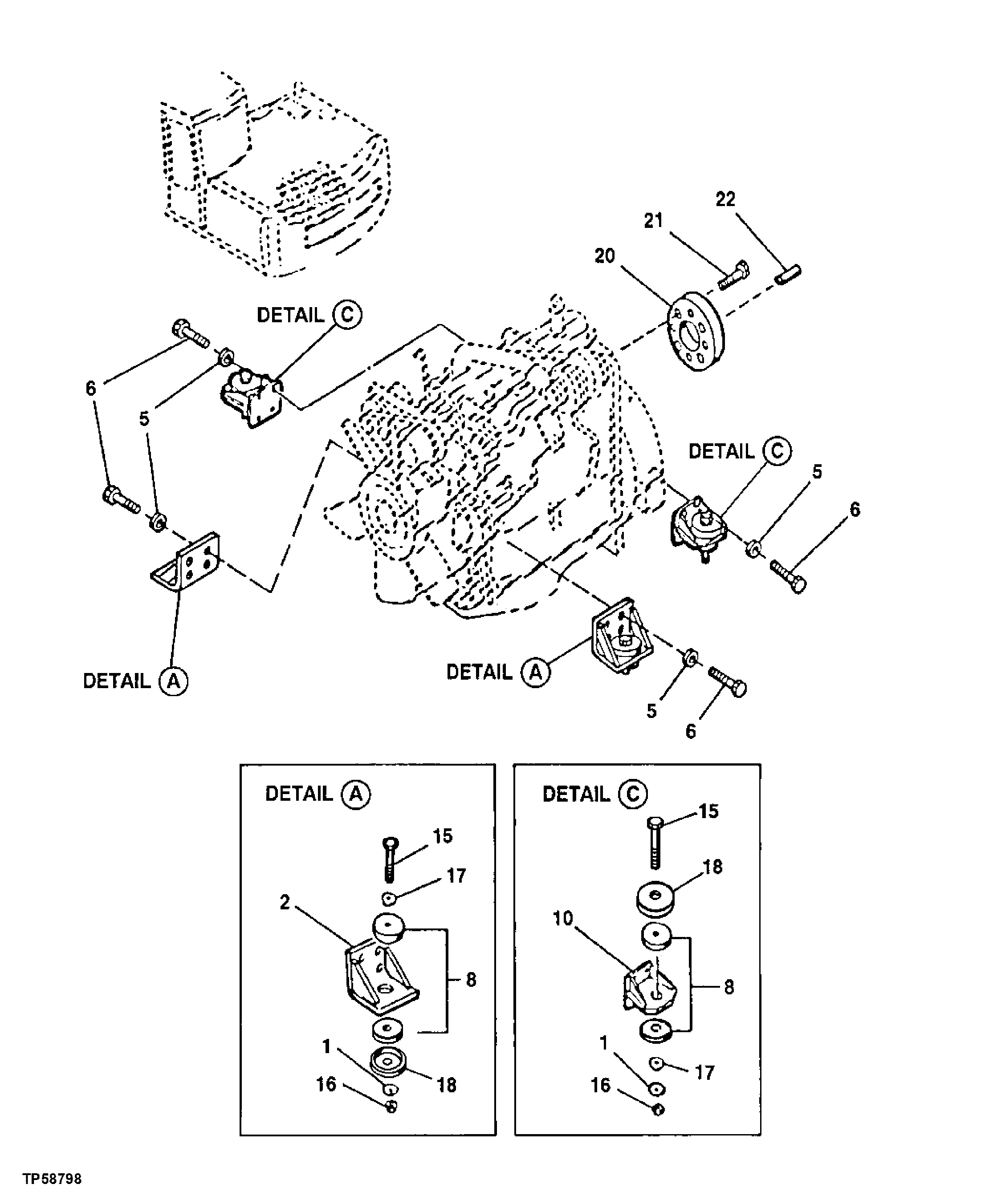

Схема запчастей John Deere 20 - 123 - ENGINE MOUNTING PARTS (ESN.026620-030569) PE4045TP051 (026620 - 030569) 0400C PE4045TP051 (ESN 026620-151708) - 120 EXCAVATOR PE4045TP051 (026620 - 151708) PE4045TP051

Артикул

Название

Примечание

Количество

1

24M7241

Washer

17 X 34 X 4 mm

4шт.

2

AP35226

Support

(SUB FOR AP33255)

2шт.

5

T29342

Washer

ARшт.

6

19M7790

Screw

M12 X 35

ARшт.

8

AP35246

Isolator

(SUB FOR RE60721 OR AP35225)

4шт.

10

AP35227

Support

(SUB FOR AP33256)

2шт.

15

19M8610

Screw

M16 X 110

4шт.

16

14M7328

Lock Nut

M16

4шт.

17

R111207

Washer

(USE WITH RE60721 ORIGINAL MOUNTS)

4шт.

18

R111207

Washer

4шт.

P61093

Retainer

4шт.

20

P64258

Spacer

1шт.

21

T108085

Cap Screw

4шт.

22

34M7117

Spring Pin

5 X 10 mm

2шт.

23

4374306

Sensor

(SUB FOR AT215102)(TEMPERATURE)

1шт.

Выбрано товаров: 15
