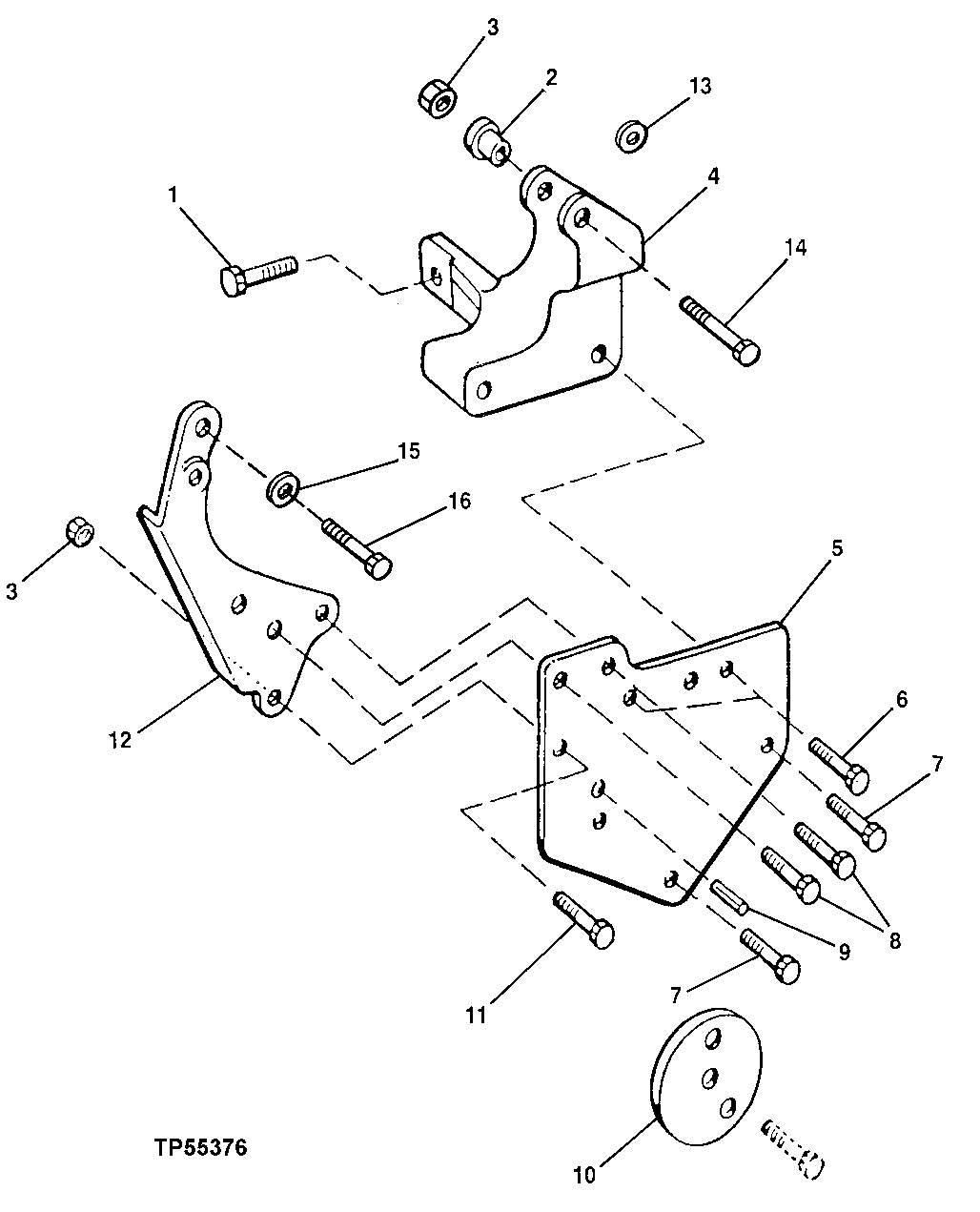

Запчасти John Deere 20 114 - ALTERNATOR MOUNTING BRACKETS (ESN -804732) ( - 804732) 0400B Engine T04045TT052 ( - 804732) T04045TT052

1

19M7786

Screw

M10 X 30

2шт.

2

R100377

Bushing

1шт.

3

14M7296

Flange Nut

M10

4шт.

4

R132166

Bracket

1шт.

5

R132168

Support

1шт.

6

19M7785

Screw

M10 X 25

2шт.

7

19M7801

Screw

M8 X 60

1шт.

8

19M7786

Screw

M10 X 30

2шт.

9

34M7061

Spring Pin

8 X 20 mm

1шт.

10

R500321

Spacer

(SUB FOR R132169)

1шт.

11

19M7786

Screw

M10 X 30

3шт.

12

R132167

Strap

1шт.

13

R64525

Thrust Washer

1шт.

14

19M7812

Screw

M10 X 100

1шт.

15

R48808

Washer

1шт.

16

19M7867

Screw

M8 X 25

1шт.
