Запчасти John Deere 20 95 - FUEL INJECTION SYSTEM (ESN -804732) ( - 804732) 0400B Engine T04045TT052 ( - 804732) T04045TT052

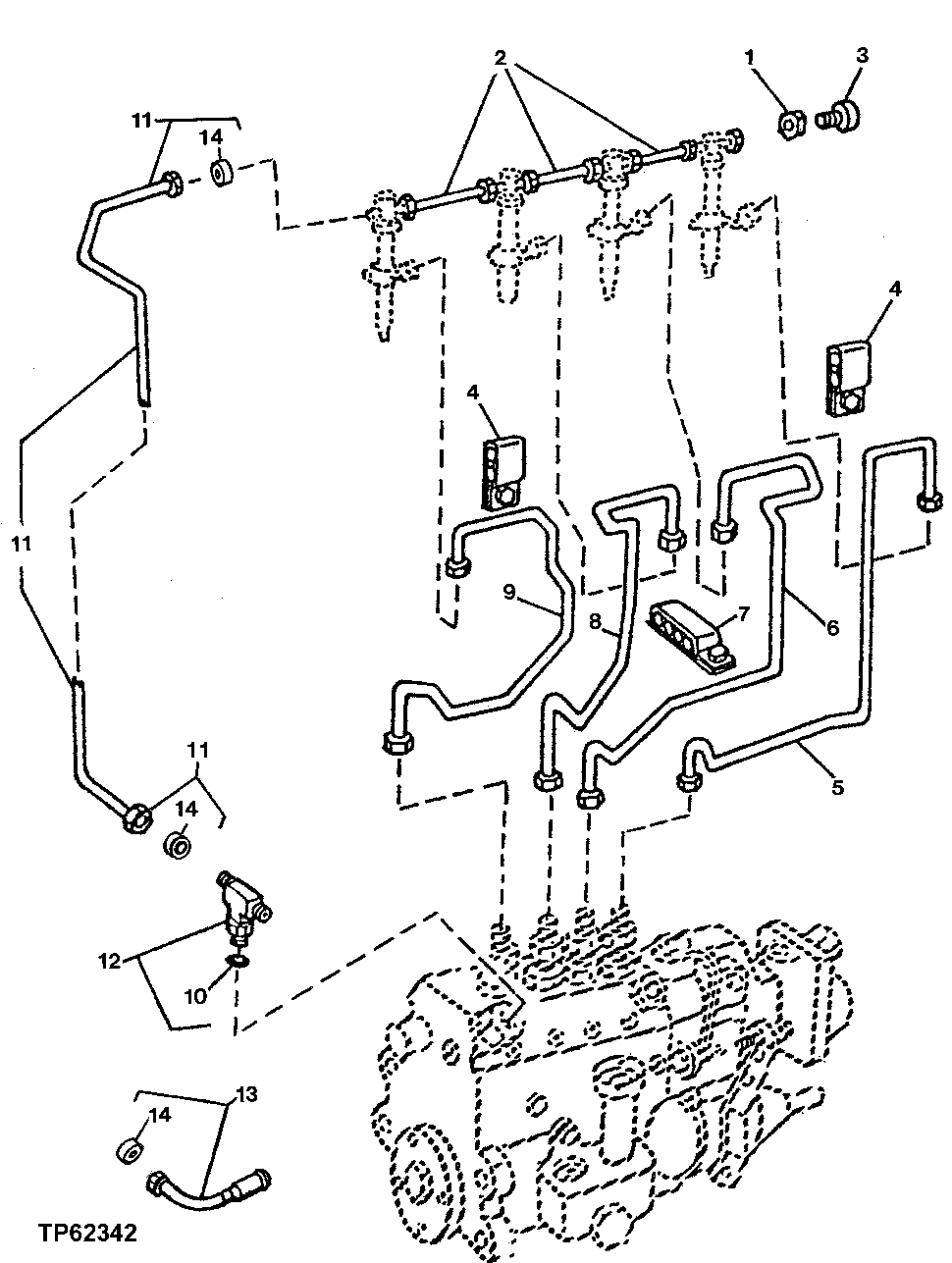

Схема запчастей John Deere 20 - 95 - FUEL INJECTION SYSTEM (ESN -804732) ( - 804732) 0400B Engine T04045TT052 ( - 804732) T04045TT052

Артикул

Название

Примечание

Количество

1

R123593

Tube Nut

LEAK-OFF

1шт.

2

RE68748

Tube

3шт.

3

AR85519

Plug

1шт.

4

RE19797

Clamp

2шт.

5

RE500088

Fuel Line

(SUB FOR RE60184) NO. 4

1шт.

6

RE500087

Fuel Line

(SUB FOR RE60183) NO. 3

1шт.

7

RE19799

Clamp

1шт.

8

RE500086

Fuel Line

(SUB FOR RE60182) NO. 2

1шт.

9

RE500085

Fuel Line

(SUB FOR RE60181) NO. 1

1шт.

10

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

11

RE60175

Fuel Line

LEAK-OFF

1шт.

12

RE502175

Fitting

(SUB FOR RE66742)

1шт.

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

13

RE67050

Fuel Line

LEAK-OFF

1шт.

14

R51936

Sealing Washer

3шт.

Выбрано товаров: 15
