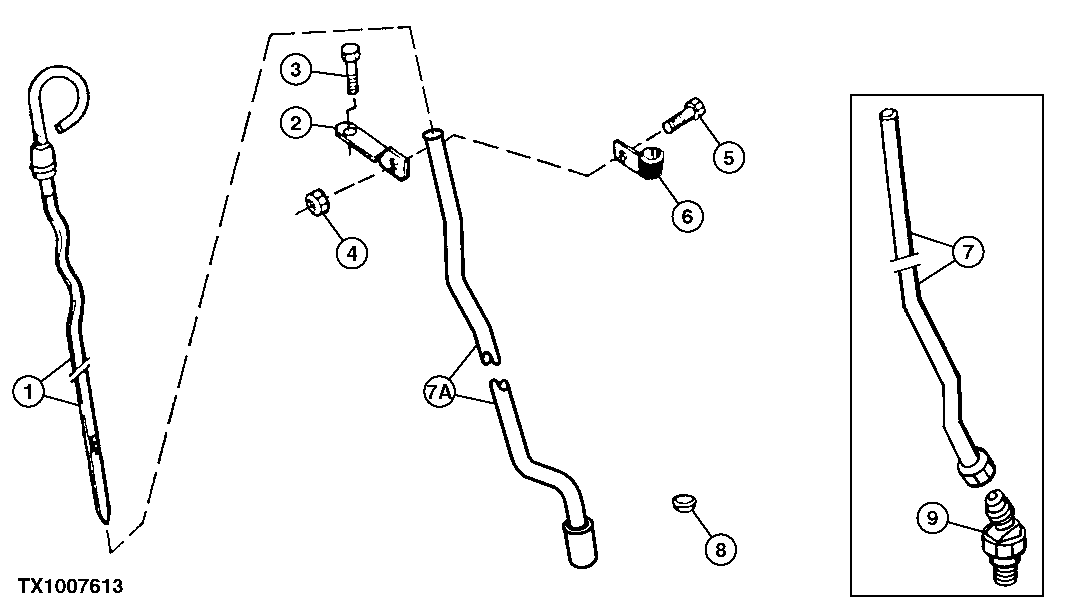

Запчасти John Deere 10 39 - Engine Oil Dipstick (026650 - ) 0407A Engine Oiling System 4045TP052 4045TP052

1

RE66178

Dipstick

1шт.

2

R134552

Bracket

1шт.

3

19M7784

Screw

M10 X 20

1шт.

4

14M7298

Flange Nut

M8

1шт.

5

19M7866

Screw

M8 X 20

1шт.

6

T28862

Clamp

1шт.

7

RE503848

Dipstick Tube

(SUB FOR RE70116)

ARшт.

7A

R502465

Dipstick Tube

(SUB FOR R130886 AND R500453)

ARшт.

8

R502725

Plug

Left Dipstick Hole (SUB FOR R134240)

1шт.

9

R135749

Elbow Fitting

(SUB FOR RE70120 ) (USE WITH RE70116 OR RE503848)

1шт.
