35 - REPLACEMENT ENGINE OIL FILTER HEADER KIT, PE4045TP052 (ESN 026650- ) (026650 - )

Запчасти John Deere 10 35 - REPLACEMENT ENGINE OIL FILTER HEADER KIT, PE4045TP052 (ESN 026650- ) (026650 - ) 0407A Engine Oiling System 4045TP052 4045TP052

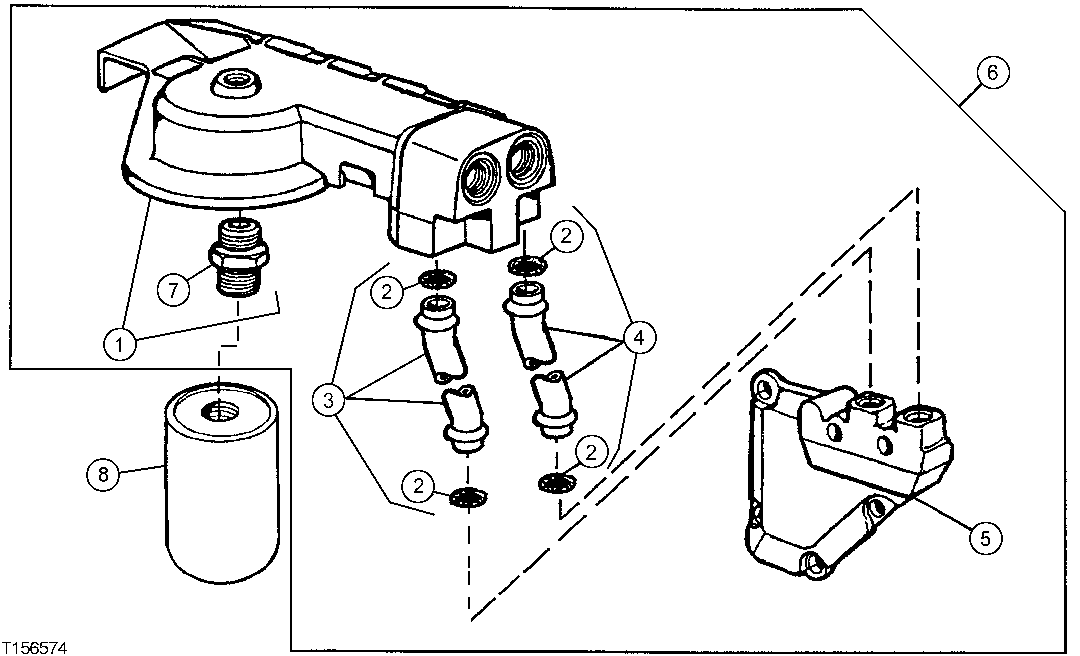

Схема запчастей John Deere 10 - 35 - REPLACEMENT ENGINE OIL FILTER HEADER KIT, PE4045TP052 (ESN 026650- ) (026650 - ) 0407A Engine Oiling System 4045TP052 4045TP052
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

RE503727

Filter Head

(MARKED R501439)

1шт.

2

R56462

O-Ring

4шт.

3

RE502660

Tube

(REAR)

1шт.

RE506818

Tube

1шт.

4

RE502661

Tube

(FRONT)

1шт.

RE506819

Tube

1шт.

5

R501436

Adapter

1шт.

6

RE509313

Filter Kit

(SUB FOR RE509313)

1шт.

7

Adapter Fitting

( R123591 NLA) (ORDER RE503727)

1шт.

8

RE59754

Oil Filter

1шт.
