Запчасти John Deere 10 23 - Crankshaft, Gear and Main Bearings (026650 - ) 0401A Crankshaft And Main Bearing 4045TP052 4045TP052

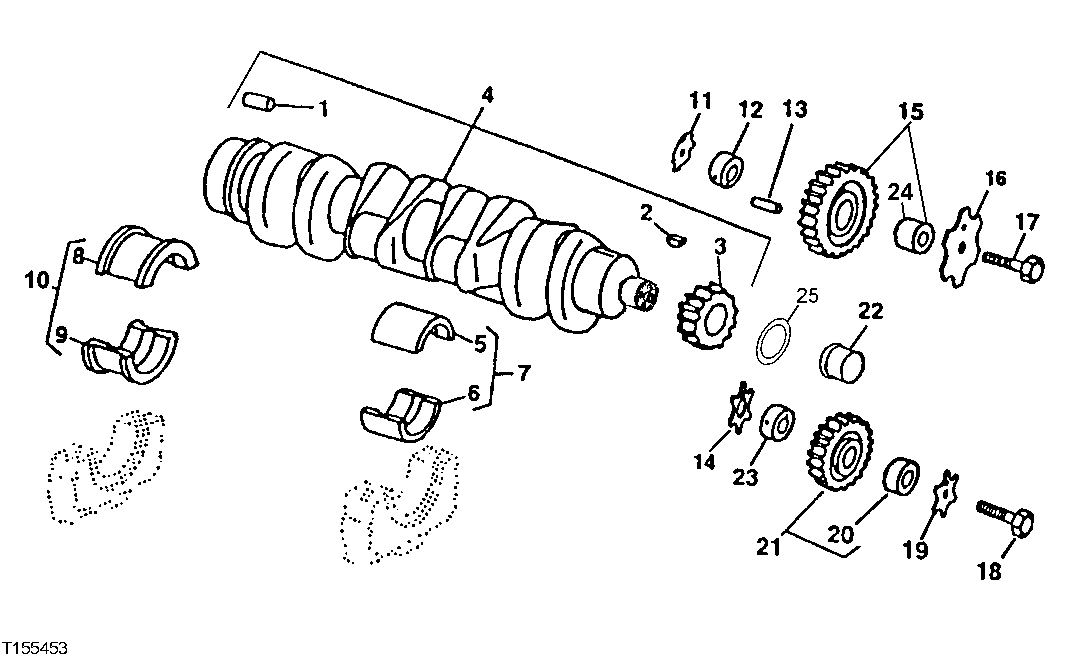

Схема запчастей John Deere 10 - 23 - Crankshaft, Gear and Main Bearings (026650 - ) 0401A Crankshaft And Main Bearing 4045TP052 4045TP052

Артикул

Название

Примечание

Количество

1

R48685

Dowel Pin

1шт.

2

26M4224

Shaft Key

4 X 16 mm

1шт.

R505609

Shaft Key

1шт.

3

R120631

Gear

(Z=30)

1шт.

4

RE50618

Crankshaft

(MARKED R113596 ) (SUB RE504638 A ND RE516340) (ALSO ORDER RE59811)

1шт.

RE504638

Crankshaft

(ALSO ORDER RE516340 ) (MARKED R113596)

1шт.

SE501654

Crankshaft Reman

(A) REMAN FOR RE504638

1шт.

5

Bearing

(STD) (UPPER) (MARKED R123561)

4шт.

6

Bearing

(STD) (LOWER) (MARKED R123562)

4шт.

7

RE65165

Bearing Kit

(STD)

4шт.

8

Bearing

(STD) (UPPER) (MARKED R123563)

1шт.

9

Bearing

(STD) (LOWER) (MARKED R123564)

1шт.

10

RE65168

Bearing Kit

(STD)

1шт.

11

R101225

Thrust Washer

1шт.

12

R109863

Shaft

(UPPER)

1шт.

13

34H288

Spring Pin

3/16" X 1-3/4"

ARшт.

14

R101225

Thrust Washer

1шт.

15

RE500631

Gear

1шт.

16

R131283

Thrust Washer

1шт.

17

19M8844

Screw

M10 X 60

1шт.

18

19M8966

Screw

M10 X 50

1шт.

19

R131283

Thrust Washer

1шт.

20

R114193

Bushing

1шт.

21

RE56369

Gear

1шт.

22

RE59811

Sleeve

1шт.

23

R114194

Shaft

1шт.

24

T20034

Bushing

1шт.

25

RE516340

Seal Kit

1шт.

Выбрано товаров: 28
