330 - Swing Motor and Gear Box

Запчасти John Deere 10 330 - Swing Motor and Gear Box 4360 Hydraulics

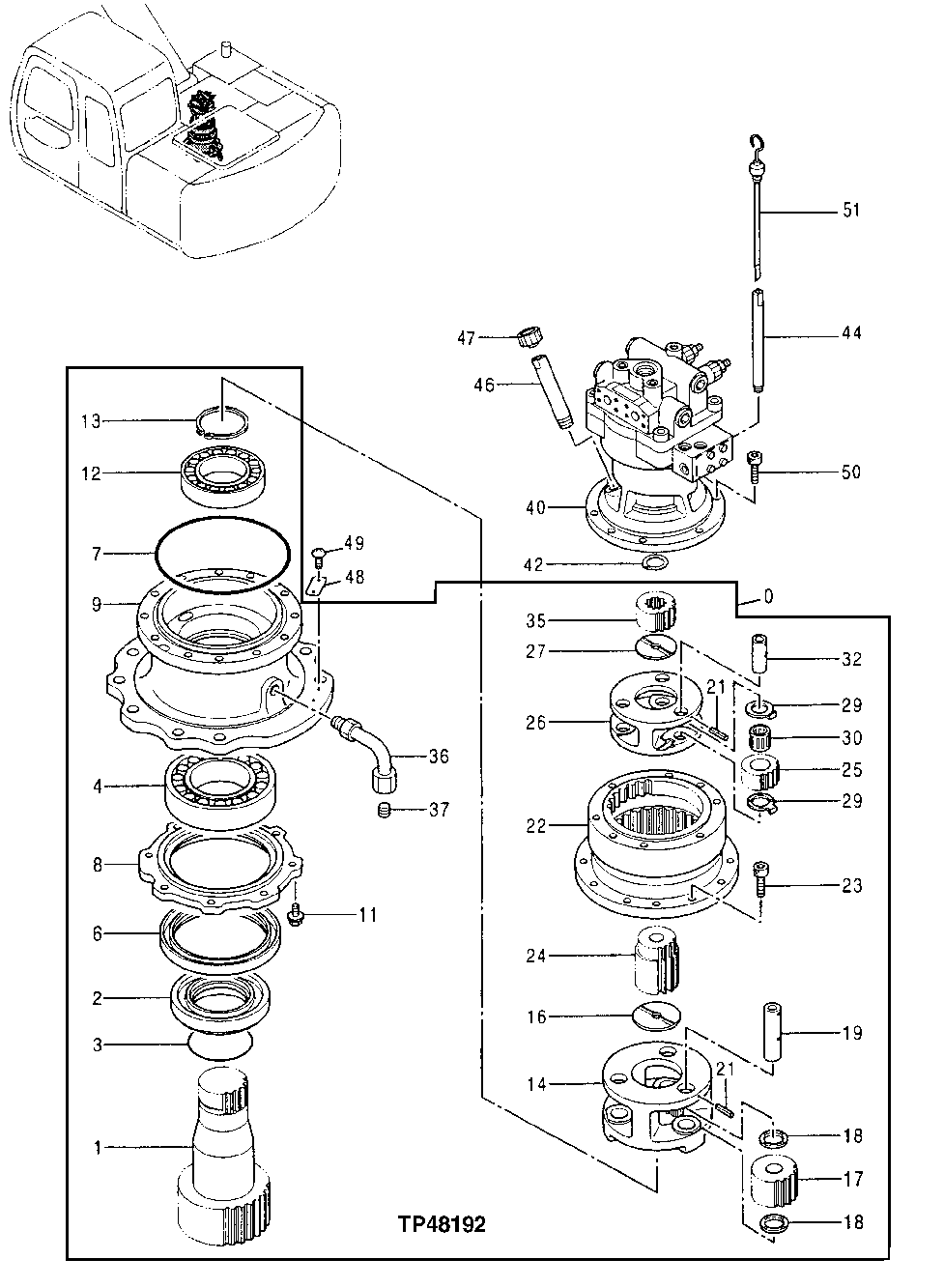

Схема запчастей John Deere 10 - 330 - Swing Motor and Gear Box 4360 Hydraulics
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

9148921

Device

(W/O SWING MOTOR) (SUB FOR AT216011)

1шт.

1

2036830

Shaft

(SUB FOR AT215845)

1шт.

2

4244693

Sleeve

(SUB FOR AT154178)

1шт.

3

AT264319

O-Ring

99.400 X 3.100 mm (3.913" X 0.122") (SUB FOR T110447)

1шт.

4

TH109489

Spherical Roller Bearing

1шт.

6

AT154177

Seal

1шт.

7

AT154182

O-Ring

214.300 X 3.100 mm (8-7/16" X 0.122")

1шт.

8

3058620

Cover

(SUB FOR AT158506)

1шт.

9

1020380

Housing

(SUB FOR AT215834)

1шт.

11

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.

12

TH108271

Spherical Roller Bearing

1шт.

13

40M7150

Snap Ring

1шт.

14

2036804

Planet Pinion Carrier

(SUB FOR AT215843)

1шт.

16

4258089

Plate

(SUB FOR AT154249)

1шт.

17

9742788

Gear

(SUB FOR AT216025)

3шт.

18

4266255

Plate

(SUB FOR AT154298)

6шт.

19

4337638

Bushing

(SUB FOR AT215902)

3шт.

21

4116308

Spring Pin

(SUB FOR AT215878)

6шт.

22

2036811

Ring Gear

(SUB FOR AT215844)

1шт.

23

M341440

Screw

(SUB FOR AT201961)

12шт.

24

3069697

Sun Gear

(SUB FOR AT215858)

1шт.

25

3069725

Gear

(SUB FOR AT215859)

3шт.

26

2036832

Planet Pinion Carrier

(SUB FOR AT215846)

1шт.

27

4641995

Plate

(SUB FOR TH108259 OR 4176070)

1шт.

29

4269480

Plate

(SUB FOR AT154307)

6шт.

30

4330377

Needle Bearing

(SUB FOR AT215887)

3шт.

32

4337637

Bushing

(SUB FOR AT215901)

3шт.

35

3069727

Sun Gear

(SUB FOR AT215860)

1шт.

36

8050210

Line

(SUB FOR AT154499)

1шт.

37

94-2012

Fitting Plug

(SUB FOR TH100653)

1шт.

40

4330218

Oil

NLA (ORDER 4330218EX)

1шт.

AT183677

Hydraulic Motor

NLA (ORDER 4330218EX)

1шт.

4330218EX

Hydraulic Motor Reman

(REMAN FOR 4330218 OR AT1 83677) (SUB FOR AT218387)

1шт.

42

40M7084

Snap Ring

1шт.

44

4264452

Tube

(SUB FOR AT154293)

1шт.

46

4255227

Line

(SUB FOR AT154226)

1шт.

47

4298608

Cap

(SUB FOR AT154225)

1шт.

48

Identification Plate

1шт.

49

37H99

Screw

0.100" X 1/4"

2шт.

50

19M8440

Screw

M10 X 25

7шт.

51

3074223

Dipstick

(SUB FOR AT213790)

1шт.
