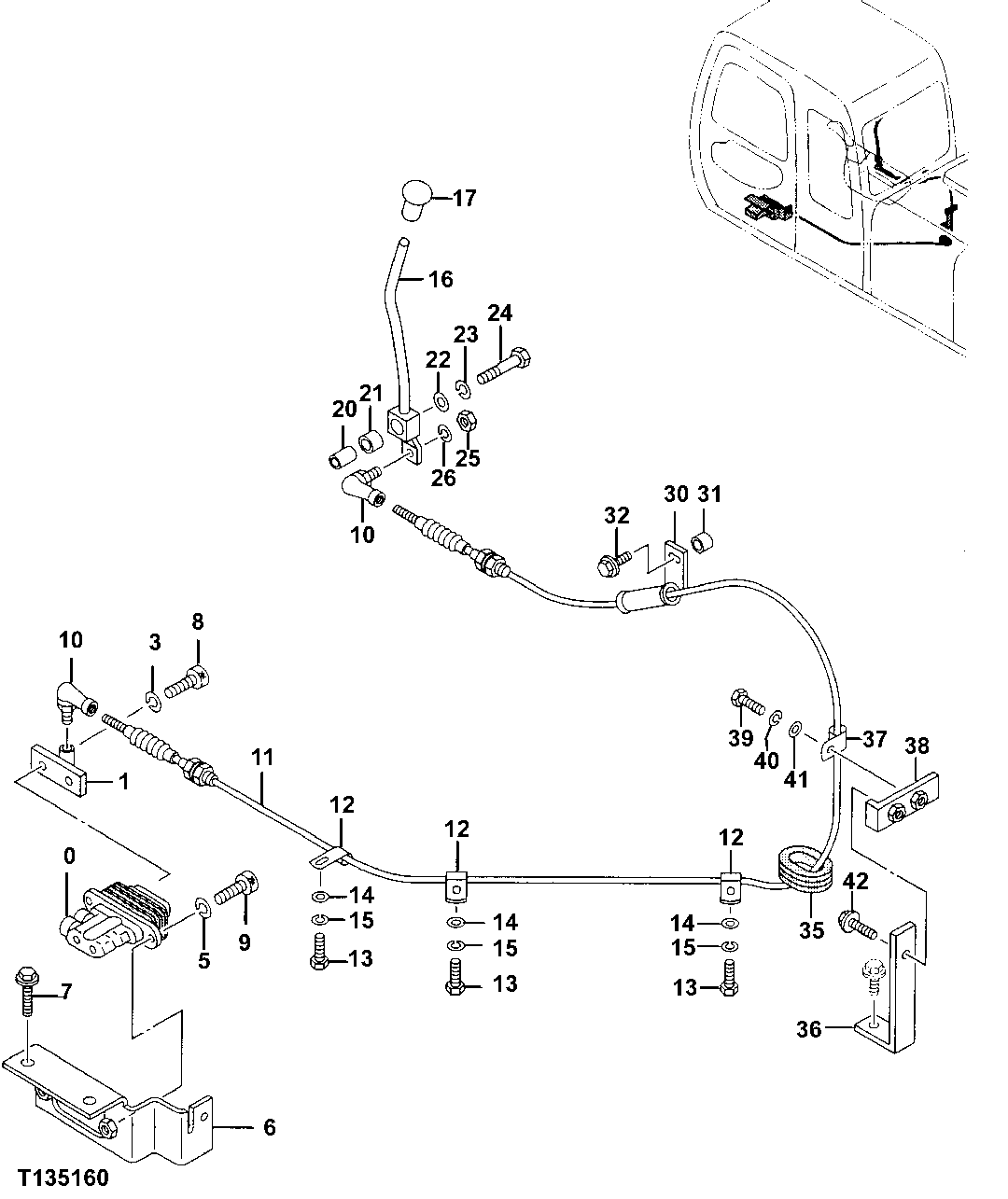

Запчасти John Deere 10 329 - Blade Control Lever 3415 Controls Linkage

0

4330467

Flow Control Hyd. Valve

Pilot SUB FOR AP34893

1шт.

1

9754977

Bracket

SUB FOR AT193984, TH9745906 AND 9745906

1шт.

3

12M7066

Lock Washer

10 mm

2шт.

5

12M7066

Lock Washer

10 mm

2шт.

6

7033089

Bracket

SUB FOR AT193985 OR TH7033089

1шт.

7

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

8

J781020

Bolt

SUB FOR P65776

2шт.

9

19M7576

Screw

M10 X 30 SUB FOR J781030

2шт.

10

4722815

Ball Joint

SUB FOR 4056017 AND TH102073

2шт.

11

4385352

Cable

SUB FOR AT193486 OR TH4385352

1шт.

12

4190261

Clip

SUB FOR TH109649

3шт.

13

19M7938

Cap Screw

M10 X 20

3шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

15

12M7066

Lock Washer

10 mm

3шт.

16

8069533

Lever

SUB FOR TH8069533 OR AT193987

1шт.

17

4280117

Grip

SUB FOR P65874

1шт.

20

4279507

Bushing

SUB FOR P65873

1шт.

21

4280297

Bushing

SUB FOR AT251195

1шт.

22

24H1748

Washer

1/2" X 1-1/4" X 0.105"

1шт.

23

12H301

Lock Washer

1/2"

1шт.

24

19M7496

Cap Screw

M12 X 45

1шт.

25

14M7272

Nut

M6

1шт.

26

12M7006

Lock Washer

6 mm

1шт.

30

8068766

Bracket

SUB FOR AT193988 OR TH8068766

1шт.

31

4383309

Spacer

SUB FOR AT193989 OR TH4383309

1шт.

32

19M7513

Cap Screw

M8 X 30 SUB FOR 19M7288

1шт.

35

4276794

Grommet

SUB FOR AT154344

1шт.

36

4384264

Plate

SUB FOR AT193990 OR TH4384264

1шт.

37

4190261

Clip

SUB FOR TH109649

1шт.

38

8748549

Bracket

SUB FOR AT193991 OR TH9748549

1шт.

39

19M7662

Cap Screw

M10 X 30

1шт.

40

12M7066

Lock Washer

10 mm

1шт.

41

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

42

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.
