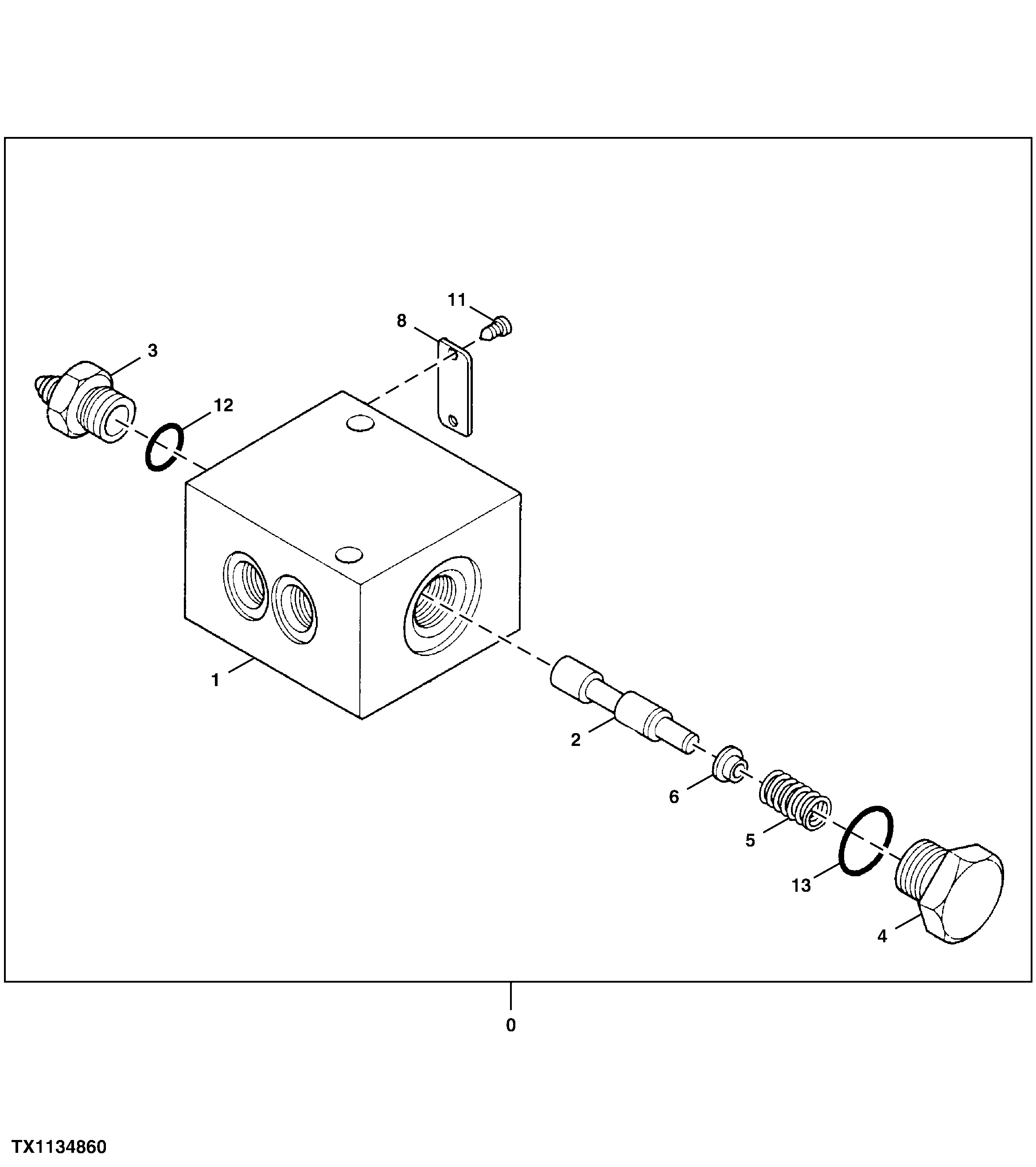

Запчасти John Deere 10 328 - Blade Shuttle Valve (Right Console) 3401 Blade

0

4203446

Flow Control Hyd. Valve

SUB FOR AT126356

1шт.

1

Housing

NSEP

1шт.

2

0380503

Spool

SUB FOR AT201972

1шт.

3

Connector

NSEP

1шт.

4

Plug

NSEP

1шт.

5

Spring

NSEP

1шт.

6

Retainer

NSEP

1шт.

8

Identification Plate

1шт.

11

0208717

Screw

SUB FOR TH102697

2шт.

12

M800650

Packing

1шт.

13

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.
