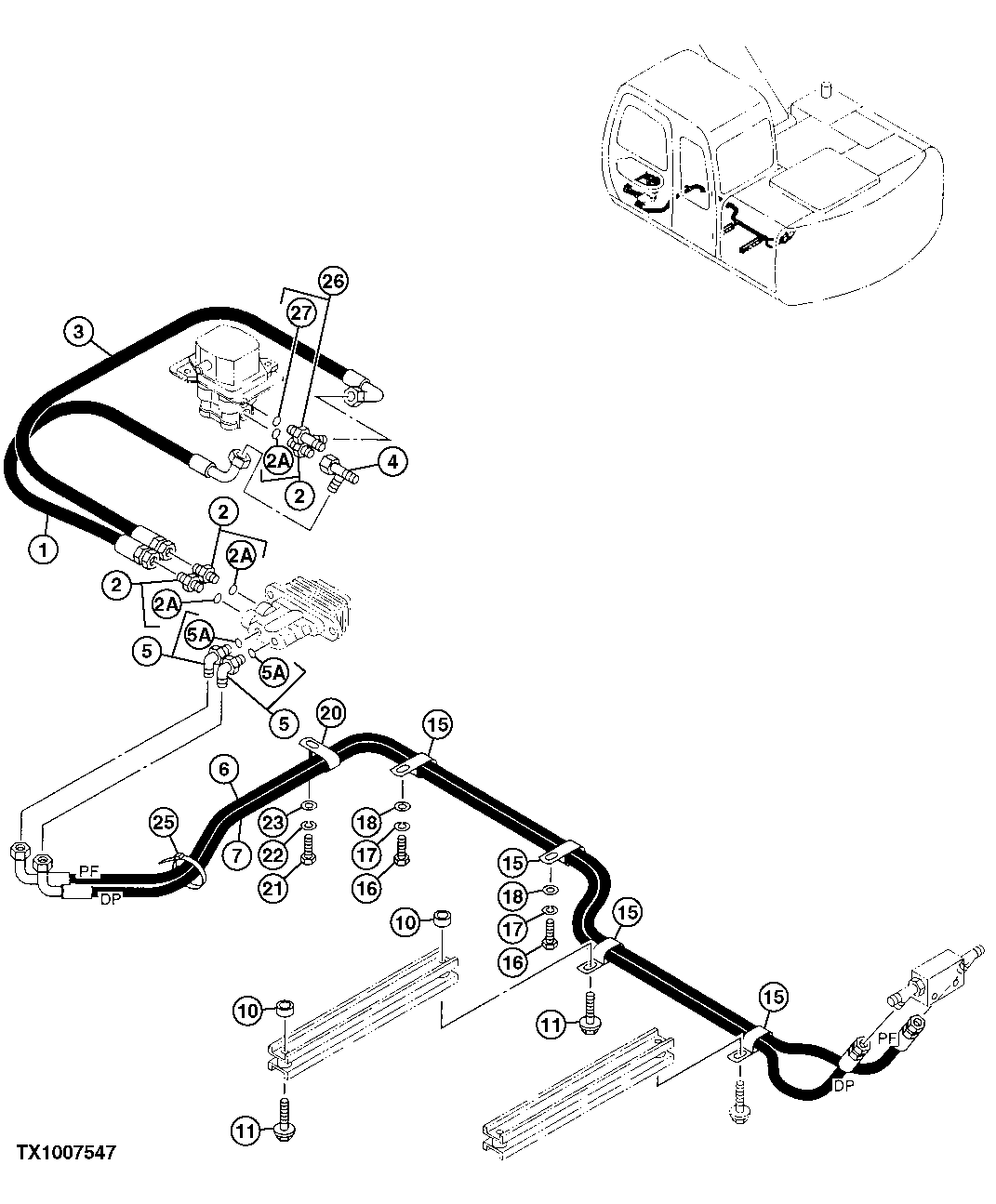

Запчасти John Deere 10 319 - BLADE PILOT HOSES (RIGHT CONSOLE) 3401 Blade

1

AT193992

Hydraulic Hose

(SUB FOR TH4282194)

1шт.

2

4200467

Adapter Fitting

(SUB FOR TH108417)

3шт.

2A

M800650

Packing

1шт.

3

AT219675

Hydraulic Hose

9/16" X 700 mm (27-1/2") X 9/16"

1шт.

4

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

5

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

5A

M800650

Packing

1шт.

6

4350169

Hose

(SUB FOR TH4350169 OR AT193993)

1шт.

7

4350169

Hose

(SUB FOR TH4333391 OR AT193993)

1шт.

10

4383308

Spacer

(SUB FOR TH4383308, AT193995)

2шт.

11

19M8012

Cap Screw

M10 X 45

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

15

T32854

Clamp

4шт.

16

19M7938

Cap Screw

M10 X 20

2шт.

17

12M7066

Lock Washer

10 mm

2шт.

18

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

T32854

Clamp

1шт.

21

19M7938

Cap Screw

M10 X 20

1шт.

22

12M7066

Lock Washer

10 mm

1шт.

23

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

25

H77698

Tie Band

1шт.

26

4207300

Tee Fitting

(SUB FOR AT126381)

1шт.

27

M800650

Packing

1шт.
