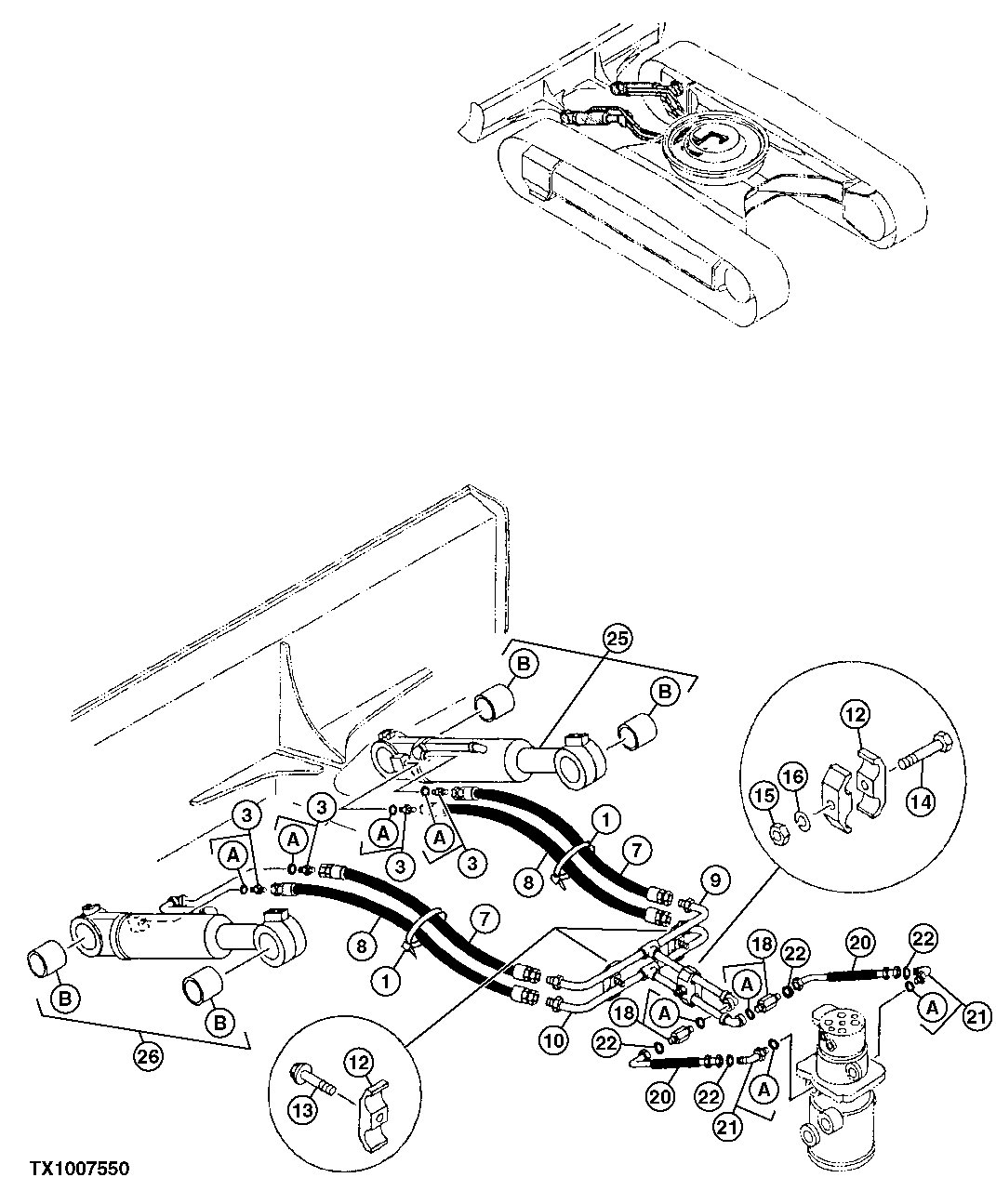

Запчасти John Deere 10 316 - BLADE HYDRAULIC HOSES 3401 Blade

1

H77698

Tie Band

2шт.

3

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

AP34950

Hydraulic Hose

(SUB FOR AP34949)

2шт.

8

AP34950

Hydraulic Hose

2шт.

9

8064678

Oil Tube

(SUB FOR AP34954)

1шт.

10

8064677

Oil Tube

(SUB FOR AP34953)

1шт.

12

4189858

Clamp

(SUB FOR TH108333)

4шт.

13

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

14

19M7363

Cap Screw

M12 X 60

1шт.

15

14M7275

Nut

M12

1шт.

16

12H301

Lock Washer

1/2"

1шт.

18

P64907

Adapter Fitting

2шт.

18A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

20

AP34899

Hydraulic Hose

2шт.

21

A853344

Elbow Fitting

(SUB FOR TH108401, 4200580)

2шт.

21A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

22

T77857

O-Ring

4шт.

25

AP34961

Hydraulic Cylinder

Blade, Right (USE UNTIL EXHAUSTED)

1шт.

8076486

Hydraulic Cylinder

Blade, Right (SUB FOR AP 34961 ) (SUB FOR AP35786)

1шт.

25B

4376210

Bushing

(SUB FOR P64892)

2шт.

26

AP34962

Hydraulic Cylinder

Blade, Left (USE UNTIL EXHAUSTED)

1шт.

9169000

Hydraulic Cylinder

Blade, Left (SUB FOR AP3 4962 ) (SUB FOR AP35787)

1шт.

26B

4376210

Bushing

(SUB FOR P64892)

2шт.
