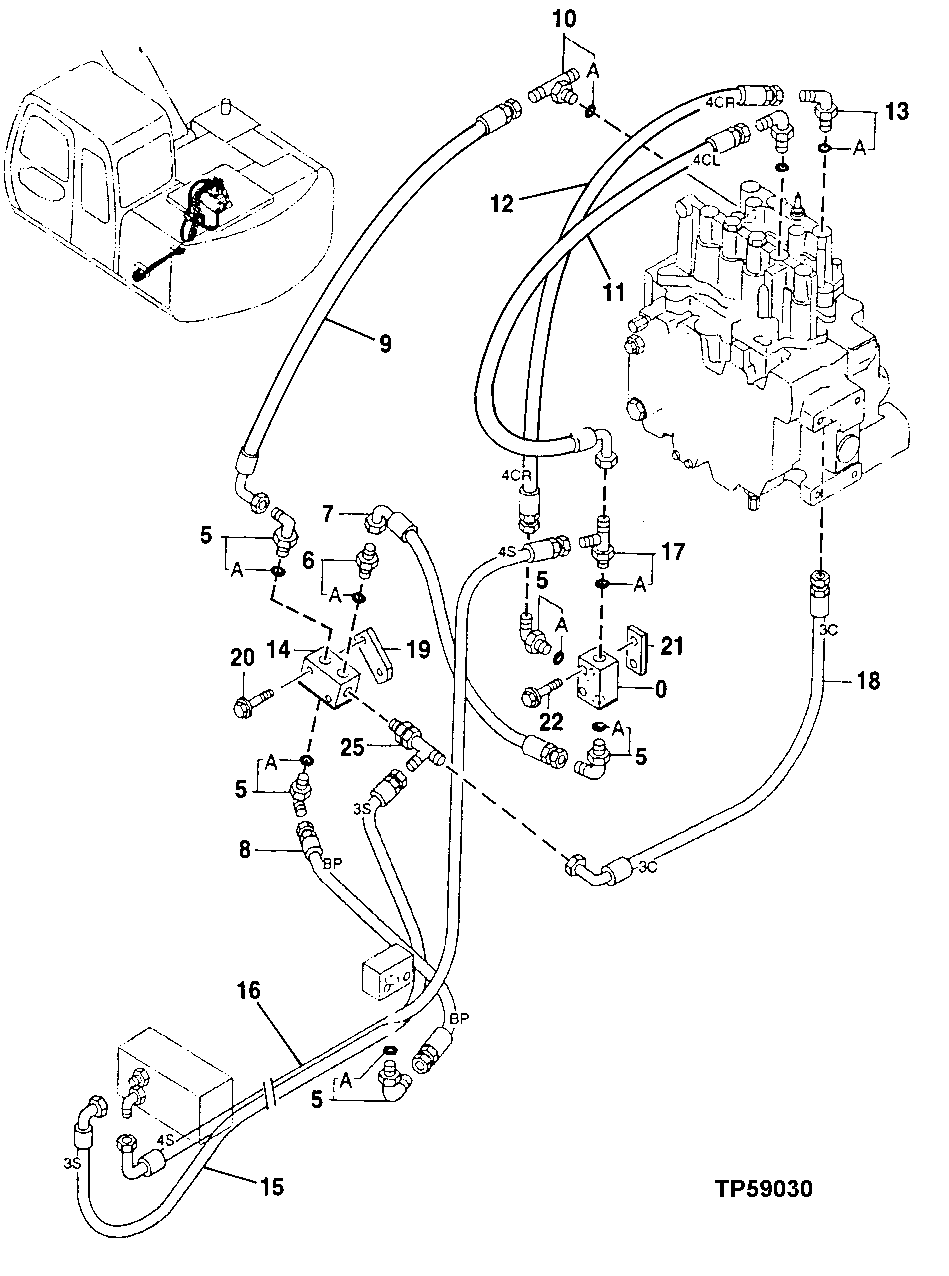

Запчасти John Deere 10 315 - BLADE PILOT FLOW CONTROL HYDRAULIC VALVE AND HOSES 3401 Blade

0

4203447

Flow Control Hyd. Valve

Shuttle SUB FOR AT126357

1шт.

5

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

5шт.

5A

M800650

Packing

1шт.

6

4200467

Adapter Fitting

SUB FOR TH108417

1шт.

6A

M800650

Packing

1шт.

7

AP34894

Hydraulic Hose

1шт.

8

4375673

Hydraulic Hose

SUB FOR AP34912

1шт.

9

AP34938

Hydraulic Hose

1шт.

10

4208911

Tee Fitting

SUB FOR AT126456

1шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

AP34936

Hydraulic Hose

1шт.

12

AP34937

Hydraulic Hose

1шт.

13

4208913

Adapter Fitting

SUB FOR AT126458

2шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

4203446

Flow Control Hyd. Valve

SUB FOR AT126356

1шт.

15

AP34918

Hydraulic Hose

Fabricate

1шт.

16

AP34919

Hydraulic Hose

1шт.

17

4207300

Tee Fitting

SUB FOR AT126381

1шт.

17A

M800650

Packing

1шт.

18

AP34917

Hydraulic Hose

1шт.

19

4375639

Retainer

SUB FOR P64915

1шт.

20

19M7184

Cap Screw

M8 X 55

2шт.

Washer

12M7065 NLA

2шт.

21

4375638

Retainer

SUB FOR P64914

1шт.

22

19M7184

Cap Screw

M8 X 55

2шт.

Washer

12M7065 NLA

2шт.

25

4246672

Tee Fitting

SUB FOR AT200991

1шт.
