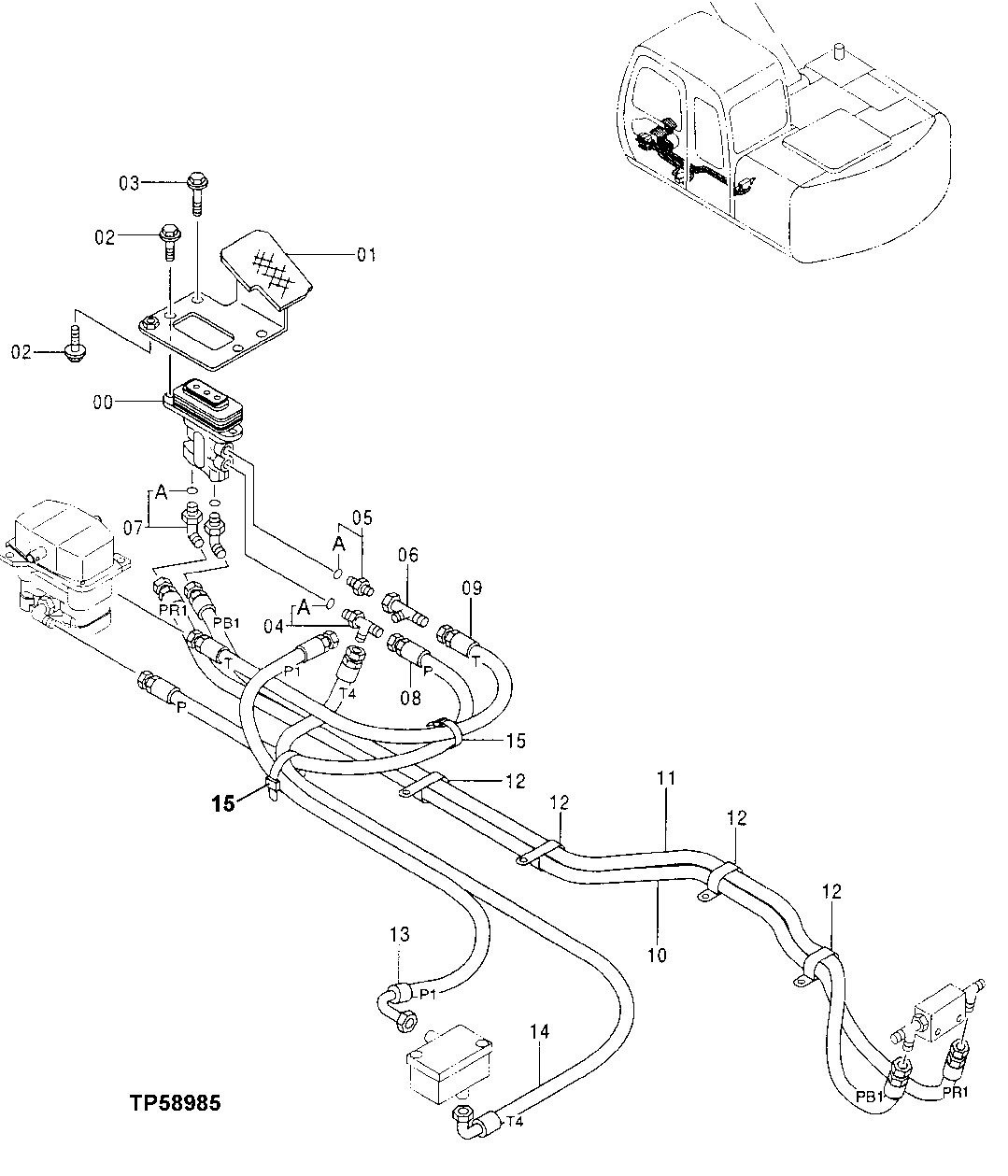

Запчасти John Deere 10 313 - BLADE PILOT FLOW CONTROL HYDRAULIC VALVE AND HOSES 3401 Blade

0

4330467

Flow Control Hyd. Valve

Pilot (SUB FOR AP34893)

1шт.

1

8068031

Bracket

(SUB FOR AP34960)

1шт.

2

19M7662

Cap Screw

M10 X 30

3шт.

12M7066

Lock Washer

10 mm

3шт.

3

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

4

4207300

Tee Fitting

(SUB FOR AT126381)

1шт.

4A

M800650

Packing

1шт.

5

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

5A

M800650

Packing

1шт.

6

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

7

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

7A

M800650

Packing

1шт.

8

AP34901

Hydraulic Hose

1шт.

9

AP34902

Hydraulic Hose

1шт.

10

AP34913

Hydraulic Hose

1шт.

11

AP34914

Hydraulic Hose

1шт.

12

T32854

Clamp

4шт.

13

AP34903

Hydraulic Hose

1шт.

14

AP34904

Hydraulic Hose

1шт.

15

H77698

Tie Band

2шт.
