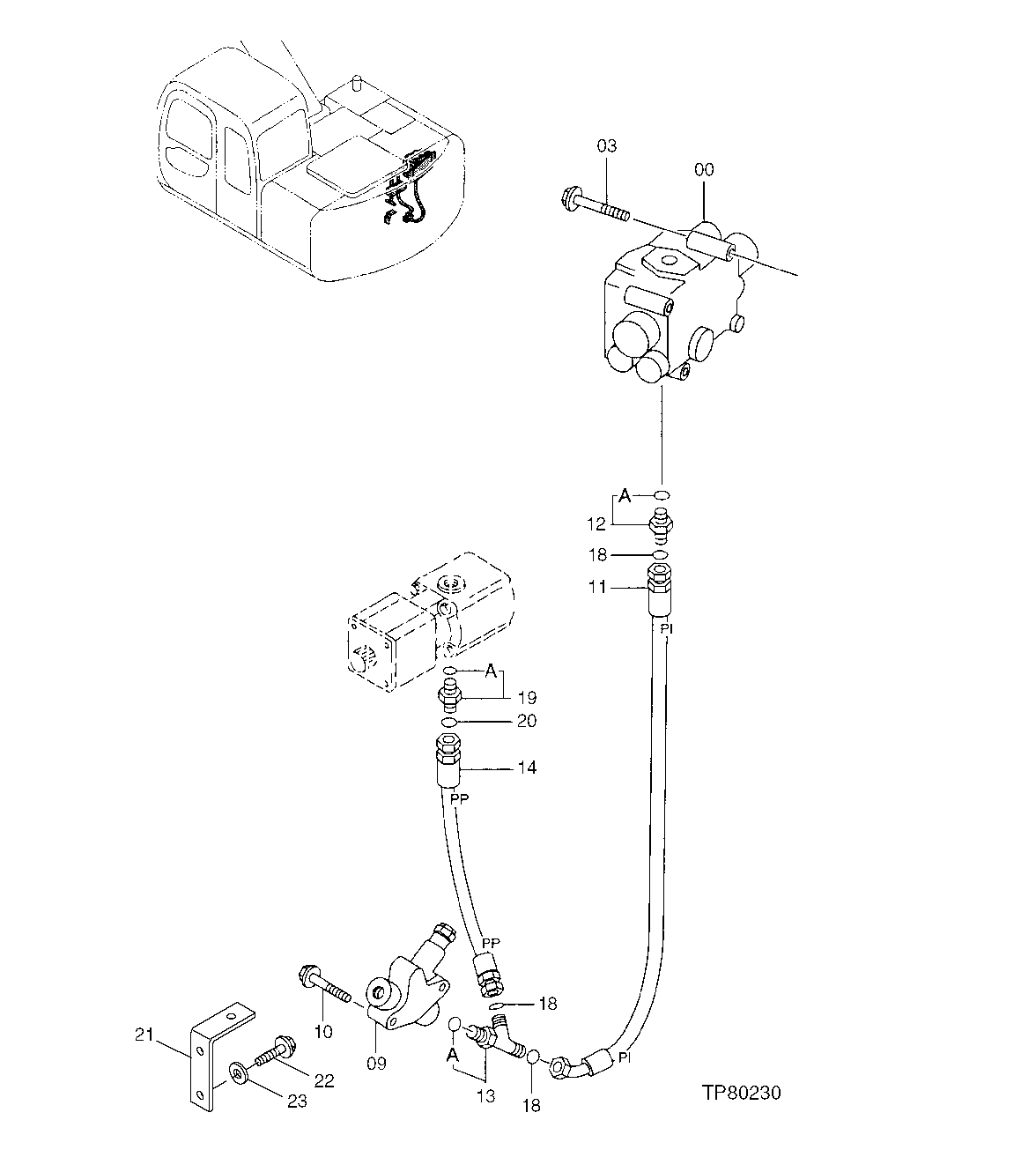

Запчасти John Deere 10 311 - MAIN HOSES (BLADE CONTROL VALVE) 3401 Blade

0

4361117

Hyd Actuated Control Valve

Blade SUB FOR AP34897

1шт.

3

19M8183

Cap Screw

M10 X 90

3шт.

12M7066

Lock Washer

10 mm

3шт.

9

4342051

Flow Control Hyd. Valve

SUB FOR AP34895

1шт.

10

19M8397

Cap Screw

M8 X 50 SUB FOR AT213602 OR J0208 50; ALSO ORDER 12M7065 AND 24M7055

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

11

AP35209

Hydraulic Hose

1шт.

12

4189602

Fitting

SUB FOR TH108350

1шт.

12A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

13

4205383

Tee Fitting

SUB FOR AT134051

1шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

14

Hydraulic Hose - Fabricate

AP35207 NA

1шт.

18

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

3шт.

19

Adapter Fitting

TH108350 NA

1шт.

19A

O-Ring

U46489 NA

1шт.

20

O-Ring

AP35207 NA

1шт.

21

P61071

Bracket

1шт.

22

19M7550

Cap Screw

M10 X 35

2шт.

23

24H1436

Washer

15/16" X 1-3/4" X 0.134"

2шт.
