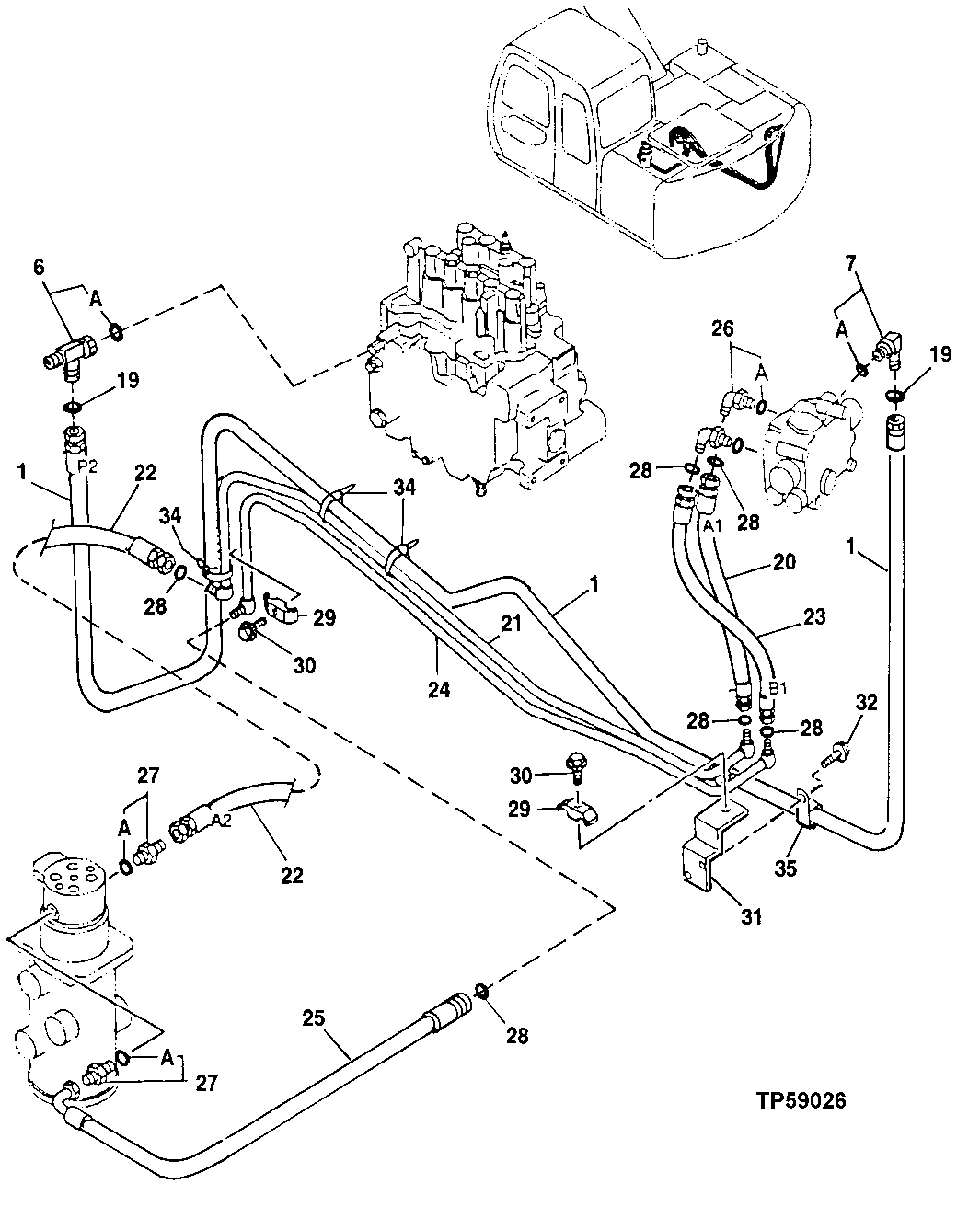

Запчасти John Deere 10 310 - ROTARY MANIFOLD JOINT BLADE HOSES 3401 Blade

1

AP35202

Hydraulic Hose

Fabricate

1шт.

6

4157562

Elbow Fitting

SUB FOR TH109540

1шт.

6A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

7

4218070

Tee Fitting

SUB FOR AT200408

1шт.

7A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

19

T77858

O-Ring

2шт.

20

AP35201

Hydraulic Hose

1шт.

21

AP35049

Oil Tube

1шт.

22

AP35540

Hydraulic Hose

1шт.

23

AP35203

Hydraulic Hose

1шт.

24

AP35048

Oil Tube

1шт.

25

AP35845

Hydraulic Hose

SUB FOR AP35539

1шт.

26

A853344

Elbow Fitting

SUB FOR 4200580 AND TH108401

2шт.

26A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

27

4189602

Fitting

SUB FOR TH108350

2шт.

27A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

28

T77857

O-Ring

8шт.

29

4189858

Clamp

SUB FOR TH108333

2шт.

30

19M7362

Cap Screw

M12 X 55

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

31

9746961

Bracket

SUB FOR AP34951

1шт.

32

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

34

H77698

Tie Band

3шт.

35

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

1шт.
