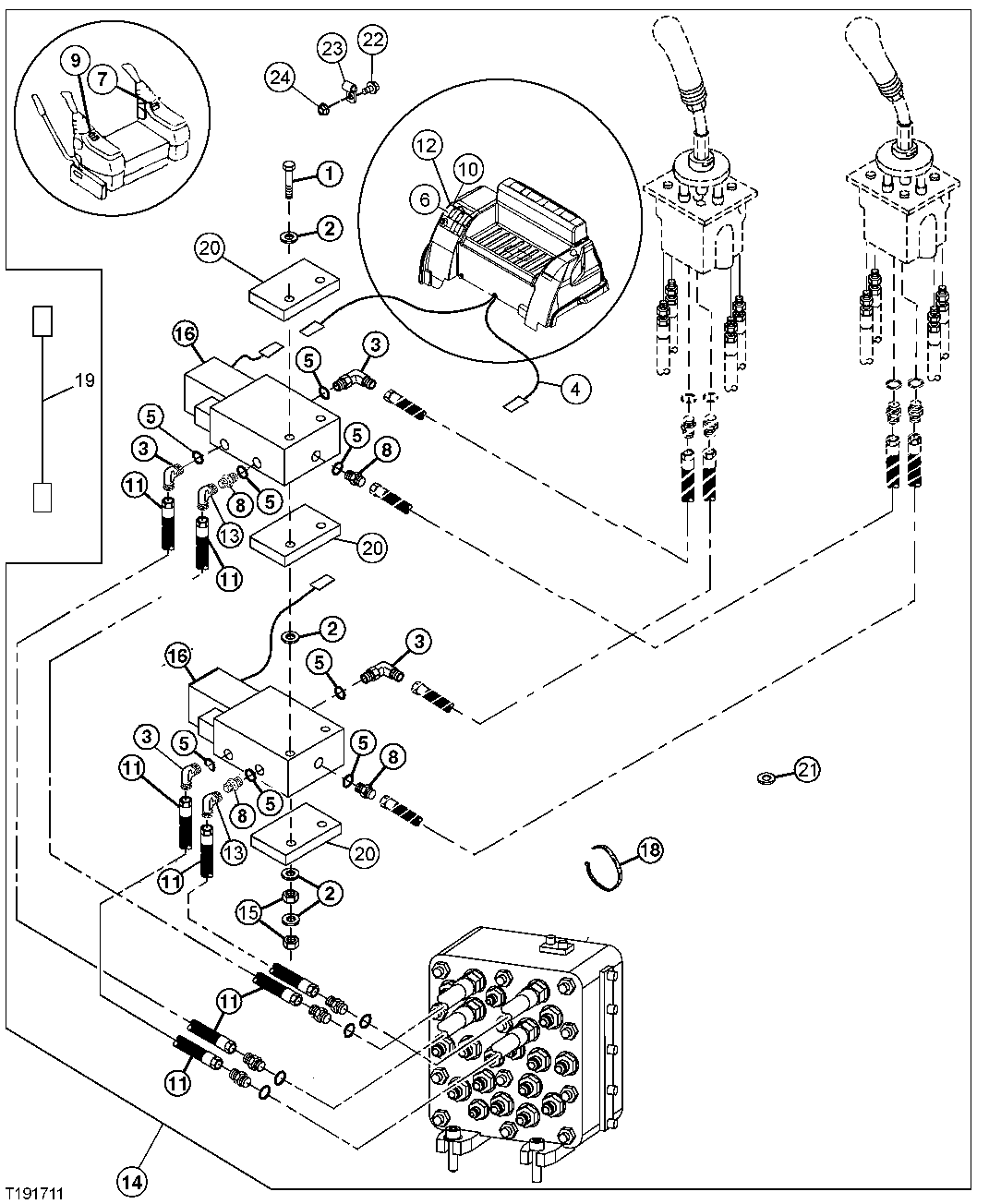

Запчасти John Deere 10 307 - Pattern Changer 3360 Hydraulic System

1

19M8332

Cap Screw

M6 X 90

2шт.

2

24M7100

Washer

6.600 X 22 X 2 mm

10шт.

3

AT35121

Elbow Fitting

37 DEG FLARE O-RING

4шт.

4

AT307710

Wiring Harness

(SUB FOR AT190535)

1шт.

5

R26448

O-Ring

8шт.

6

AT83721

Toggle/Rocker Switch

Locking

1шт.

7

T159843

Label

Control Right

4шт.

8

R27212

Fitting

4шт.

9

T159844

Label

Control Left

1шт.

10

T184858

Label

Control Pattern

1шт.

11

AT71082

Hydraulic Hose

4шт.

12

37H43

Screw

Drive Self Tapping

2шт.

13

AE24616

Elbow Fitting

2шт.

14

Kit

(WHOLEGOODS) ( AT307709 NLA) (SUB FOR AT191397)

1шт.

15

14M7272

Nut

M6

4шт.

16

AT306723

Elec.Proportional Valve

Pin Disconnect (SUB FOR AT116486 AND AT140041)

2шт.

Electrical Coil

( AT140041 NLA)

1шт.

18

R44302

Tie Band

ARшт.

19

AT304407

Wiring Harness

Extension (SUB FOR AT197367)

1шт.

20

T202379

Bracket

3шт.

21

T63817

Grommet

1шт.

22

19M7863

Screw

M6 X 25

3шт.

23

T22645

Clip

4шт.

24

14M7272

Nut

M6

3шт.

25

AR94101

Diode

Not Illustrated

1шт.
