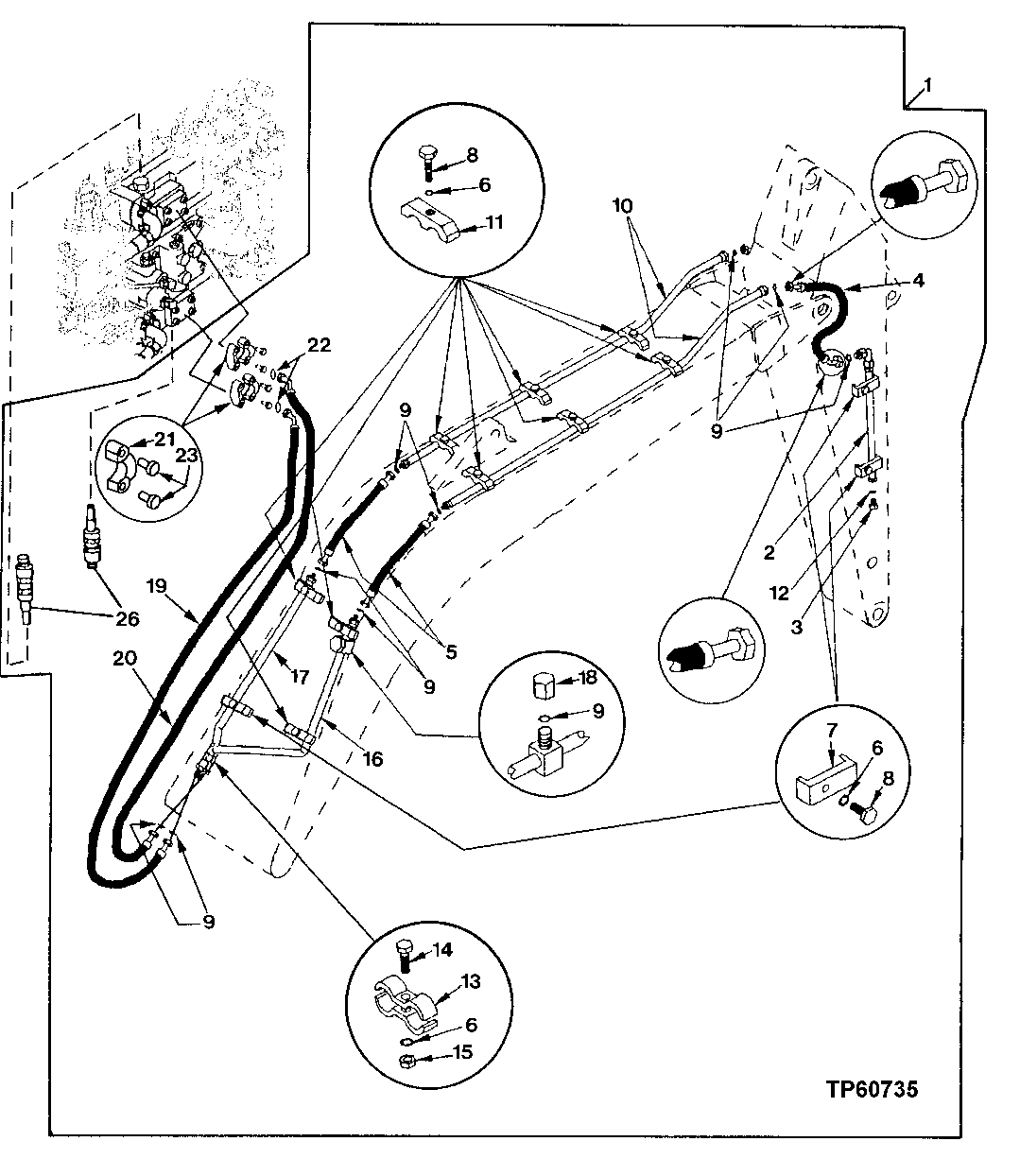

Запчасти John Deere 10 306 - Auxiliary Hydraulic Hoses/Tubes 3360 Hydraulic System

1

Kit

(WHOLEGOODS) ( AT183004 NLA)

1шт.

2

AT160177

Oil Tube

2шт.

3

38H1150

Fitting Plug

2шт.

4

AT147203

Hydraulic Hose

Fabricate

2шт.

5

AT160161

Hydraulic Hose

Fabricate

2шт.

6

12H301

Lock Washer

1/2"

15шт.

7

4190126

Clamp

(SUB FOR TH109830)

5шт.

8

19M7363

Cap Screw

M12 X 60

14шт.

9

T77858

O-Ring

11шт.

10

AP35000

Oil Tube

2шт.

11

4141806

Clamp

(SUB FOR TH100968)

9шт.

12

T76938

O-Ring

2шт.

13

4202103

Clamp

(SUB FOR TH108302)

2шт.

14

19M7361

Cap Screw

M12 X 50

1шт.

15

14M7275

Nut

M12

1шт.

16

AP33323

Pipe

1шт.

17

AP33324

Pipe

1шт.

18

38H1418

Fitting

1шт.

19

AP33343

Hydraulic Hose

Fabricate

1шт.

20

AP33342

Hose

1шт.

21

R29424

Flange Fitting

4шт.

22

T59014

O-Ring

2шт.

23

Screw

(USE EXISTING 19M8337 CAPSCREWS)

8шт.

26

9200504

Pressure Relief Valve

(SUB FOR AT155692 OR 4261539)

2шт.
