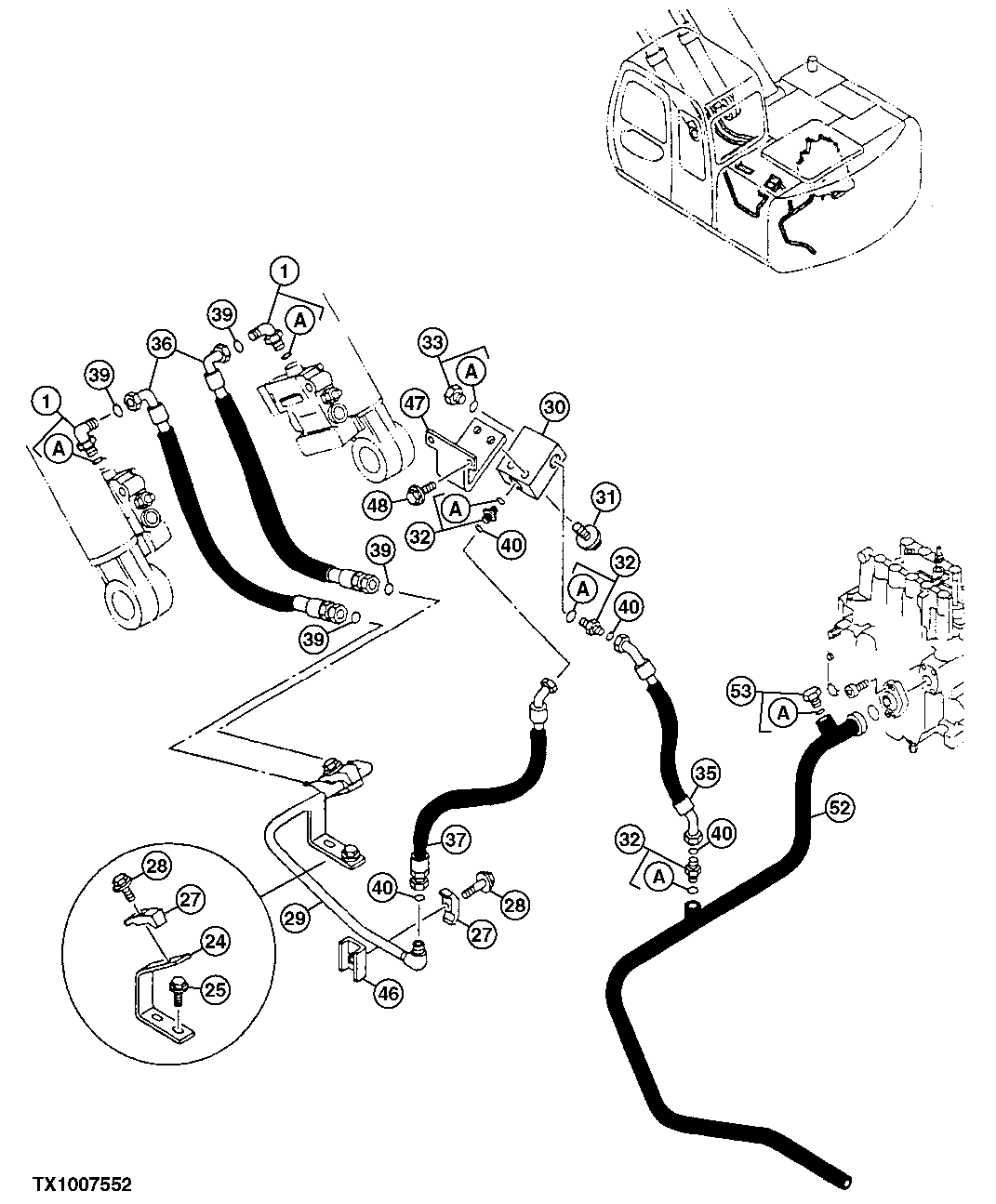

Запчасти John Deere 10 304 - Flow Control, Hydraulic Valve 3360 Hydraulic System

1

4217341

Elbow Fitting

(SUB FOR AT126684)

2шт.

1A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

24

9739018

Support

(SUB FOR AT172351)

1шт.

25

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

27

4190125

Clamp

(SUB FOR TH108960)

2шт.

28

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

29

8059789

Line

(SUB FOR AT172352)

1шт.

30

3060670

Manifold

(SUB FOR AT172353)

1шт.

31

19M7493

Cap Screw

M12 X 40

2шт.

12H301

Lock Washer

1/2"

2шт.

32

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

3шт.

32A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

33

4174542

Drain Plug

(SUB FOR TH110478)

1шт.

33A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

35

AT184147

Hydraulic Hose

1шт.

36

AT172354

Hydraulic Hose

2шт.

37

AT179152

Hydraulic Hose

1шт.

39

T77857

O-Ring

4шт.

40

T77858

O-Ring

4шт.

46

9735916

Channel

(SUB FOR AT157648)

1шт.

47

8064822

Bracket

(SUB FOR AT179156)

1шт.

48

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

52

7031050

Line

(SUB FOR AT179157)

1шт.

53

4174542

Drain Plug

(SUB FOR TH110478)

1шт.

53A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

60

Kit

( AT184144 NLA) Load Lowering Not Illustrated Includes All Componen ts On This Page and Previous Pages

1шт.
