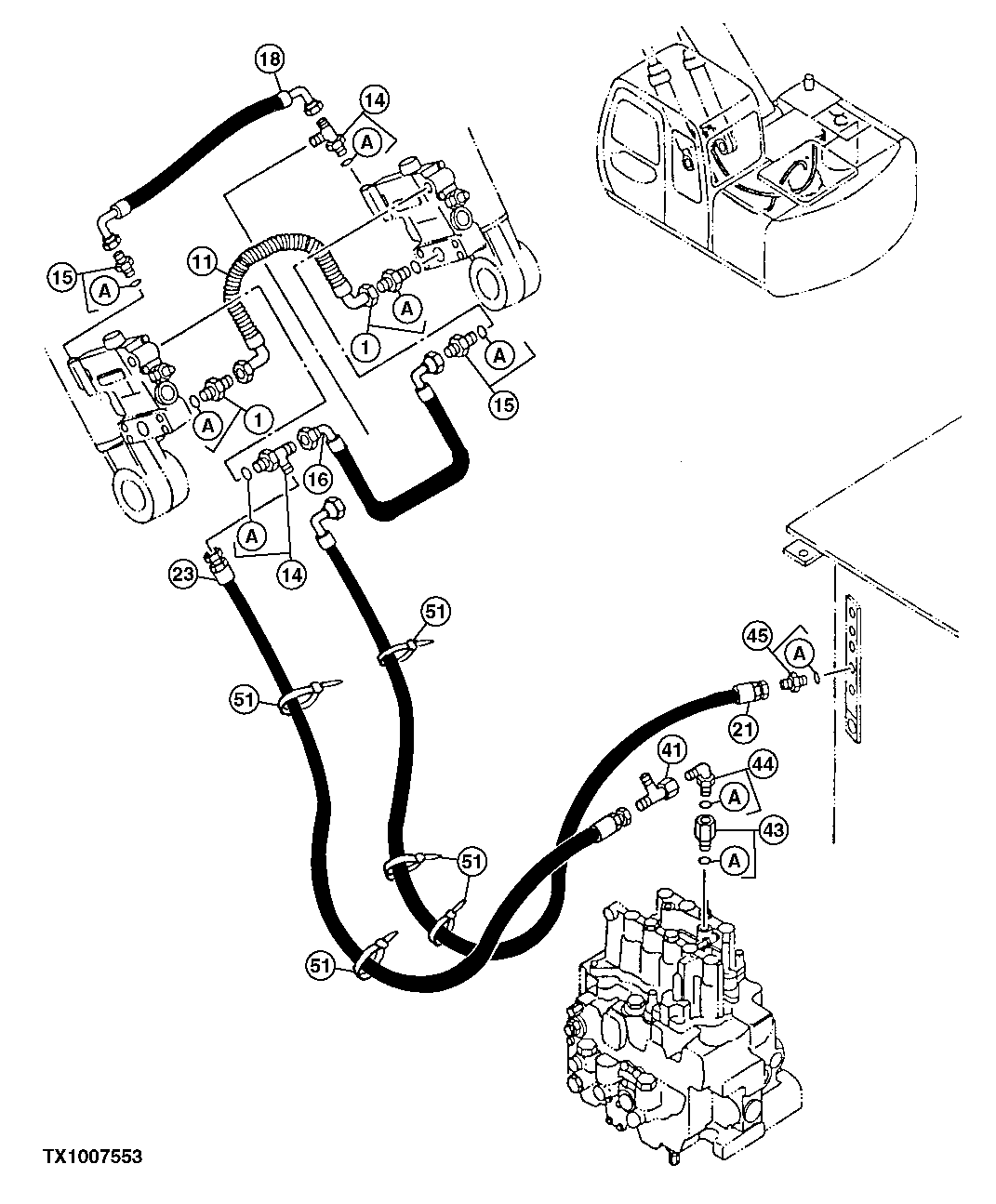

Запчасти John Deere 10 303 - Flow Control, Hydraulic Valve 3360 Hydraulic System

1

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

1A

M800650

Packing

1шт.

11

AT172345

Hydraulic Hose

1шт.

14

4205363

Tee Fitting

SUB FOR AT126362

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

AT172346

Hydraulic Hose

1шт.

18

AT172348

Hydraulic Hose

1шт.

21

AT179149

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

3шт.

23

AT179150

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

3шт.

41

4246672

Tee Fitting

SUB FOR AT200991

1шт.

43

4202564

Adapter Fitting

SUB FOR AT179155, SUB FOR AT215879

1шт.

43A

M800650

Packing

1шт.

44

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

1шт.

44A

M800650

Packing

1шт.

45

4261938

Fitting

SUB FOR AT154285

1шт.

45A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

51

H77698

Tie Band

5шт.

60

Kit

AT184144 NLA Load Lowering Not Illus trated Includes All Components On This Page and Previous and Following Pages

1шт.
