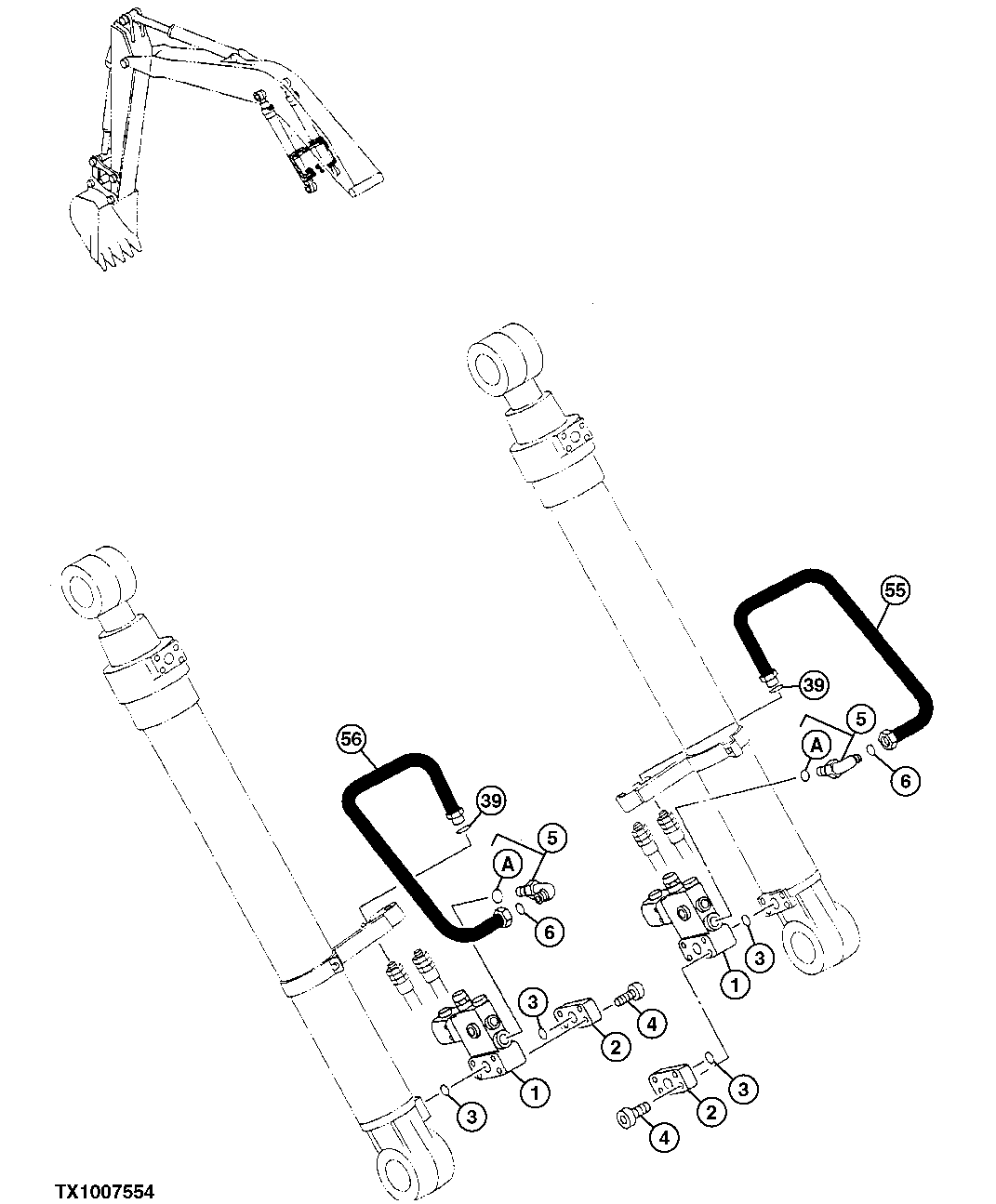

Запчасти John Deere 10 302 - Flow Control, Hydraulic Valve 3360 Hydraulic System

1

4345286

Flow Control Hyd. Valve

(SUB FOR AT179148)

2шт.

2

4293167

Flange

(SUB FOR AT172336)

2шт.

3

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") (SUB FOR TH101300)

4шт.

4

M341095

Bolt

(SUB FOR AT172341)

8шт.

5

4322739

Elbow Fitting

(SUB FOR AT172342)

2шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

6

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

39

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

55

8062343

Line

(SUB FOR AT172343)

1шт.

56

8062344

Line

(SUB FOR AT172344)

1шт.

60

Kit

( AT184144 NLA) Load Lowering Not Illustr ated Contains All Items On This Page - Add itional Components Listed On Separate Page s

1шт.
