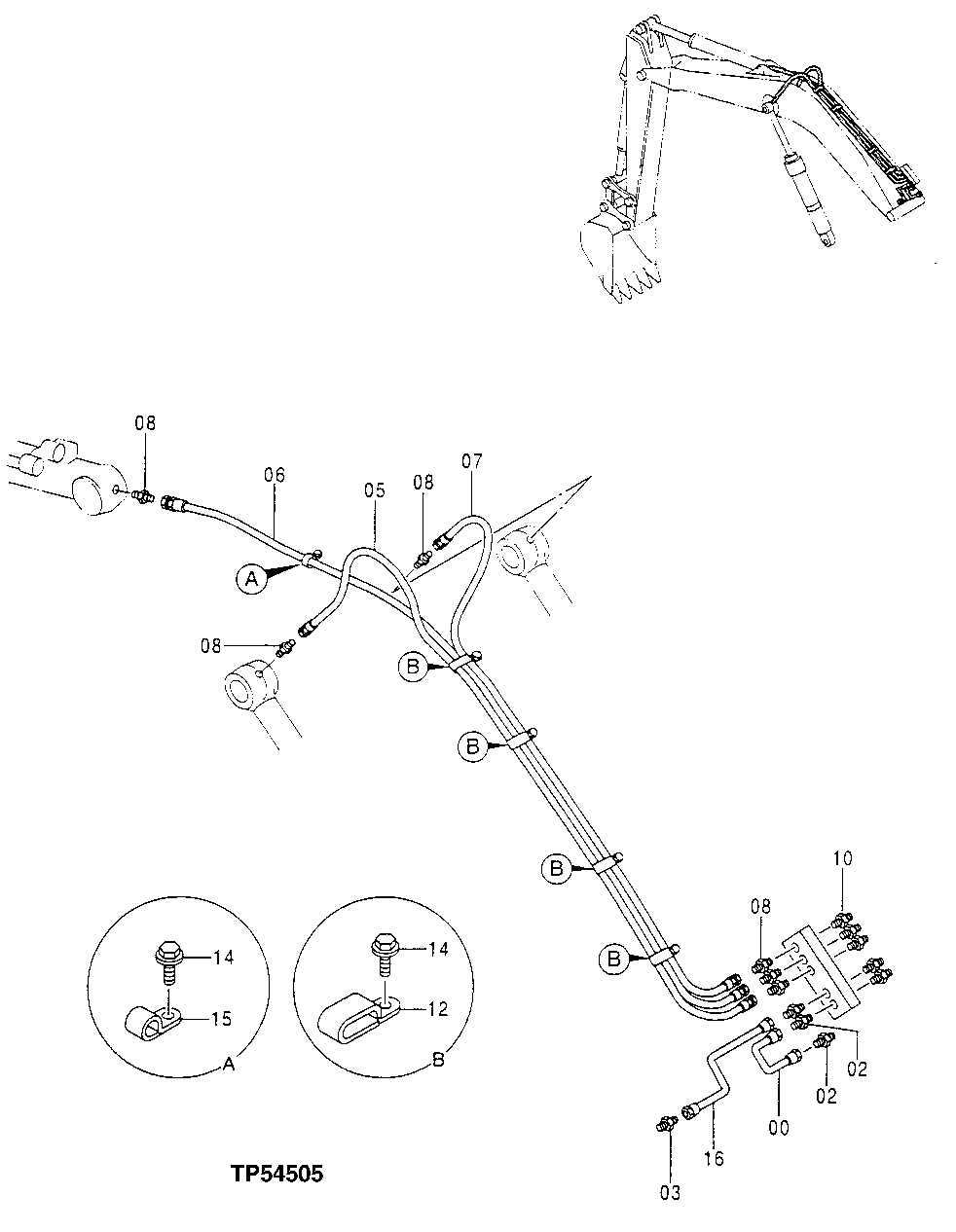

Запчасти John Deere 10 294 - Boom Lubricate Lines (Standard) 3360 Hydraulic System

0

4361021

Oil Line

(SUB FOR AT176254)

1шт.

2

4360981

Adapter Fitting

(SUB FOR AT176256)

2шт.

3

4345297

Elbow Fitting

(SUB FOR AT176258)

2шт.

5

4260314

Hydraulic Hose

(SUB FOR AT132503)

1шт.

6

P63478

Hydraulic Hose

1шт.

7

P63480

Hydraulic Hose

1шт.

8

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 OR TH100963)

6шт.

10

JD7769

Lubrication Fitting

5шт.

12

T152608

Clamp

(SUB FOR AT154207)

4шт.

14

19M8324

Cap Screw

M10 X 16

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

15

4190261

Clip

(SUB FOR TH109649)

1шт.

16

4370492

Line

(SUB FOR P63321)

1шт.
