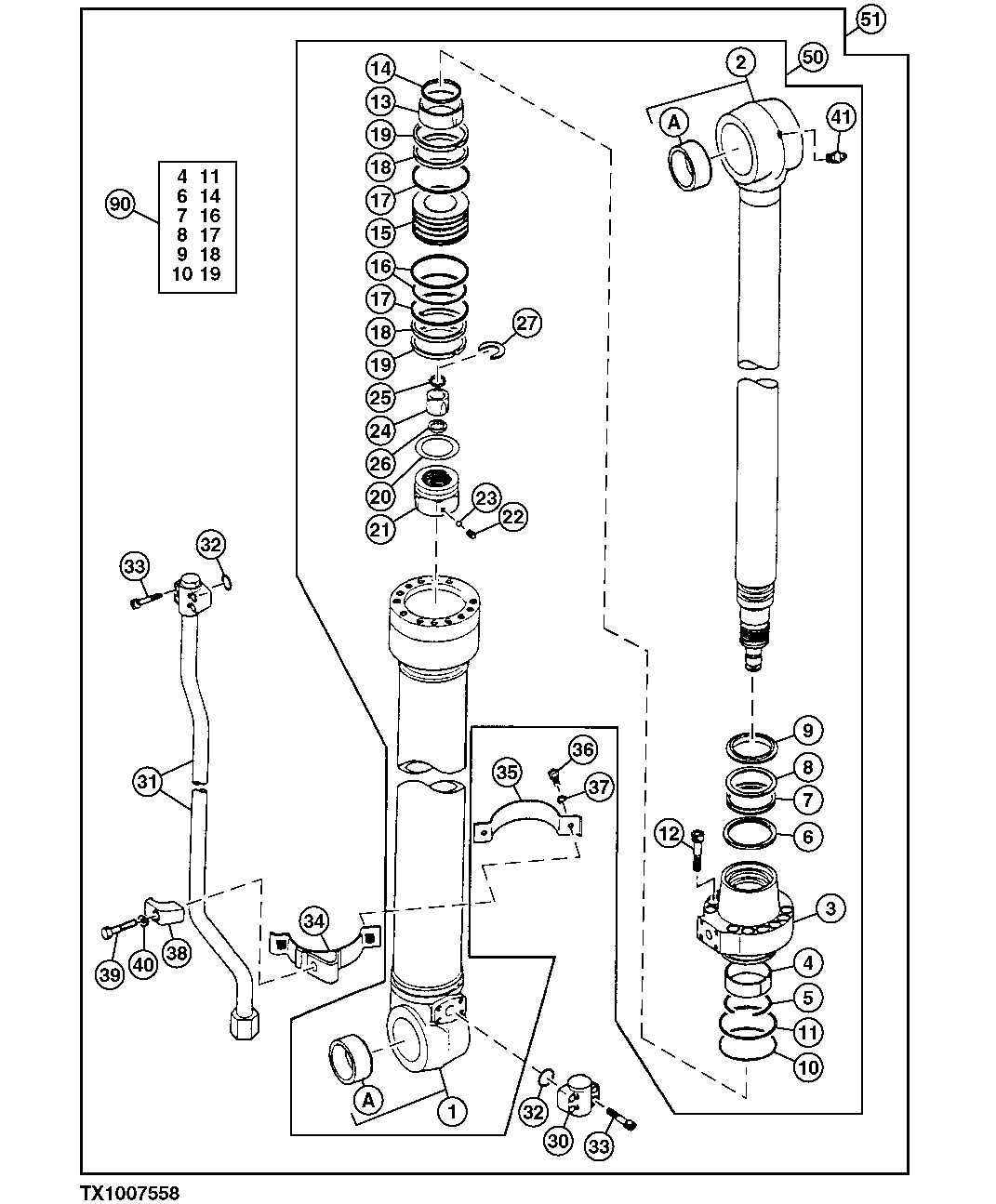

Запчасти John Deere 10 292 - Arm Cylinder 3360 Hydraulic System

1

Hydraulic Cylinder Barrel

NSEP

1шт.

1A

H158234

Bushing

1шт.

2

AH152926

Hydraulic Cylinder Rod

1шт.

2A

H158234

Bushing

1шт.

3

H158027

Hydr. Cylinder Rod Guide

1шт.

4

TH109311

Wear Ring

1шт.

5

TH109312

Snap Ring

SUB FOR 0240904

1шт.

6

AH148777

Ring

1шт.

7

0240911

Packing

SUB FOR TH109314 OR 4S00189

1шт.

8

0240912

Back-Up Ring

SUB FOR TH109315 OR 4S00190

1шт.

9

H155867

Seal

1шт.

10

AT264319

O-Ring

99.400 X 3.100 mm (3.913" X 0.122") SUB FOR T110447

1шт.

11

TH109318

Back-Up Ring

1шт.

12

19M8930

Screw

M14 X 65

12шт.

13

H158461

Seal

1шт.

14

H157238

Seal

1шт.

15

H158463

Piston

1шт.

16

AT264387

Ring

SUB FOR TH109322

1шт.

17

AT153919

Back-Up Ring

100 X 105 X 2.500 mm (3- 15/16" X 4.134" X 0.098")

2шт.

18

H158459

Scraper Ring

2шт.

19

AT264388

Ring

SUB FOR TH109324, 0310510 AND 4S00155

2шт.

20

H159695

Snap Ring

1шт.

21

H158465

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

7.145 mm (9/32")

1шт.

24

AT153939

Bearing

SUB FOR 0409012

1шт.

25

TH100374

Seal

4шт.

26

AT153941

Stop

SUB FOR 0409014

2шт.

27

H159707

Ring

1шт.

30

Universal Joint

0409016 NLA, SUB FOR AT153943

1шт.

0796601

Universal Joint

ALSO ORDER A853166, 19M7662 AND 12M7033

1шт.

31

AH152927

Oil Line

1шт.

32

AT264360

O-Ring

SUB FOR TH104930 OR 4506430

2шт.

33

19M8213

Screw

M10 X 50

8шт.

34

AHC10166

Clamp

SUB FOR AH152929

1шт.

35

H159705

Band

1шт.

36

19M7550

Cap Screw

M10 X 35

2шт.

37

12M7066

Lock Washer

10 mm

2шт.

38

H238070

Clamp

SUB FOR T108036

1шт.

39

19M7362

Cap Screw

M12 X 55

1шт.

40

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

41

TH100074

Lubrication Fitting

1шт.

42

A853166

Adapter Fitting

Not Illustrated

1шт.

43

19M7662

Cap Screw

M10 X 30 Not Illustrated

4шт.

44

12M7066

Lock Washer

10 mm Not Illustrated

4шт.

50

Hydraulic Cylinder

AH154886 NLA, SUB AH152130

1шт.

51

AH152130

Hydraulic Cylinder

1шт.

AH152917

Hydraulic Cylinder Kit

1шт.
